Parking Brake Control: Service and Repair

Removal





1. Note: Make sure the parking brake control is fully released. Relieve the tension on the parking brake system.

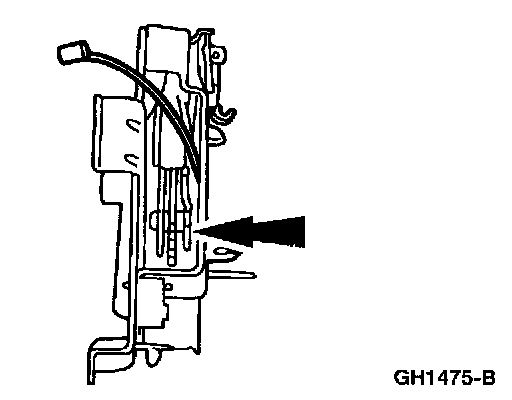

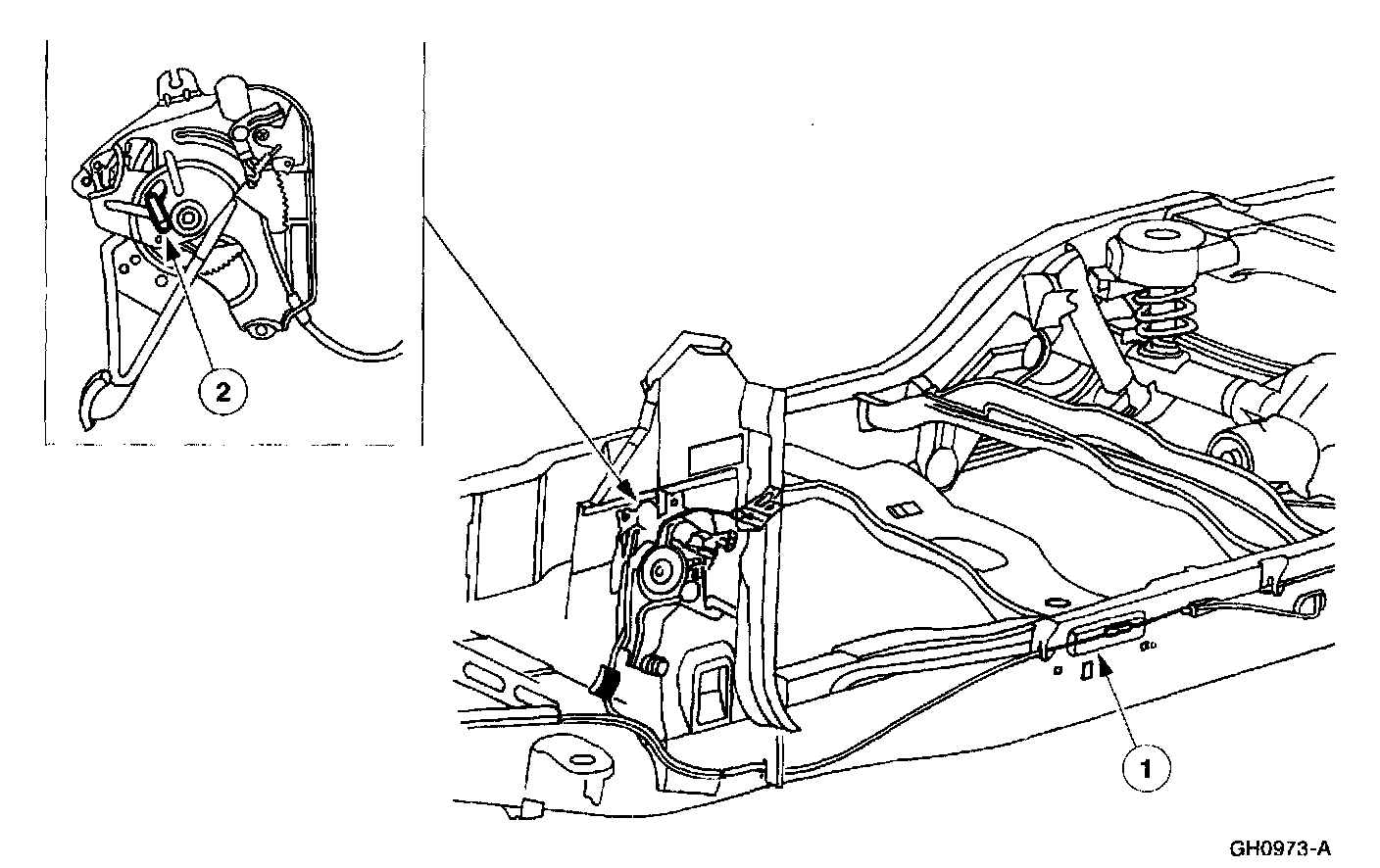

1. Pull the front parking brake cable and conduit.
2. Insert a suitable retainer.





2. Remove the front door scuff plate.





3. Remove the cowl side trim panel.





4. Pull to release the three clips and remove the instrument panel steering column cover.
5. Remove the parking brake automatic release motor, if so equipped.





6. Remove the parking brake remote release lever screws.





7. Unhook the remote release lever from the parking brake control.

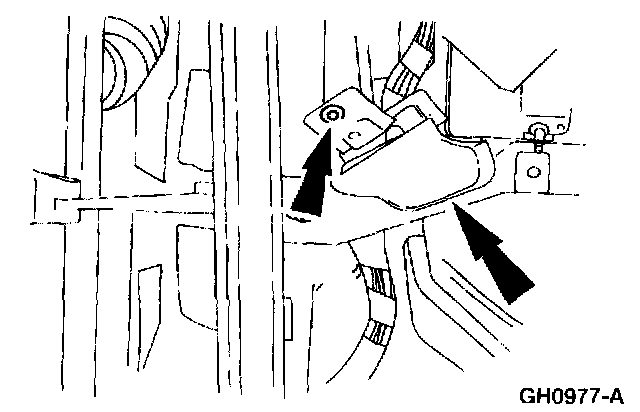

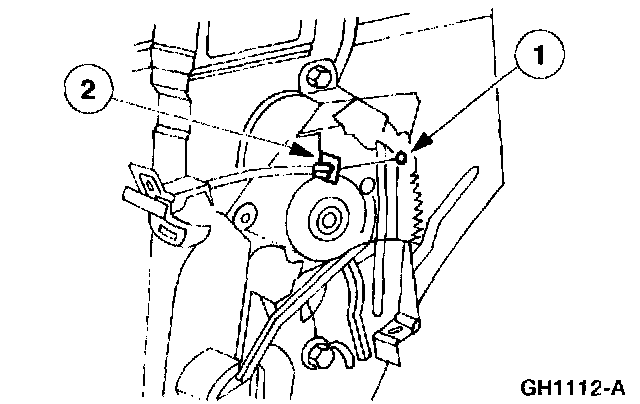

1. Unhook the cable.
2. Remove the conduit from the clip.





8. Separate the parking brake control from the cowl panel.
1. Remove the bolts.
2. Disconnect the parking brake signal switch connector.
3. Separate the parking brake control from the cowl panel.





9. Disconnect the front parking brake cable and conduit from the parking brake control.





10. Remove the parking brake control.

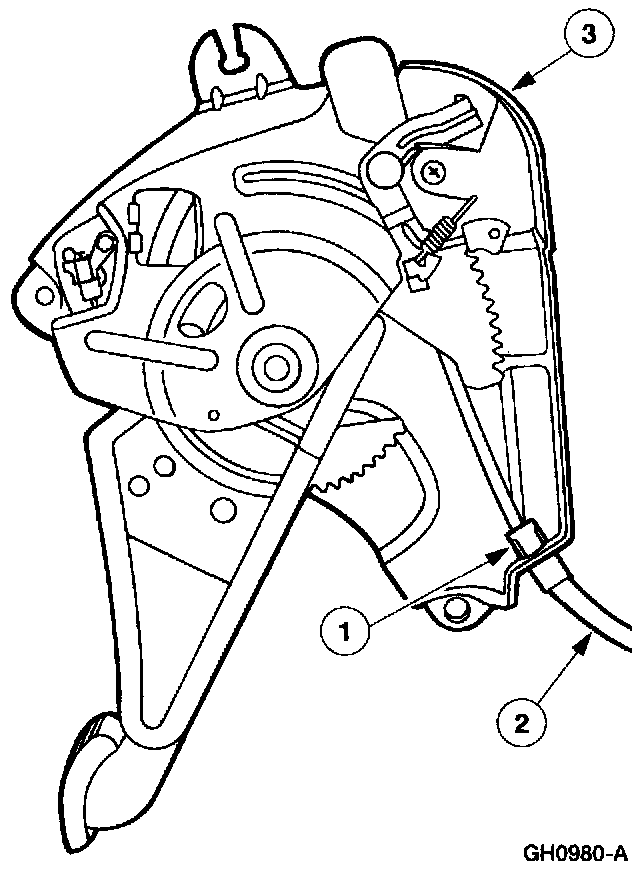

1. Compress the connector; release the front parking brake cable and conduit.
2. Remove the front parking brake cable and conduit.
3. Remove the parking brake control.

Installation

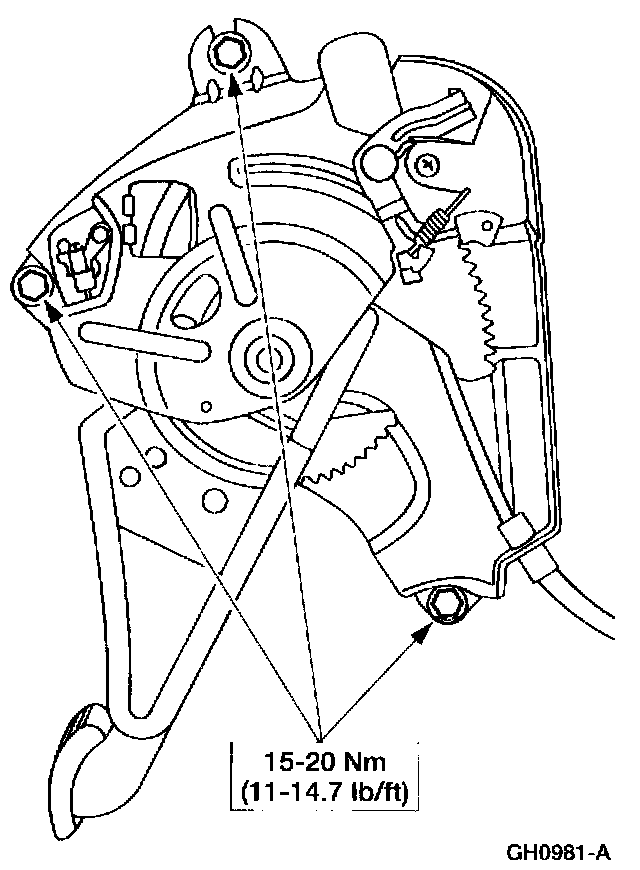

1. Follow the removal procedure in reverse order.
