Liftgate Trim Panel

REMOVAL

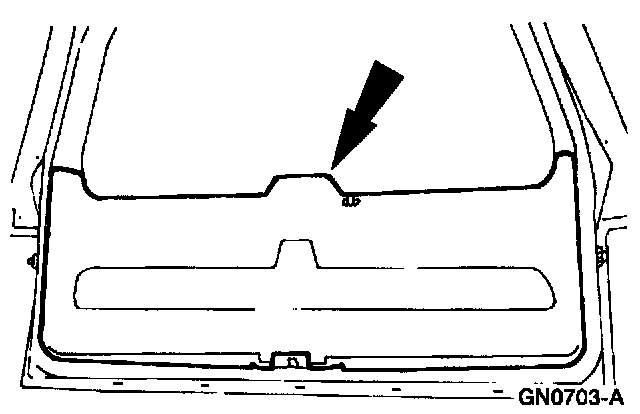

1. Remove the upper liftgate trim panel.







2. Remove the liftgate assist strap.
1 Remove the screws.
2 Remove the liftgate assist strap.

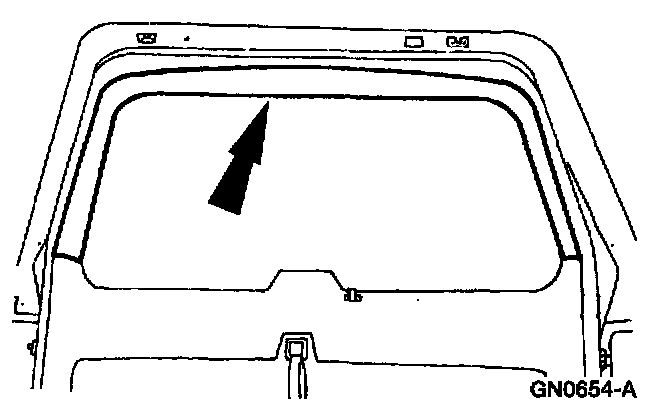

3. Remove the lower liftgate trim panel.

INSTALLATION






1. To install, reverse the removal procedure.
