Ford Truck
>>
2000
>>
Expedition 4WD V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Power window Switch
>>
Right Front
Right Front

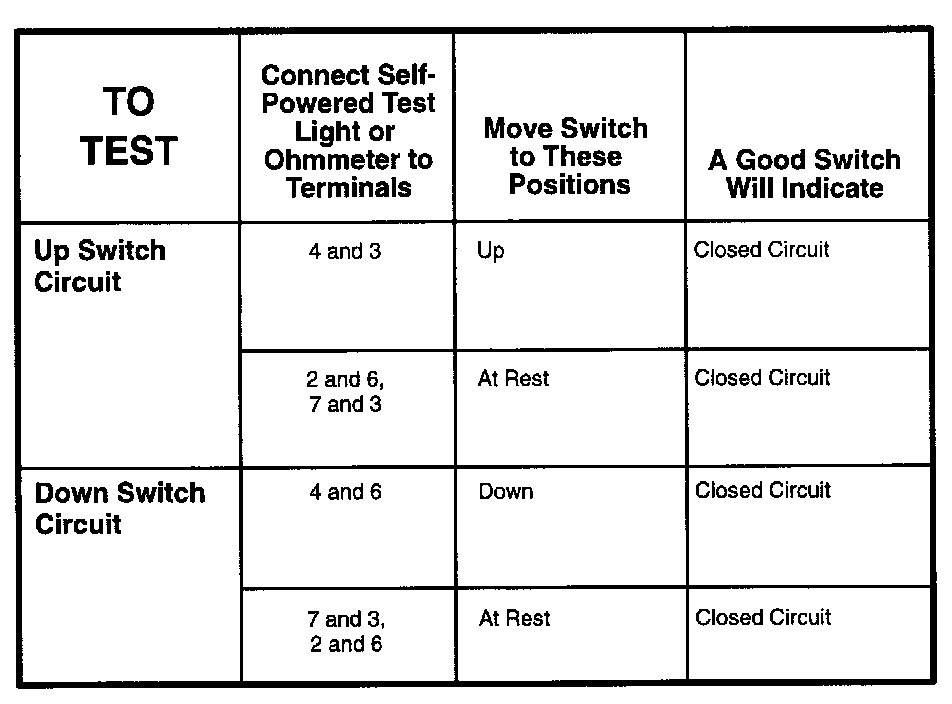

Component Testing Procedure:

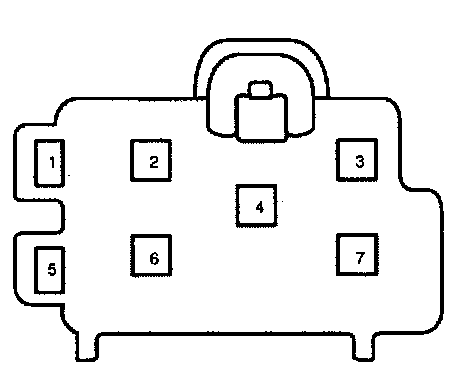

Terminals:

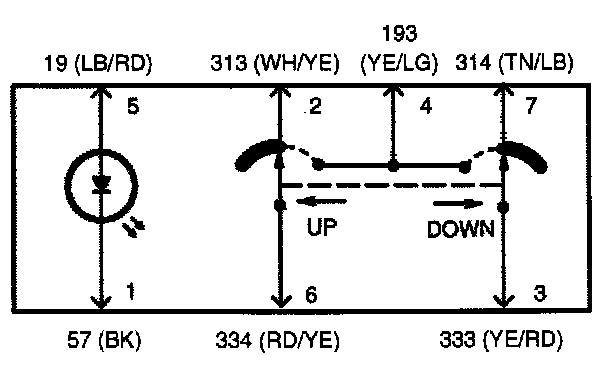

Schematic:
