Wheel Stud / Lug Nut

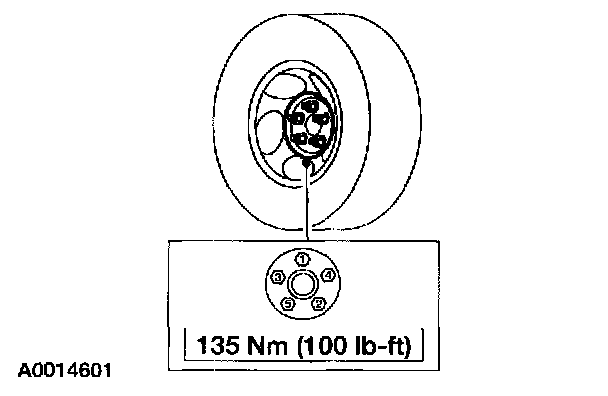

Vehicles with 12 mm wheel bolts
Tighten the wheel nuts in sequence to 135 Nm (100 ft. lbs.).

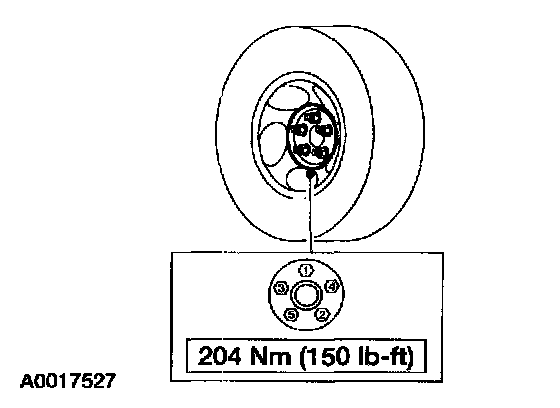

Vehicles with 14 mm wheel bolts
Tighten the wheel nuts in sequence to 204 Nm (150 ft. lbs.).


CAUTION: Failure to tighten the wheel nuts in a star pattern can result in high brake disc runout, which will speed up the development of brake roughness, shudder and vibration.
