Leak Detection Valve: Service and Repair

REMOVAL
1. Remove the evaporative emission canister.

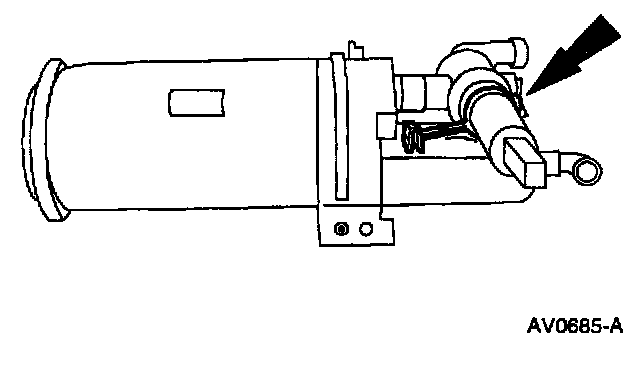

2. If required, remove the retainer.
^ Slide the retainer off the bracket.

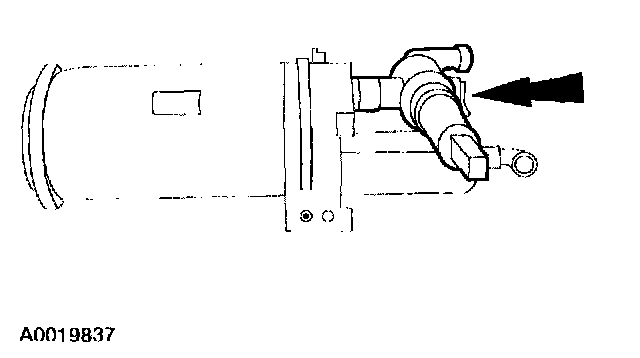

3. Remove the evaporative emission canister vent solenoid.

NOTE:
^ Inspect and replace the O-ring seal as necessary.
^ A twisting and pulling motion is required to remove the canister vent solenoid.

INSTALLATION
1. To install, reverse the removal procedure.
^ Carry out the evaporative emission system leak test. For additional information, refer to Evaporative Emission System Leak Test. Component Tests and General Diagnostics
^ Carry out the evaporative emission repair verification drive cycle. For additional information, refer to Evaporative Emission Repair Verification Drive Cycle. Service and Repair

NOTE: Lubricate O-ring seals with MEPOL(R) O-ring Seal Lubricant or equivalent meeting Ford specification ESE-M99B144-B.
