Drive Belt: Service and Repair

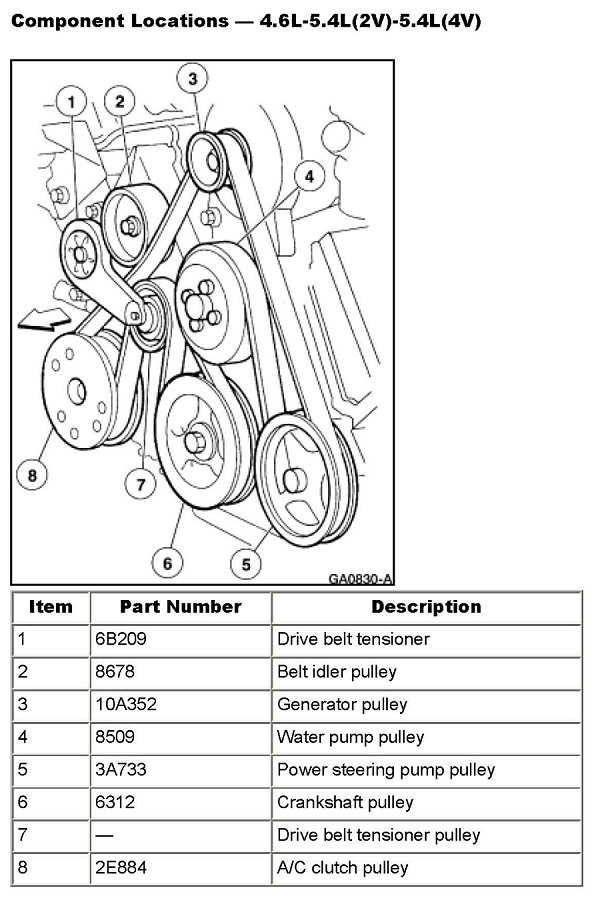

Accessory Drive

Removal

4.6L, 5.4L(2V), 5.4L(4V):

1. Rotate the drive belt tensioner clockwise and remove the drive belt.


Installation

4.6L, 5.4L(2V), 5.4L(4V):

1. To install, reverse the removal procedure.
