Ford Truck
>>
2000
>>
Expedition 4WD V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Navigation System
Navigation System

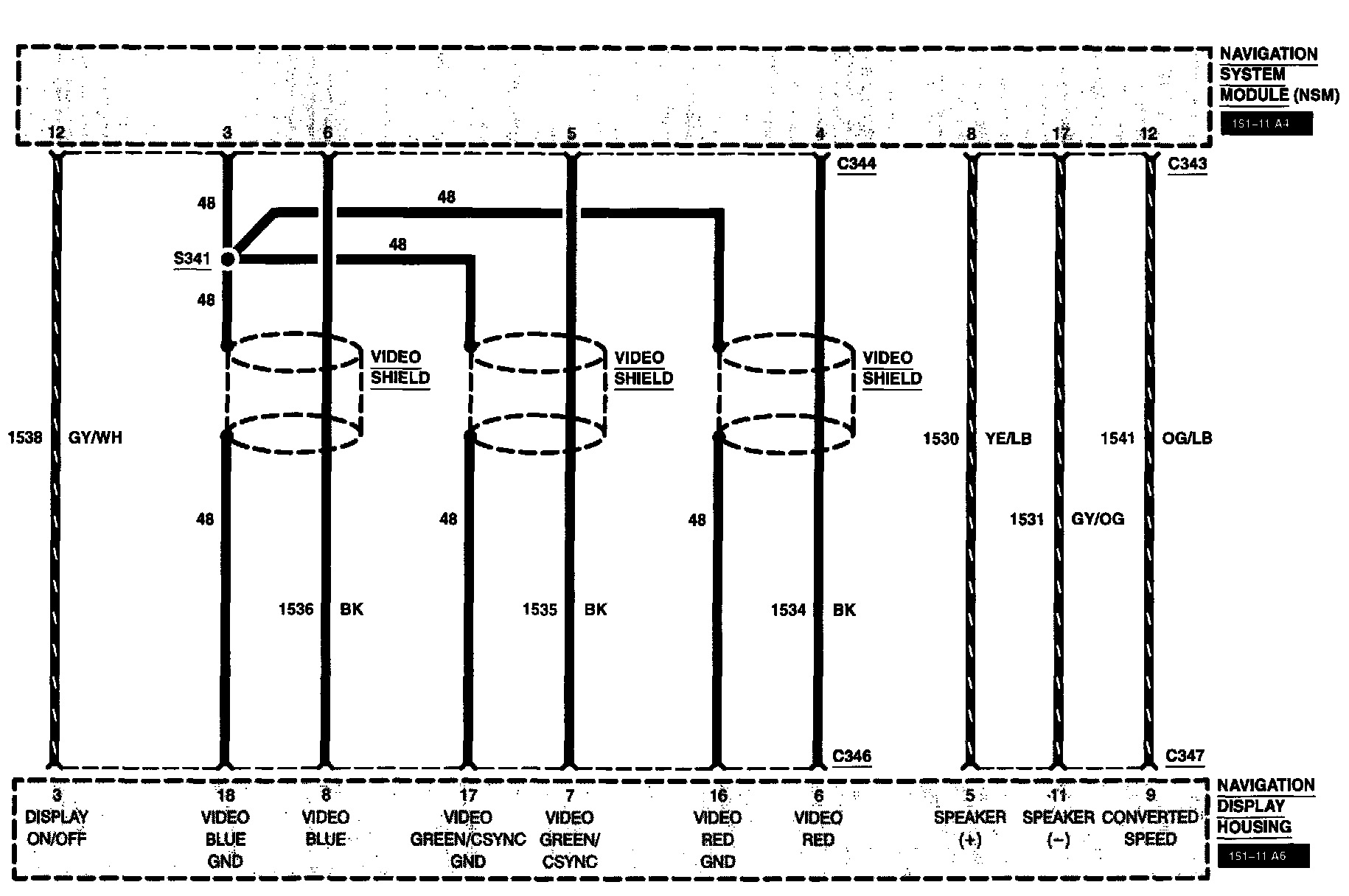

Diagram 32-1:

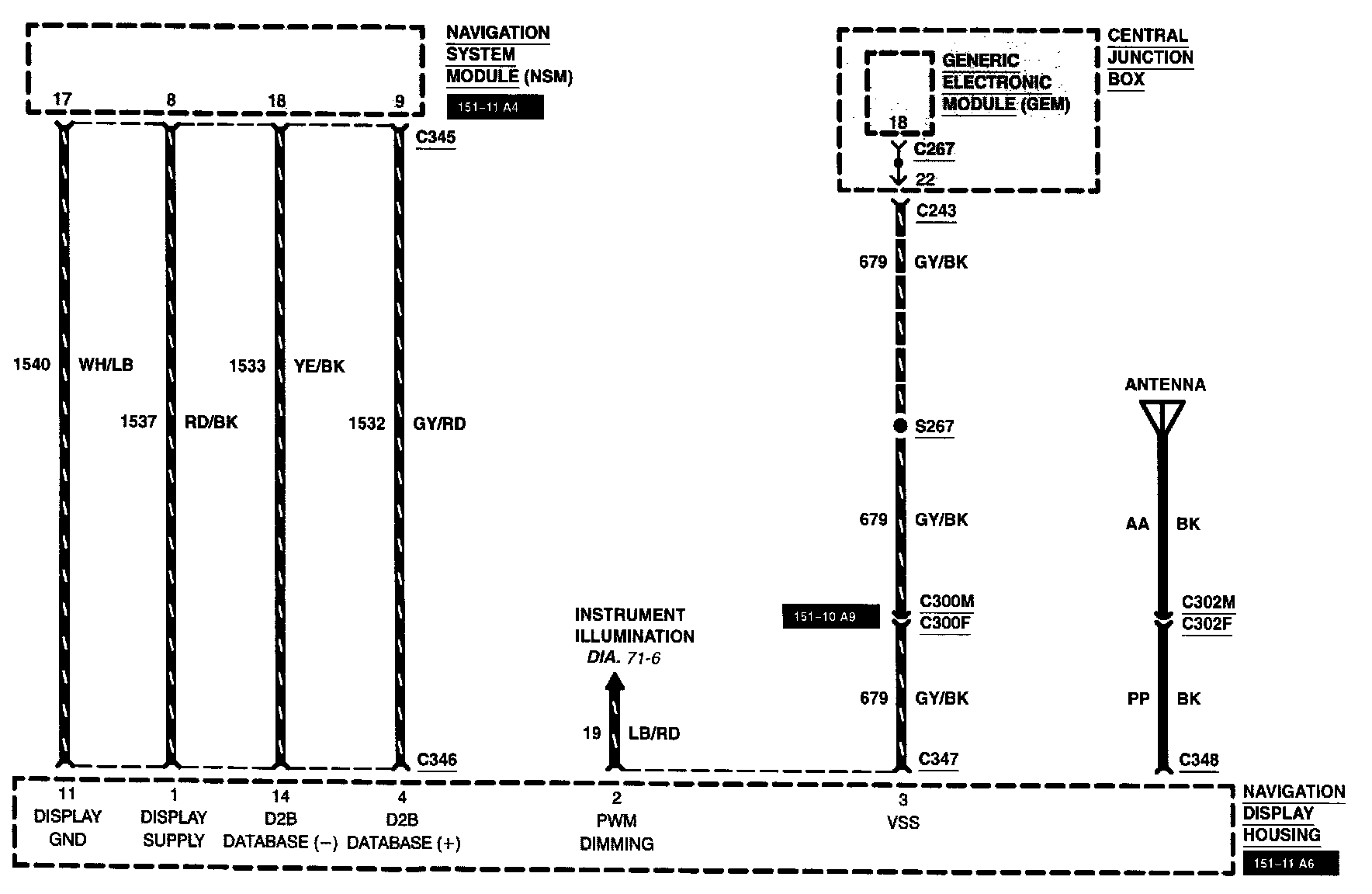

Diagram 32-2:

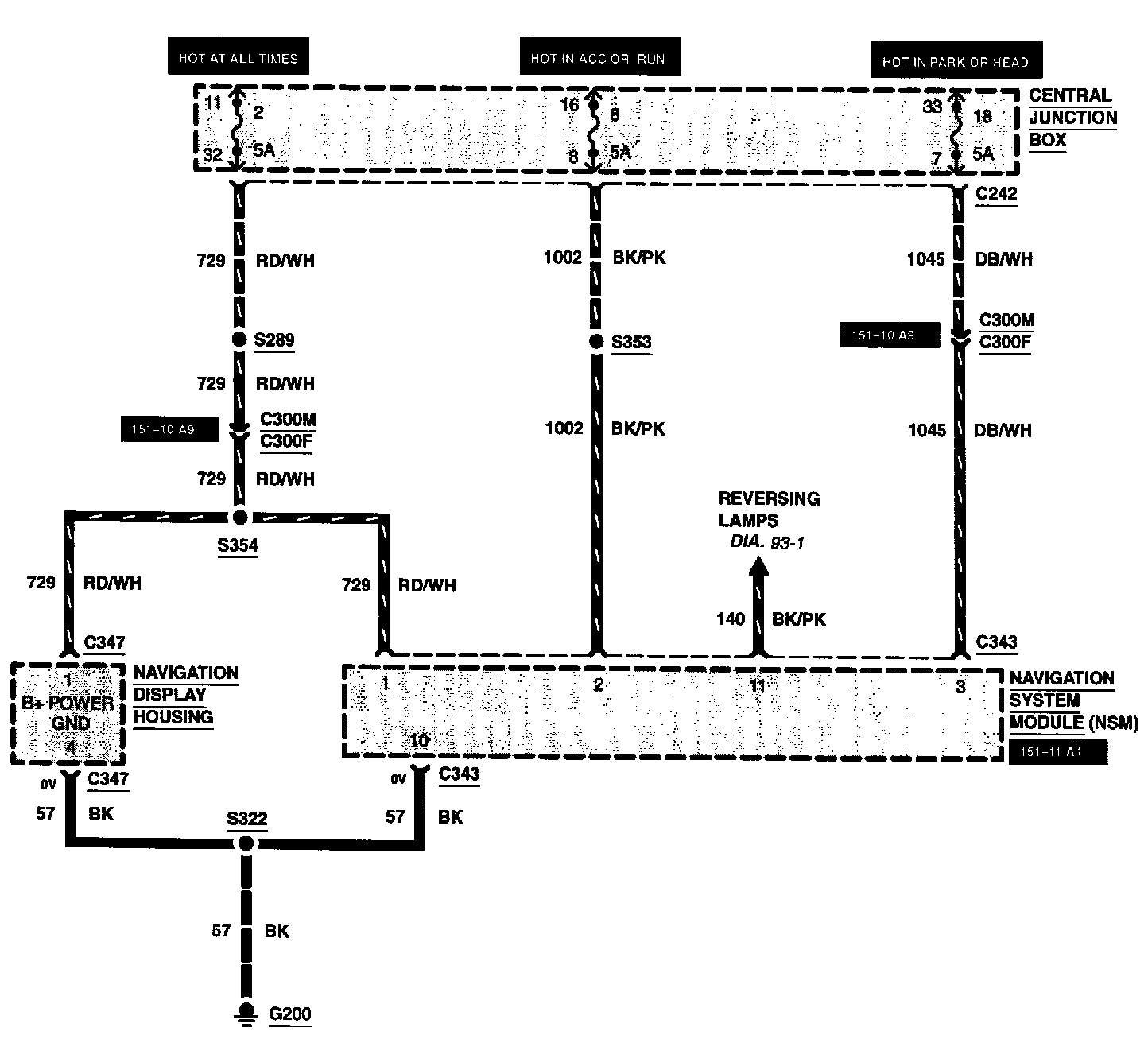

Diagram 32-3:
