Rear Wiper

REMOVAL
1. Remove the rear pivot arm. For additional information, refer to Pivot Arm-Rear.

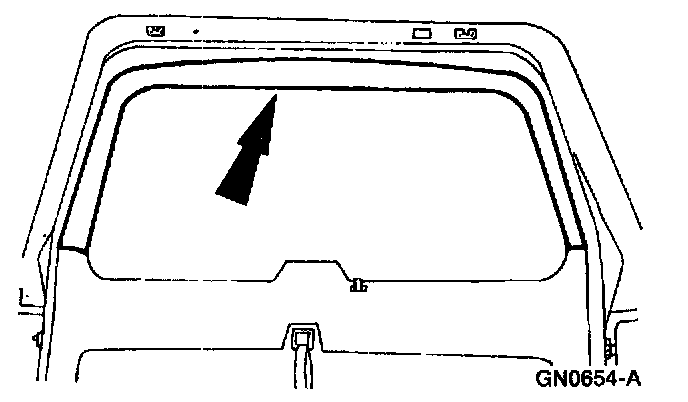

2. Remove the upper liftgate trim panel.

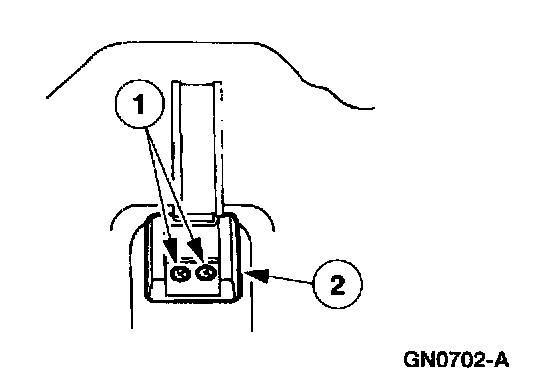

3. Remove the liftgate assist strap.
1 Remove the screws.
2 Remove the liftgate assist strap.

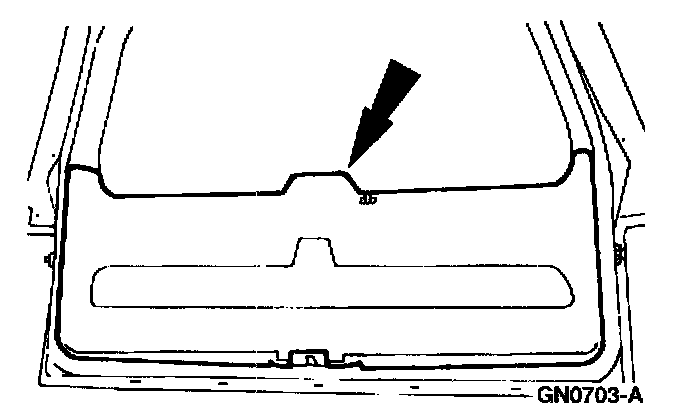

4. Remove the lower liftgate trim panel.
5. Remove the liftgate watershield.

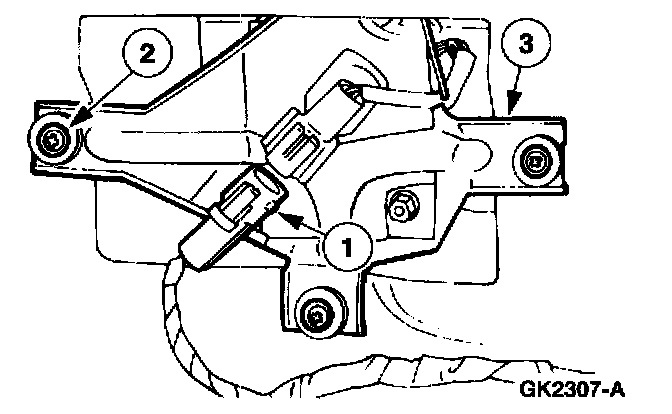

6. Remove the rear window wiper motor.
1 Disconnect the electrical connector.
2 Remove the three screws.
3 Remove the rear window wiper motor.







INSTALLATION

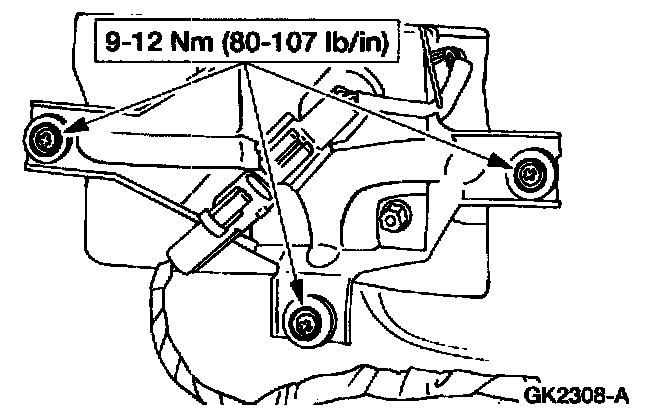

1. To install, reverse the removal procedure.
