Rear Pivot Arm

REMOVAL

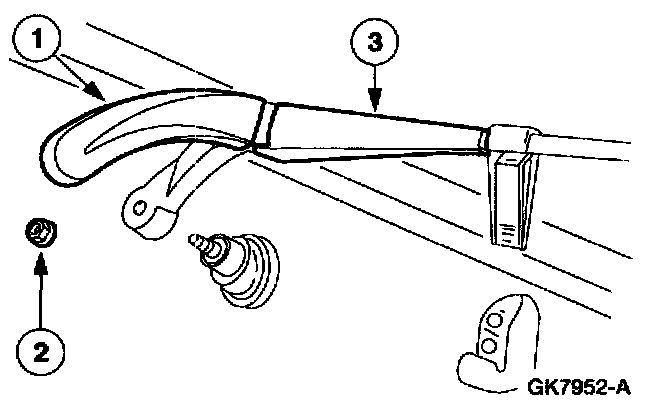

1. Remove rear pivot arm.
1 Lift the pivot arm nut cover.
2 Remove the nut.
3 Remove the pivot arm.

CAUTION: Use a shop towel or similar device to protect the vehicle finish when performing the procedure.

INSTALLATION
1. Turn the rear wiper switch on and allow the motor to operate for at least one cycle. Turn the rear wiper switch to off.

NOTE: This step ensures that the wiper motor is in the park position.







2. Position the wiper blade outside the wiper arm stop.

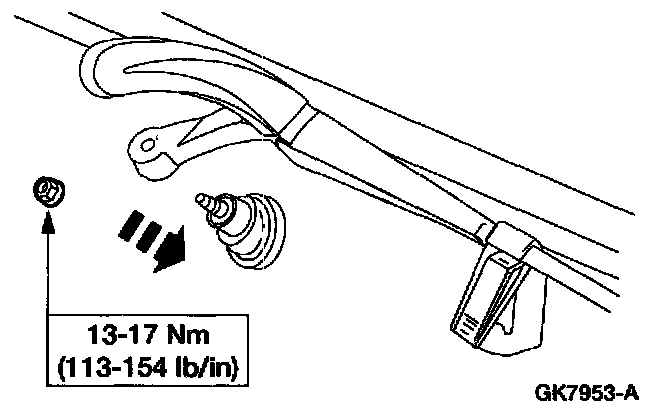

3. Install the wiper pivot arm onto the wiper motor.
^ Tighten the retaining nut.







4. Cycle the wiper motor one time to allow the wiper arm to park on the wiper arm stop.
