Windshield Washer Pump: Service and Repair

REMOVAL







1. Disconnect the jack handle from the windshield washer reservoir.

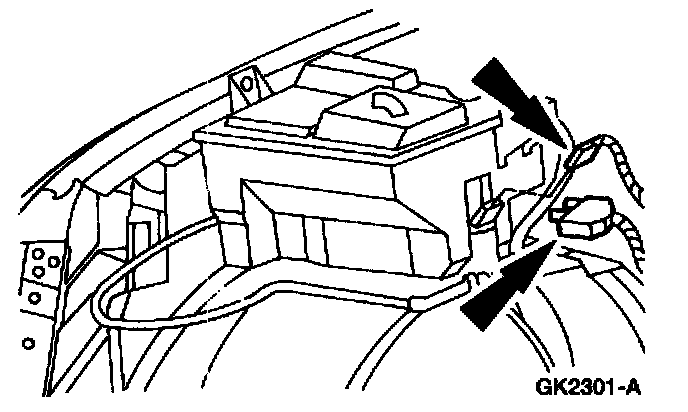

2. Disconnect the electrical connectors.

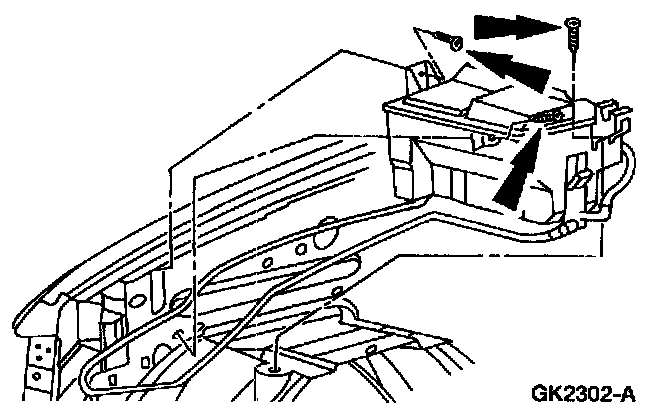

3. Remove the windshield washer reservoir screws.

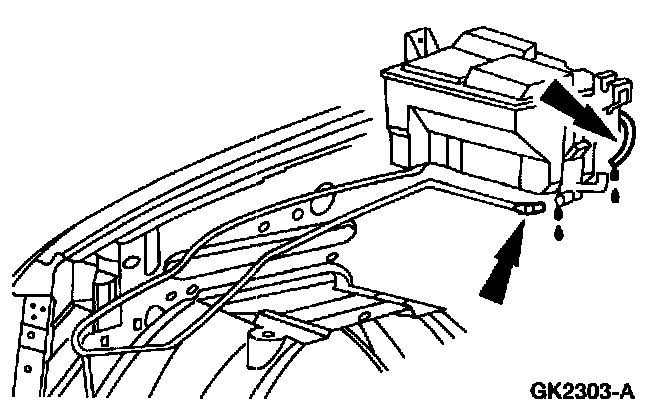

4. Disconnect the windshield washer hoses.

NOTE: Windshield washer fluid should be collected in a container after the windshield washer hoses are disconnected.

5. Remove the windshield washer reservoir.

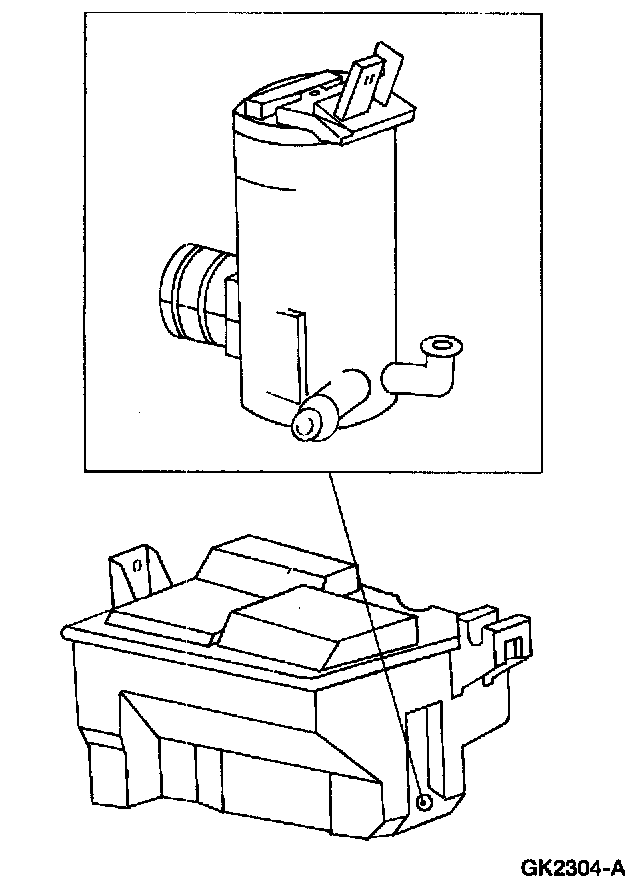

6. Remove the windshield washer pump.

INSTALLATION

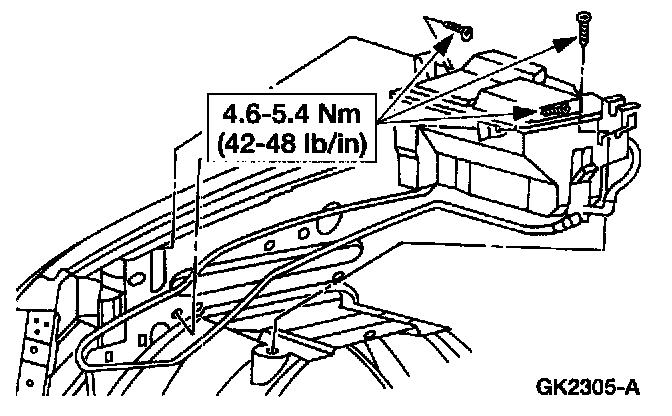

1. To install, reverse the removal procedure.
^ Fill the windshield washer reservoir with Ultra-Clear Windshield Washer Concentrate C9AZ-19550-AC or BC or equivalent meeting Ford specification ESR-M17P5-A.

CAUTION: Do not operate the windshield washer pump prior to filling the windshield washer reservoir.
