Flex Plate: Service and Repair

Removal
1. Remove the transmission.





2. Remove the bolts.

Installation





1. Position the flywheel and install the bolts tighten the bolts in two stages.
- Stage 1: Loosely install the bolts

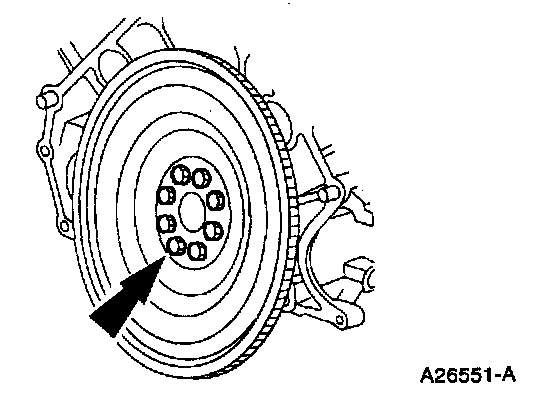

- Stage 2: Tighten the bolts in sequence shown.

2. Install the transmission.
