Transmission Mount: Service and Repair

Removal
1. Disconnect the battery ground cable.
2. Raise the vehicle on a hoist.





3. Note: To maintain initial driveshaft balance, mark the rear driveshaft yoke and axle flange so they may be installed in their original positions.

Remove the rear driveshaft.

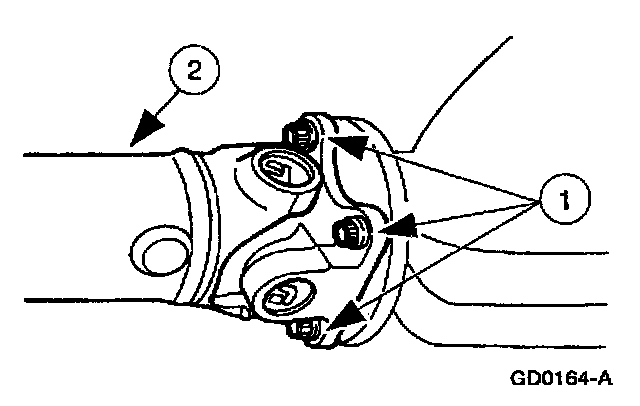

1 Remove the four bolts.
2 Remove the driveshaft.

4. Use High-Lift Jack to support the transmission.

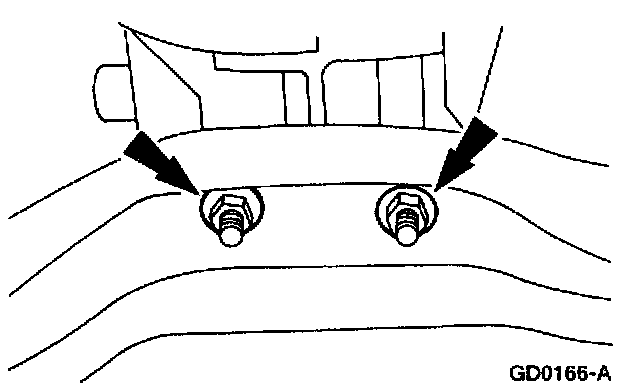

5. Remove the nuts.





6. Remove the bolts.





7. Remove the transmission crossmember.

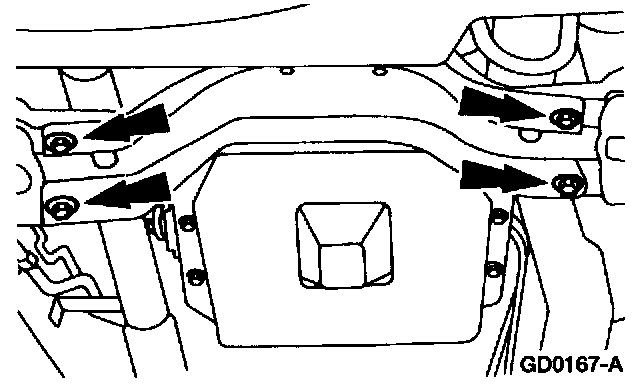

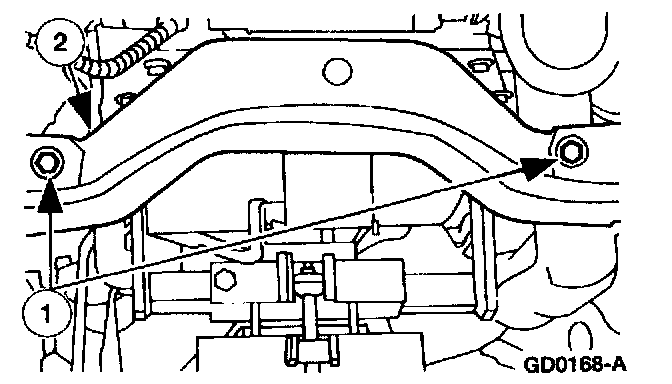

1 Remove the bolts.
2 Remove the transmission crossmember.

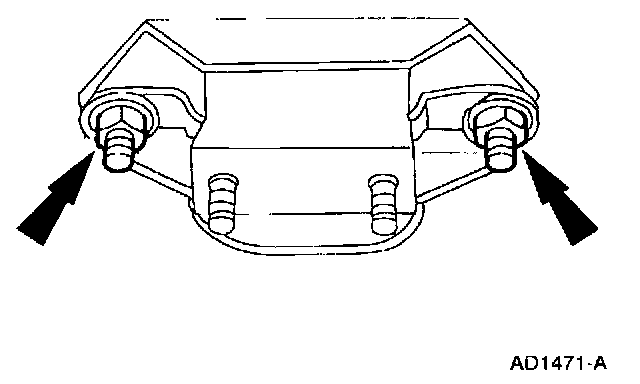

8. Remove the rear support insulator.

Installation





1. Install the rear support insulator.





2. Install the transmission crossmember.

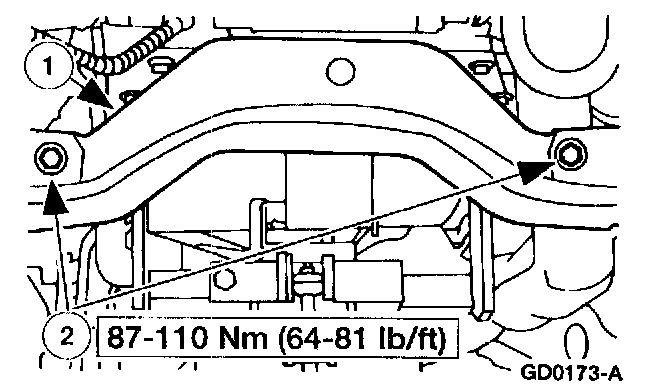

1 Position the transmission crossmember.
2 Install the bolts.

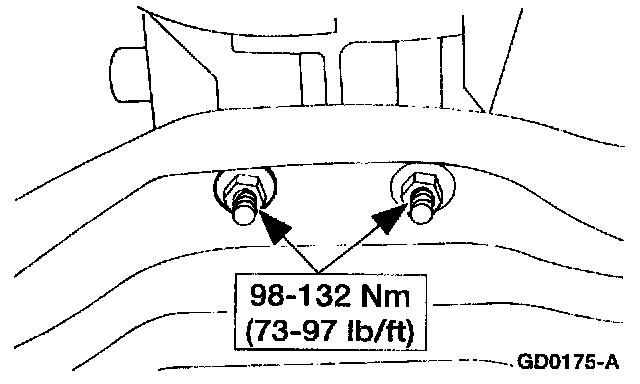

3. Install the transmission crossmember bolts.





4. Remove the High-Lift Jack.
- Install the nuts.
5. Install the drive shaft.
6. Lower the vehicle.
7. Connect the battery ground cable.
