Message Center Assembly

REMOVAL







1. Open the overhead sunglasses compartment and remove the screw.







2. Grasp the front of the overhead console and pull down to remove the console.

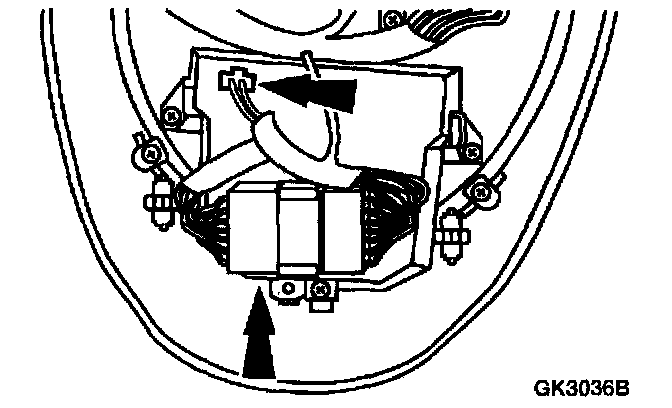

3. Disconnect the electrical connectors.







4. Remove the message center.

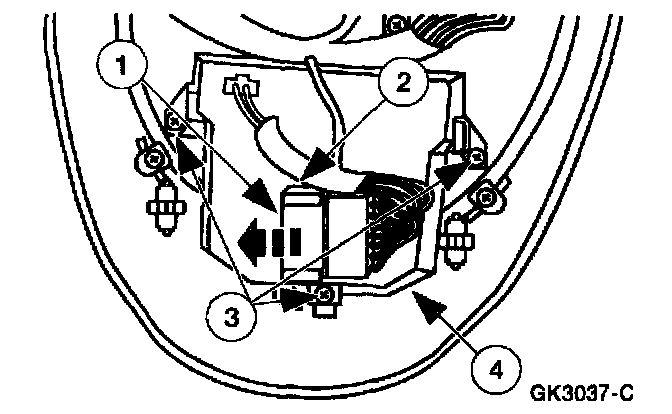

1 Depress the lock tab underneath the in-line electrical connector.
2 Remove the in-line connector.
3 Remove the screws.
4 Remove the message center.

INSTALLATION
1. To install, reverse the removal procedure.
