Heater Hose Assembly

REMOVAL
1. Drain the radiator. For additional information, refer to Cooling System.

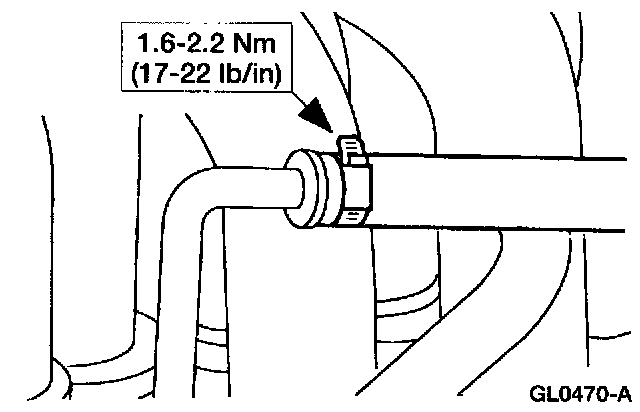

2. Disconnect the heater outlet hose at the engine.

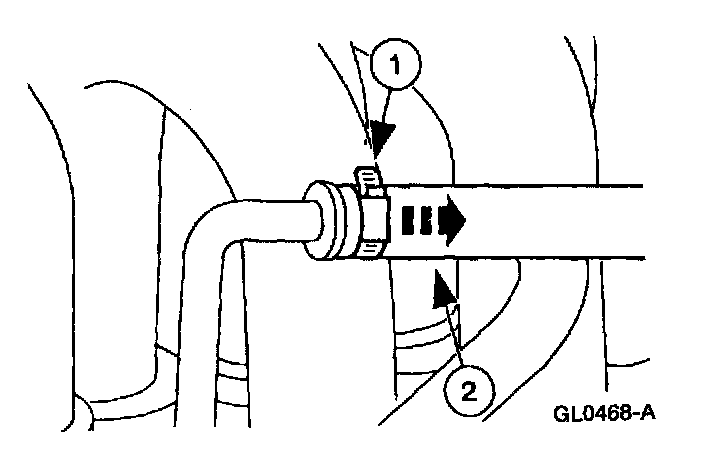

3. Disconnect the heater inlet hose at the engine.
1 Loosen the hose clamp.
2 Disconnect the heater inlet hose.







4. Disconnect the heater core hose couplings.

INSTALLATION







1. To install, reverse the removal procedure.
