Center

REMOVAL







1. Remove the center instrument panel finish panel.

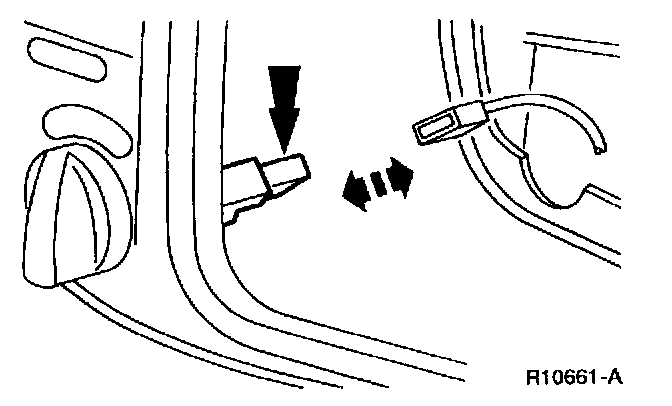

2. If equipped, disconnect the transfer case rotary control switch electrical connector.

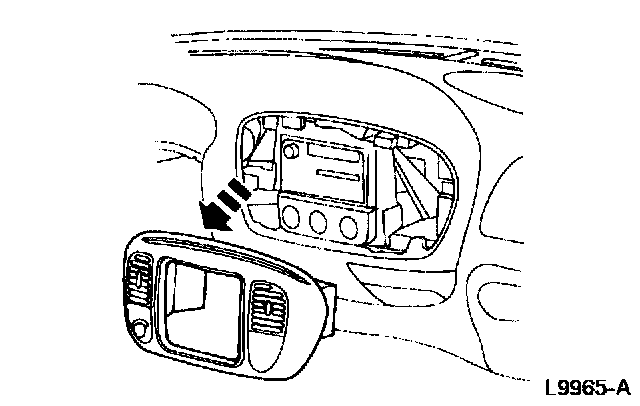

3. Remove the center panel register(s).
1 Remove the screws.
2 Pry back the lock tabs.
3 Remove the panel register.

INSTALLATION
1. To install, reverse the removal procedure.
