Oil Pan: Service and Repair

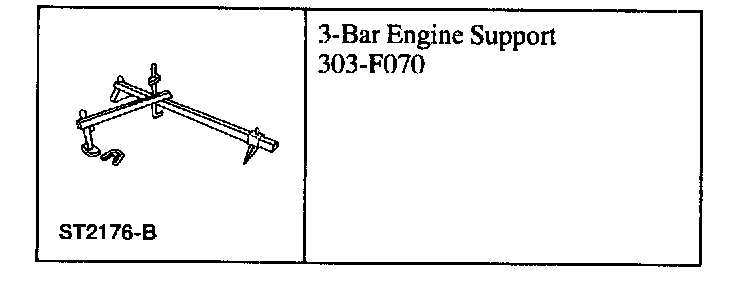

Special Tools:
Removal
1. Disconnect the battery ground cable.
2. Drain the cooling system.
3. Remove the radiator air deflector.

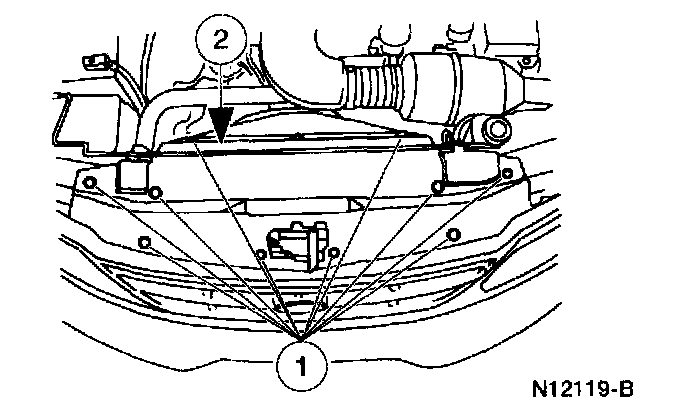

1 Remove the screws.
2 Remove the radiator air deflector.

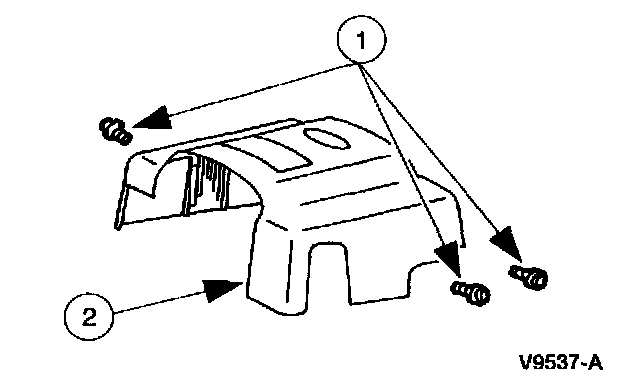

4. Remove the accelerator cable snow shield.
1 Remove the bolts.
2 Remove the accelerator cable snow shield.
5. Disconnect the throttle body cam.

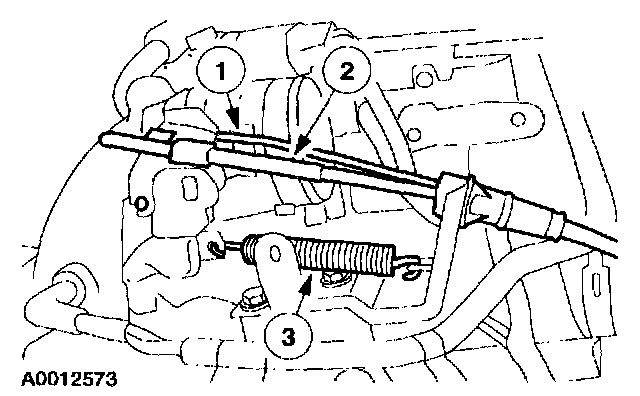

1 Disconnect the accelerator cable.
2 Disconnect the speed control actuator cable.
3 Remove the accelerator return spring.

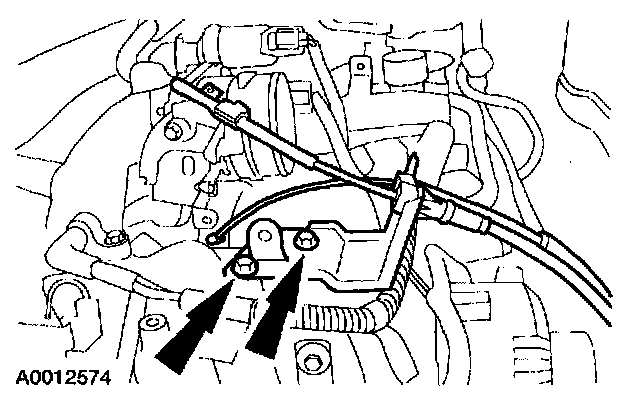

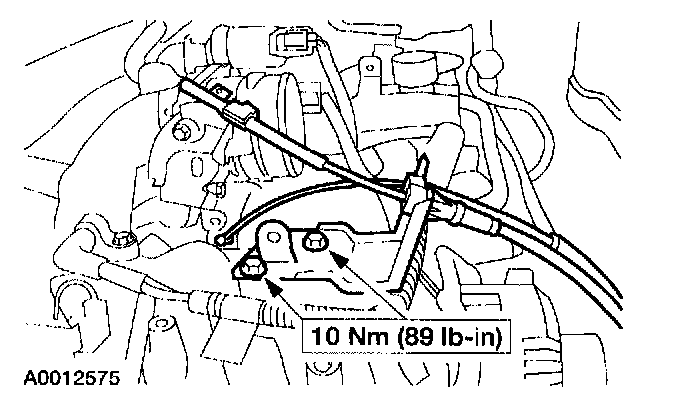

6. Remove the accelerator cable bracket bolts and position the bracket and cables aside.
7. Disconnect the main vacuum harness.

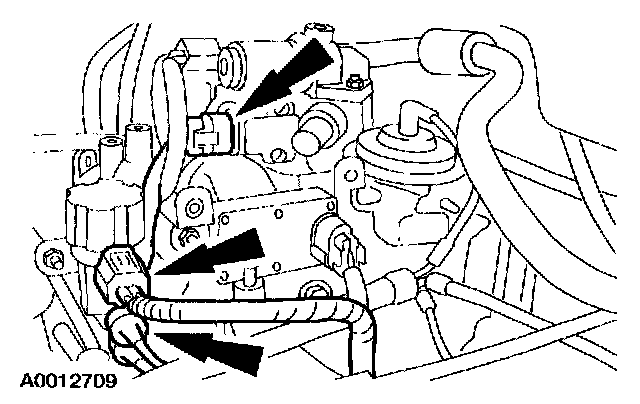

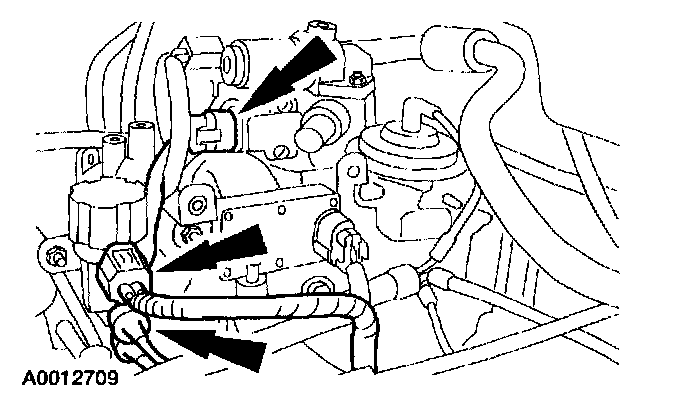

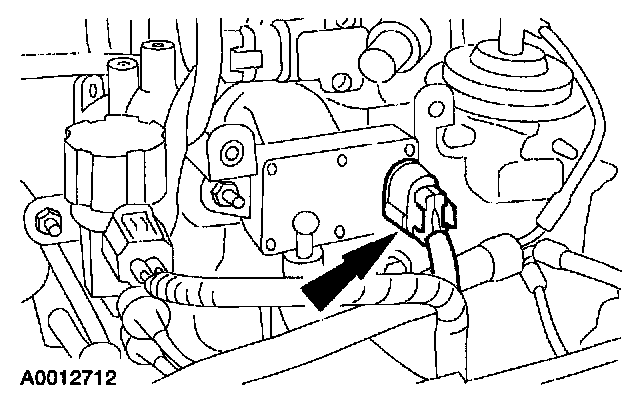

8. Disconnect the throttle position sensor and engine vacuum regulator connectors.
9. Disconnect the fuel pressure regulator vacuum line.
10. Disconnect the vapor management valve vacuum line.
11. Disconnect the differential pressure feedback EGR connector.
12. Remove the nut and disconnect the brake booster vacuum line and bracket.
13. Disconnect the fuel lines.

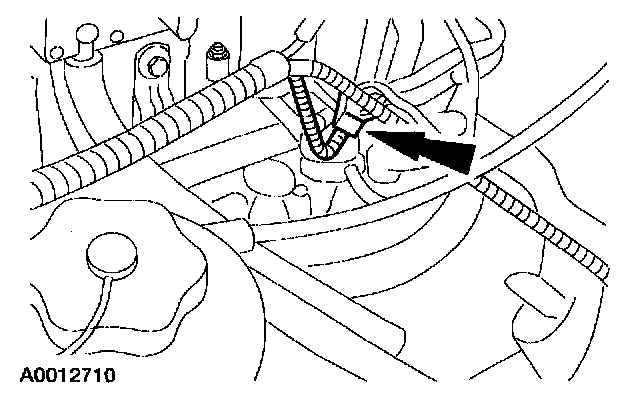

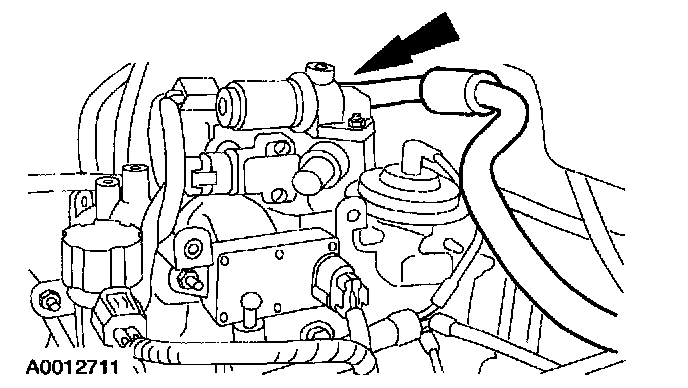

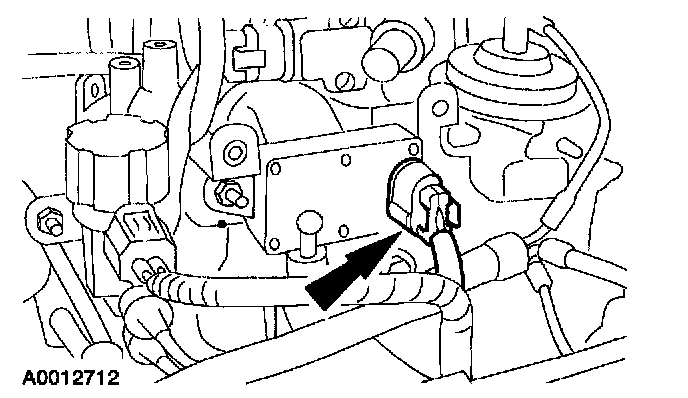

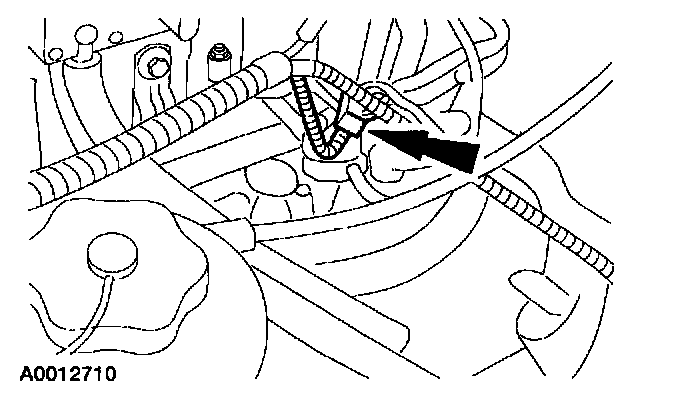

14. Disconnect the idle air control motor electrical connector.

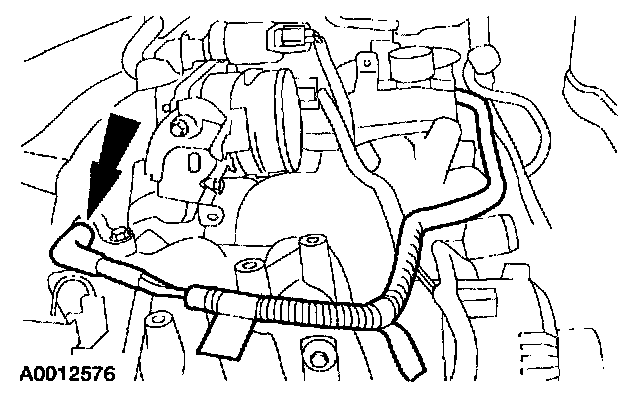

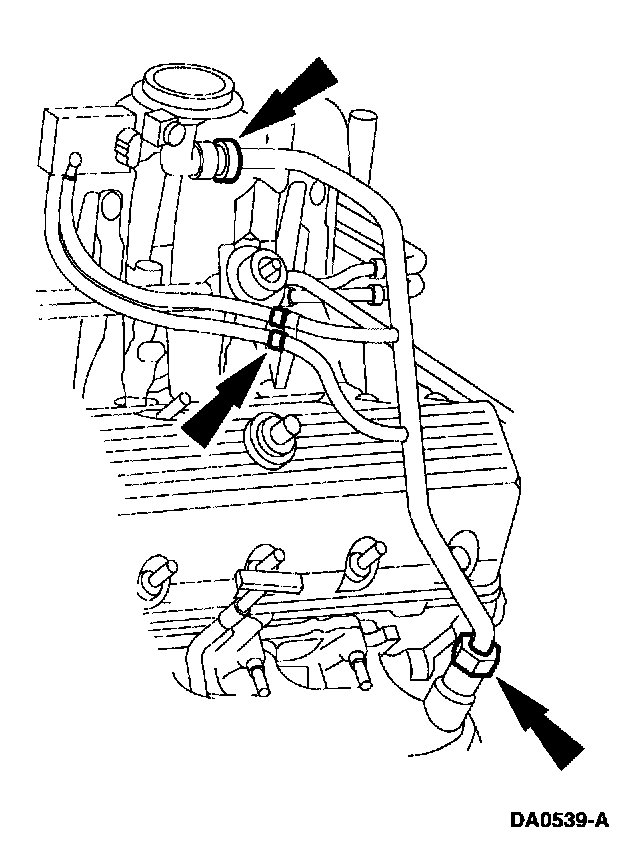

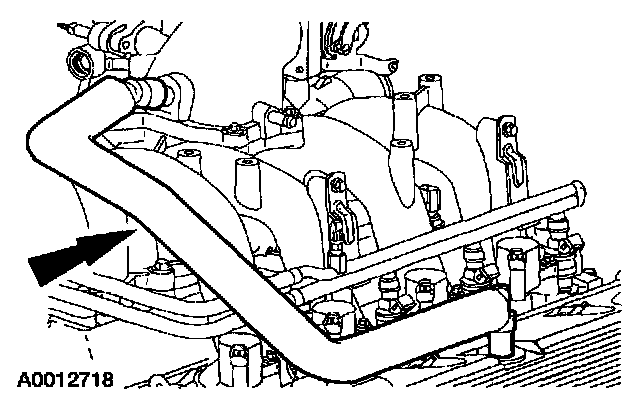

15. Position the EGR valve to exhaust manifold tube aside.

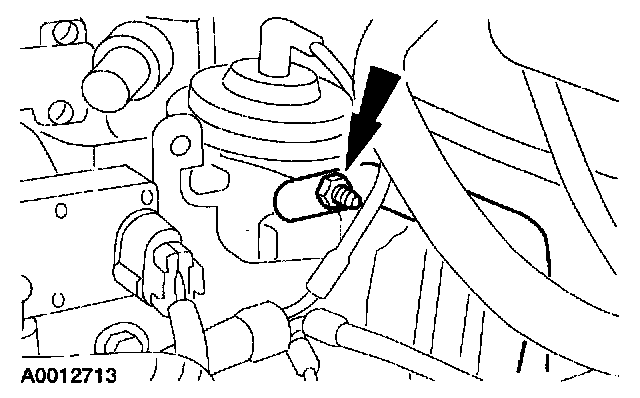

- Disconnect the upper fitting.

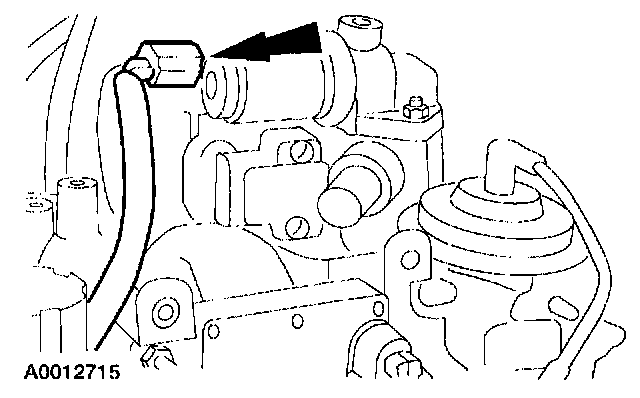

- Loosen the lower fitting.
- Disconnect the two vacuum lines.
- Position the tube aside.

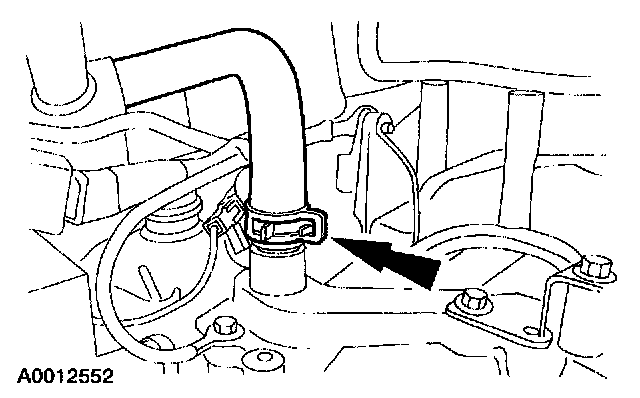

16. Disconnect and remove the Positive Crankcase Ventilation (PCV) hose.

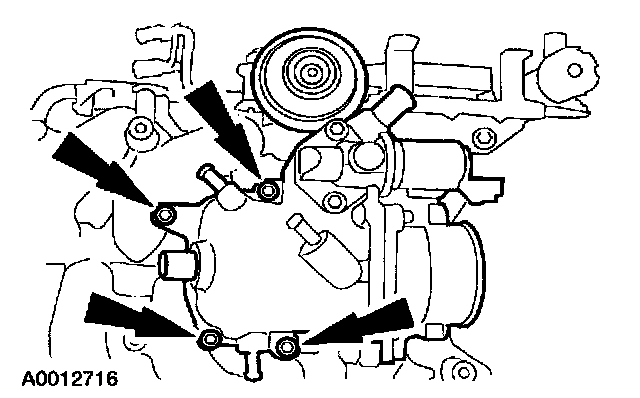

17. Remove the four bolts and remove the throttle body adapter.

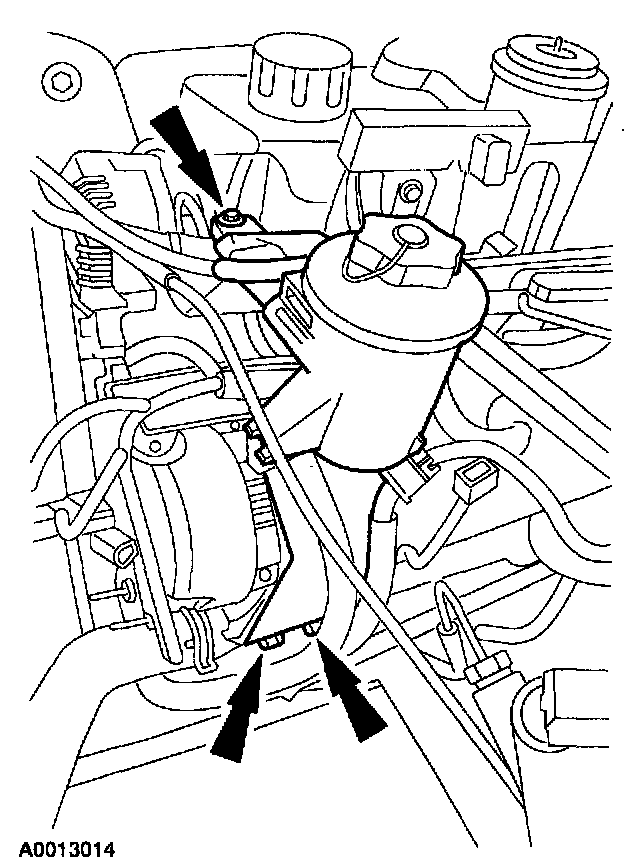

18. Position the power steering reservoir aside.
- Remove the upper bolt.
- Remove the lower bolts.
- Position the reservoir aside.

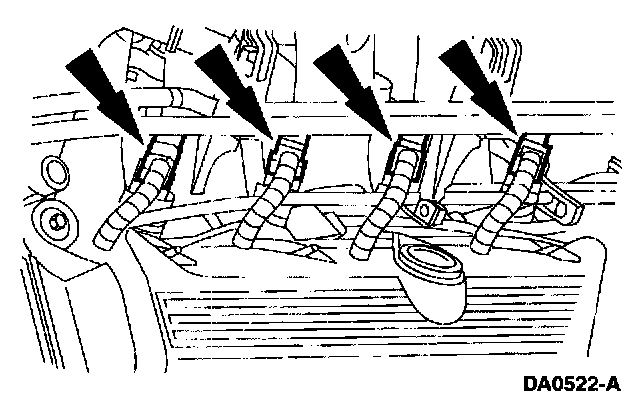

19. Disconnect the eight fuel injectors.
20. Disconnect and remove the eight ignition coils.
21. Remove the generator.
22. Disconnect the heater hose.

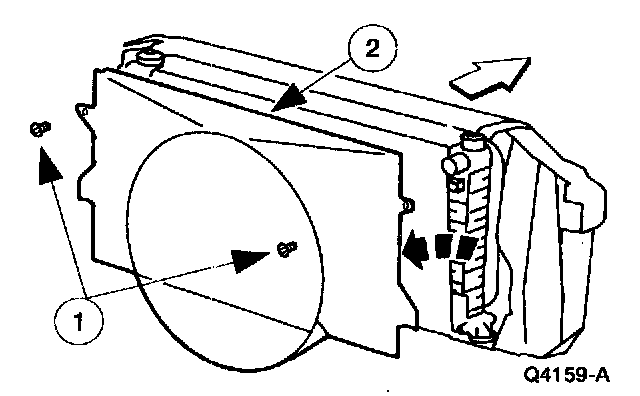

23. Position the fan shroud aside.
1 Remove the bolts.
2 Position the fan shroud aside.
24. Remove the generator.
25. Install the 3-Bar Engine Support Bracket on the engine using the generator mounting bolts.
26. Raise and support the vehicle.
27. Remove the drain plug and drain the engine oil.

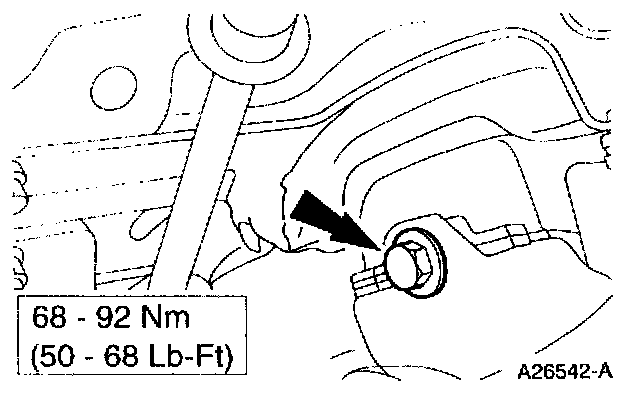

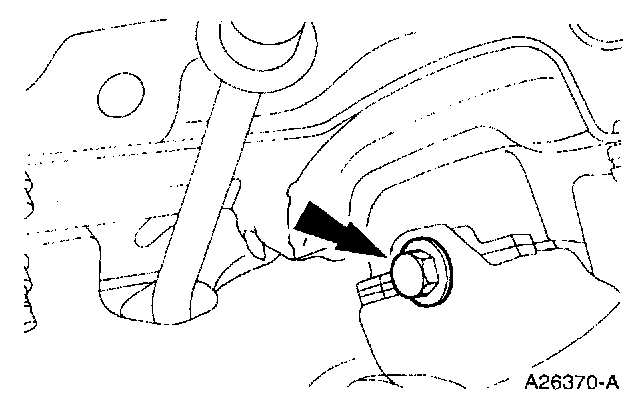

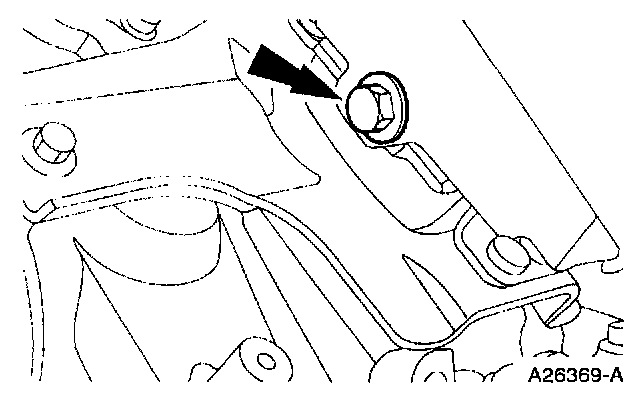

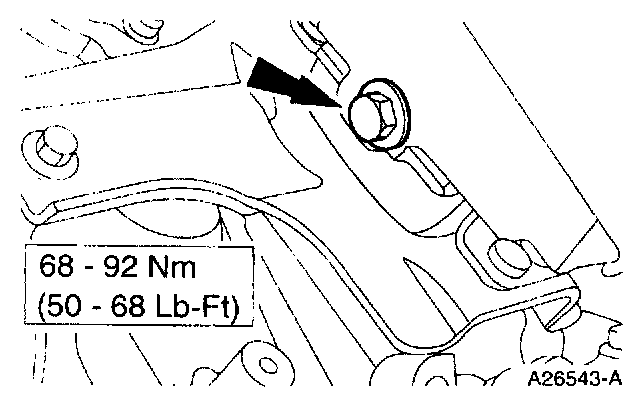

28. Remove the RH motor mount bolt.
29. Remove the LH motor mount bolt.
30. Lower the vehic1c.
31. Raise the engine using the 3-Bar Engine Support.
32. Raise the vehicle on the hoist.
33. Note: Be careful when removing the oil pan gasket. The oil pan gasket is reusable if it is not damaged.
Remove the oil pan bolts.
- Position the oil pan aside to gain access to the oil pump screen cover and tube.
34. Remove the bolt securing the rear of the oil pump screen cover and tube.
35. Remove the bolts securing the front of the oil pump screen cover and tube.
Installation
1. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
Clean and inspect the mating surfaces.
2. Position the oil pan gasket, the oil pan and the oil pump screen cover and tube together to the cylinder block.
3. Install the bolts.
4. Install the bolt.
5. Note: If the oil pan is not secured within four minutes, the sealant must be removed and the sealing area cleaned with Metal Surface Cleaner F4AZ-19A536-RA or equivalent meeting Ford specification WSE-M513392-A. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure may result in future oil leakage.
Apply the silicone at the engine front cover to cylinder block mating surface.
- Use Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4.
6. Note: If the if the oil pan is not secured within four minutes, the sealant must be removed and the sealing area cleaned with Metal Surface Cleaner F4AZ-19A536-RA or equivalent meeting Ford specification WSE-M513392-A. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure may result in future oil leakage.
Apply the silicone at the rear oil seal retainer to cylinder block sealing surface.
- Use Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4.
7. Position the oil pan gasket.
8. Install the bolts and tighten in three stages, in the sequence shown.
- Stage 1: Tighten to 2 Nm (18 inch lbs.).
- Stage 2: Tighten to 20 Nm (15 ft. lbs.).
- Stage 3: Tighten an additional 60 degrees.
9. Lower the vehicle.
10. Lower the engine and remove the 3-Bar Engine Support.
11. Raise the vehicle on the hoist.
12. Install the RH motor mount bolt.
13. Install the LH motor mount bolt.
14. Install the drain plug.
15. Lower the vehicle.
16. Remove the 3-Bar Engine Support Bracket.
17. Install the generator.

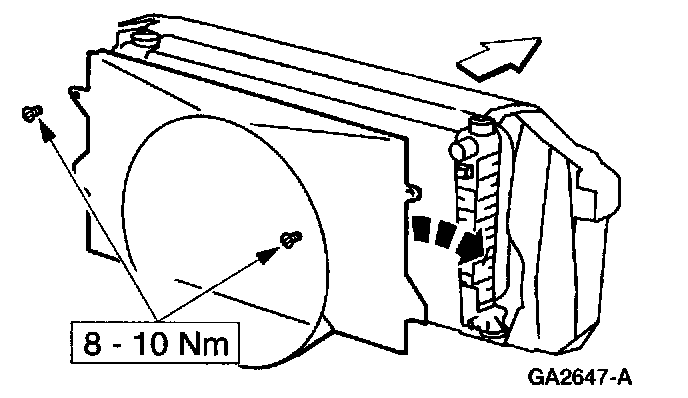

18. Position the fan shroud and install the bolts.

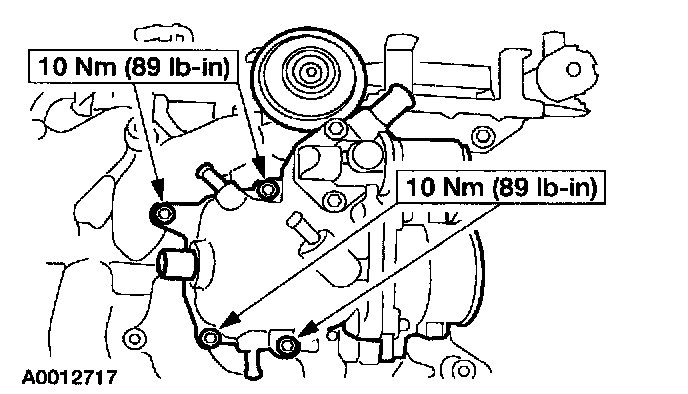

19. Install the throttle body adapter and the four bolts.

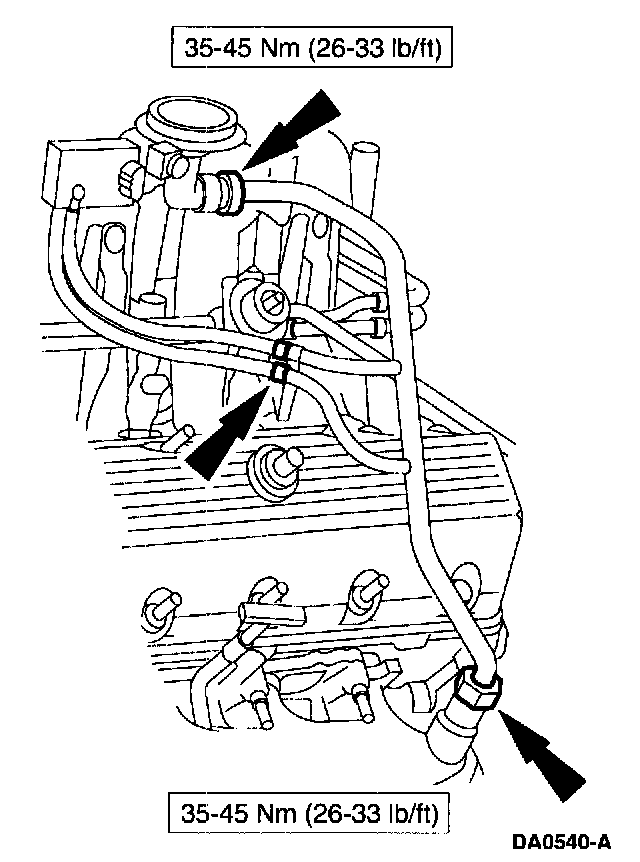

20. Install the EGR valve to exhaust manifold tube.
- Hand-tighten the fittings.
- Tighten the upper fitting.
- Tighten the lower fitting.
- Connect the two vacuum hoses.
21. Connect the idle air control motor.
22. Connect the fuel lines.

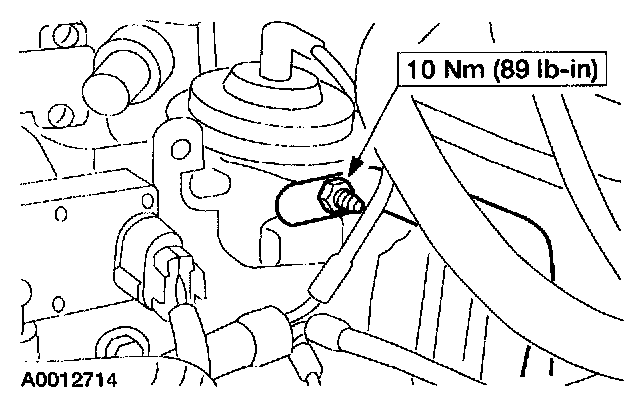

23. Connect the brake booster vacuum line and bracket and install the nut.
24. Connect the differential pressure feedback EGR connections.
25. Connect the vapor management valve vacuum line.
26. Connect the fuel pressure regulator vacuum line.
27. Connect the throttle position sensor connector and the engine vacuum regulator connector.
28. Connect the main vacuum harness.
29. Install the accelerator cable bracket and the bolts.
30. Connect the throttle body cam.
1 Connect the accelerator cable.
2 Connect the speed control actuator cable.
3 Install the throttle return spring.

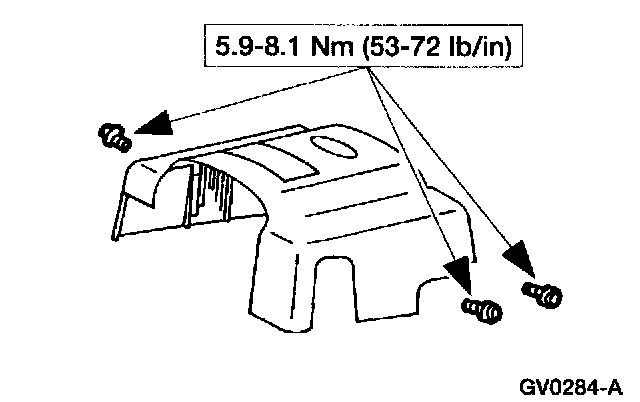

31. Install the accelerator cable snow shield and the bolts.

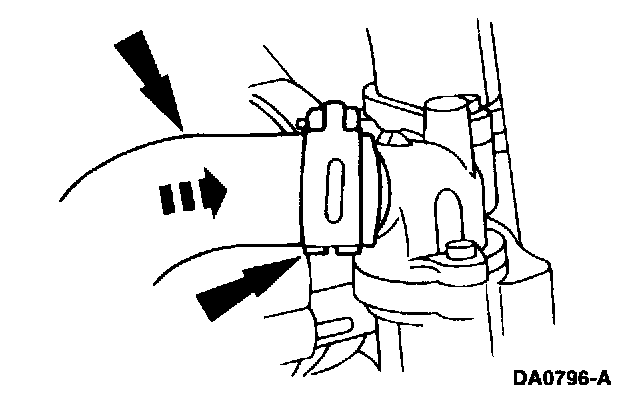

32. Connect the upper radiator hose and position the clamp.
33. Install the engine air cleaner and the air cleaner outlet tube.
34. Install the radiator air deflector.
35. Connect the battery ground cable.
36. Fill the engine with Super Premium SAE 5W-30 Motor Oil XO-5W30-QSP or equivalent meeting Ford specification WSS-M2C153-G.
37. Fill and bleed the cooling system.
