LH

Removal
1. Disconnect the battery ground cable.
2. Remove the engine air cleaner and the air cleaner outlet tube.

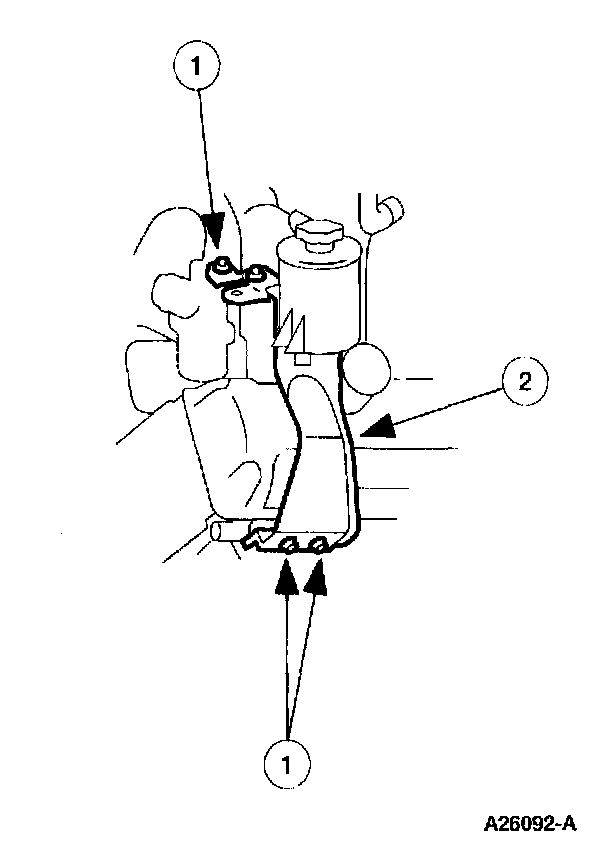

3. Position the power steering fluid reservoir and bracket aside.
1 Remove the bolts.
2 Position the power steering fluid reservoir and bracket aside.





4. Note: 4.6L engine shown; 5.4L engine similar.

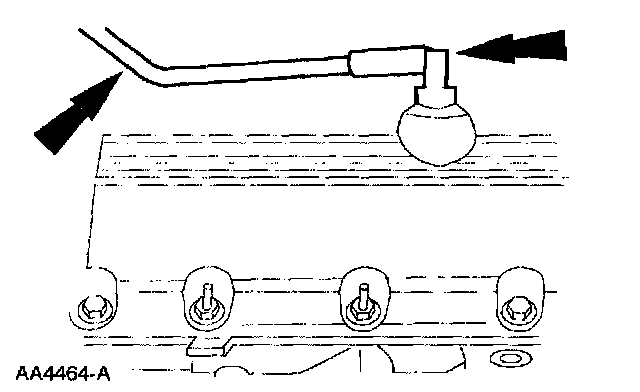

Remove the crankcase ventilation tube from the valve cover.





4.6L Engine





5.4L Engine

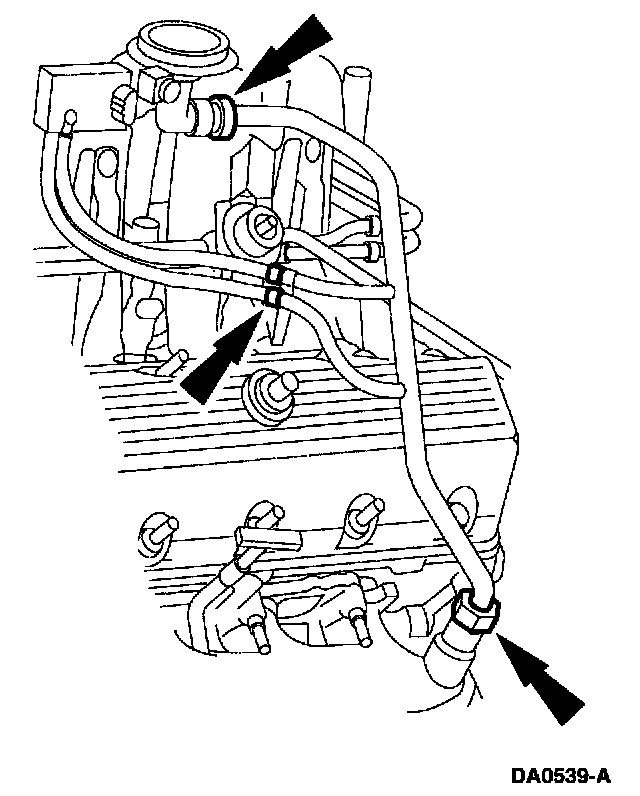

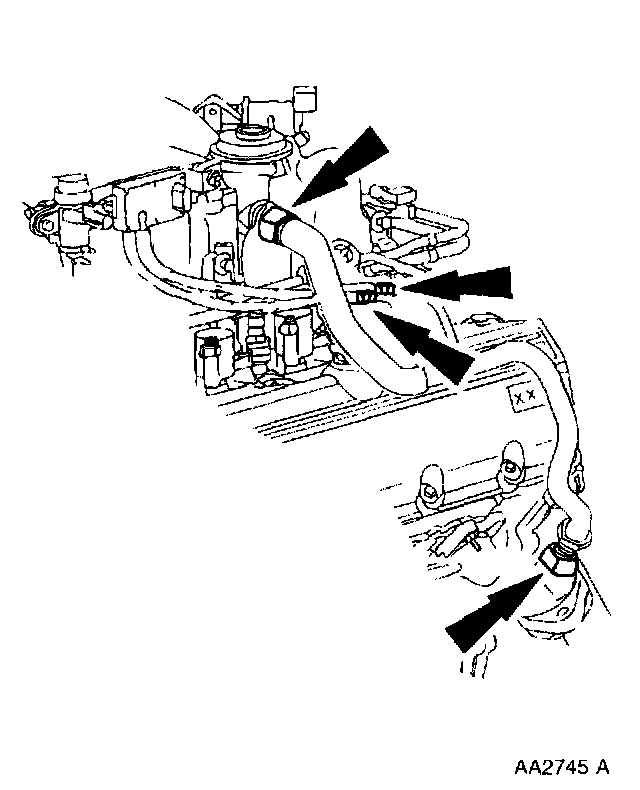

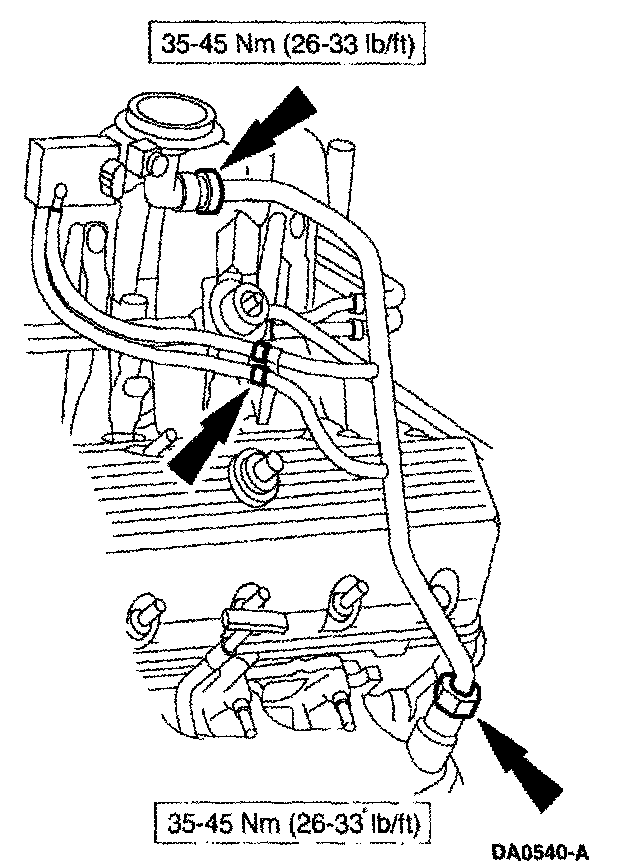

5. Remove the EGR valve-to-exhaust manifold tube.
- Disconnect the upper and lower EGR valve-to-exhaust manifold tube fittings.
- Disconnect the two differential pressure feedback EGR hoses.

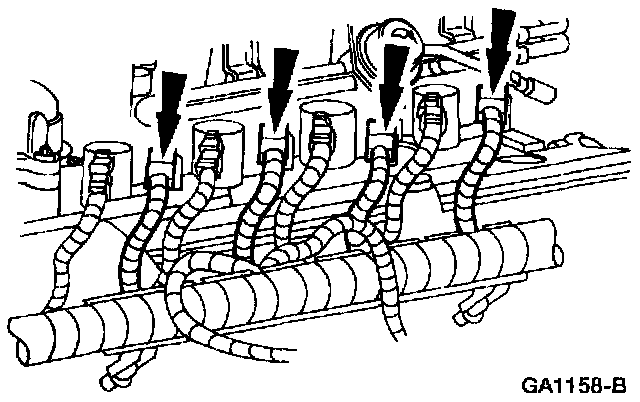

6. Disconnect the LH fuel injector electrical connections.

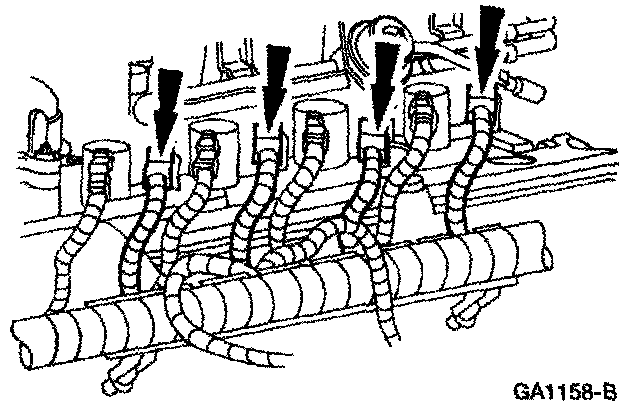

7. Disconnect the LH ignition coil electrical connections.

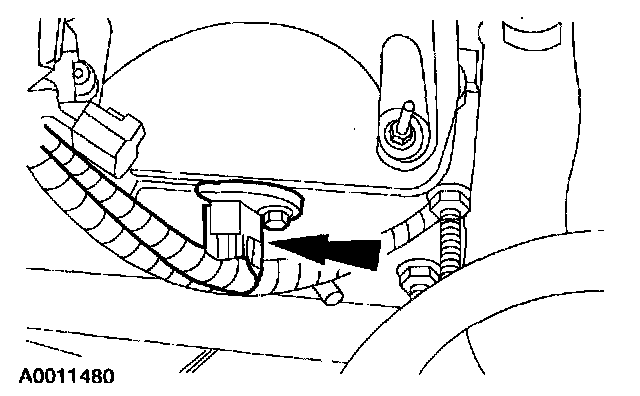

8. Disconnect the Camshaft Position (CMP) sensor.
9. Lift the engine sensor control wiring harness off of the valve cover studs.





10. Note: The intake manifold is removed for clarity.

Note: The bolts are part of the valve cover and should not be removed.

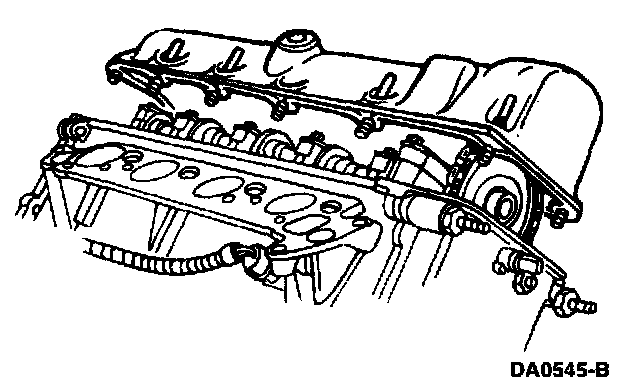

Remove the LH valve cover.
- Fully loosen the bolts and remove the valve cover.
- Inspect the valve cover gasket and clean the mating surface of the cylinder head.

Installation





1 Note: If not secured within four minutes, the sealant must be removed and the sealing area cleaned with Metal Surface Cleaner F4AZ-19A536-RA or equivalent meeting Ford specification WSE-M513392-A. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Apply a bead of silicone in two places where the engine front cover meets the cylinder head.
- Use Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4.





2. Position the (A) valve cover and the valve cover gasket on the (B) cylinder head, and loosely install the bolts.





Romeo Engine





Windsor Engine

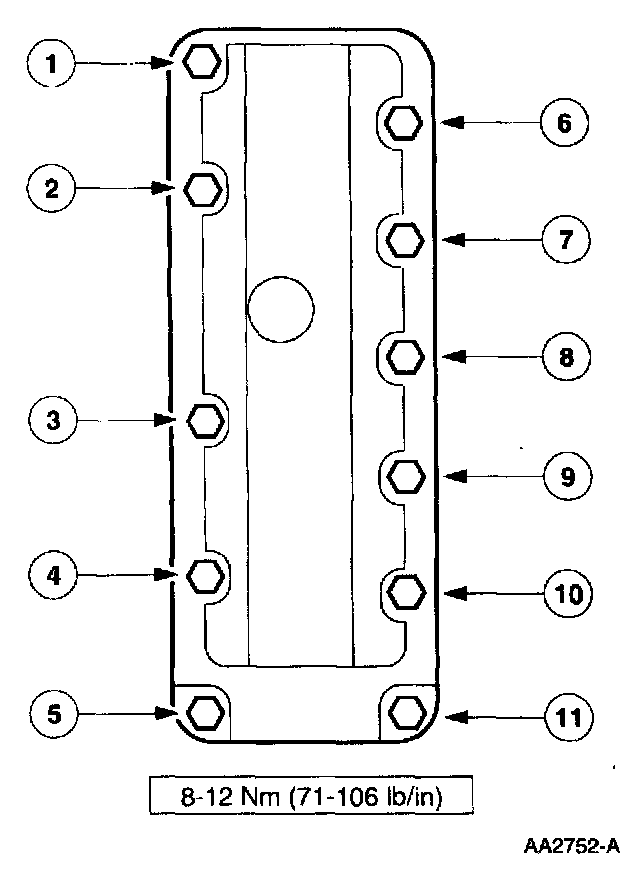

3. Tighten the bolts in the sequence shown.
4. Position the engine sensor control wiring harness onto the valve cover studs.





5. Connect the CMP electrical connector.





6. Connect the LH ignition coil electrical connectors.





7. Connect the LH fuel injector electrical connectors.
8. Connect the EGR valve to exhaust manifold tube upper fitting.





On 4.6L engines, tighten both fittings starting the top in two stages.
- Stage 1: Hand-tighten.
- Stage 2: Tighten to 35-45 Nm (26-33 ft. lbs.)





On 5.4L engines, tighten both fittings starting at the top in two stages.
- Stage 1: Hand-tighten.
- Stage 2: Tighten to 40-60 Nm (30-44 ft. lbs.).





9. Note: 4.6L engine shown; 5.4L engine similar.

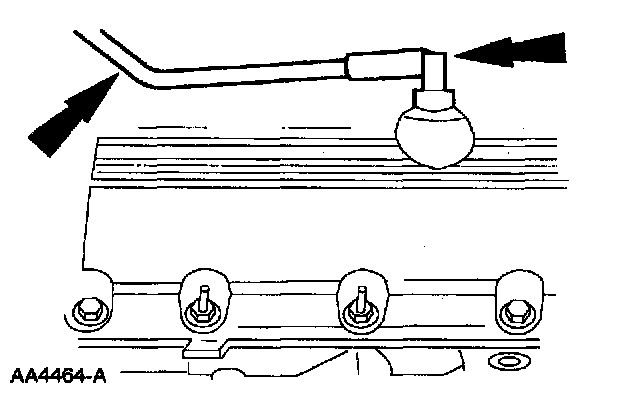

Connect the crankcase ventilation tube to the valve cover.
10. Install the engine Air Cleaner (ACL) and air cleaner outlet tube.

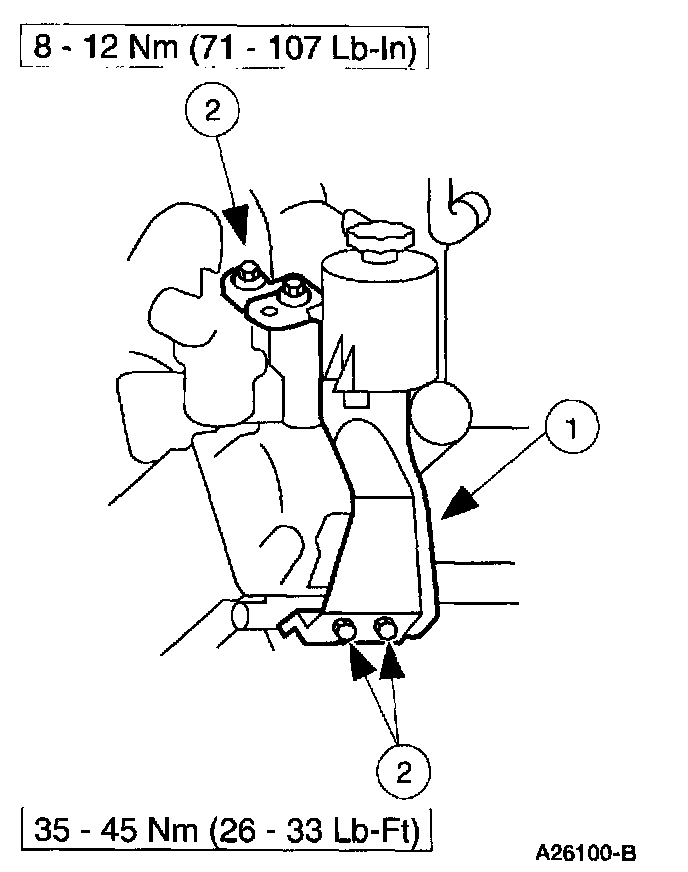

11. Install the power steering fluid reservoir and bracket.
1 Position the power steering fluid reservoir and bracket.
2 Install the bolts.
12. Connect the battery ground cable.
