Radiator: Service and Repair

Removal
1. Remove the fan blade.





2. Disconnect the transmission fluid cooler fittings.
1 Disconnect the upper transmission fluid cooler fitting.
2 Disconnect the lower transmission fluid cooler fitting.





3. Disconnect the lower radiator hose from the radiator.

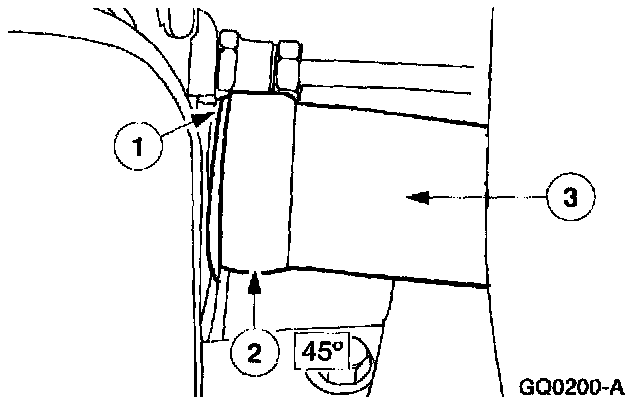

1 Pry the locking tab up and out of the slot.
2 Rotate the lower radiator hose.
3 Disconnect the lower radiator hose.





4. Remove the radiator.
1 Remove the bolts.
2 Remove the upper radiator support brackets and the jack handle and wheel nut wrench retainers.
3 Lift the radiator off the radiator mounting insulators.
4 Remove the radiator mounting insulators.

Installation





1. Install the radiator.
1 Install the radiator mounting insulators.
2 Position the radiator on the radiator mounting insulators.
3 Position the brackets and the jack handle and wheel nut wrench retainers.
4 Install the bolts.





2. Connect the lower radiator hose and upper radiator hose.

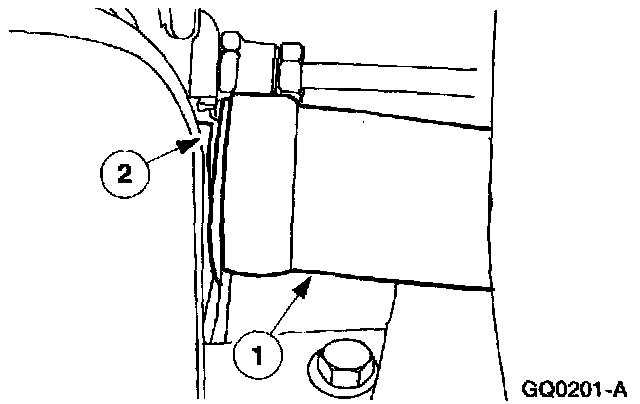

1 Push the hose onto quick connect fitting.
2 Bend the locking tab into retaining slot.





3. Connect the transmission fluid cooler lines.
1 Connect the lower transmission fluid cooler line.
2 Connect the upper transmission fluid cooler line.

4. Install the fan blade.
