Brake Disc

Removal

1. Note: When removing the rear disc brake caliper in this procedure, it is not necessary to disconnect the rear wheel brake hose.

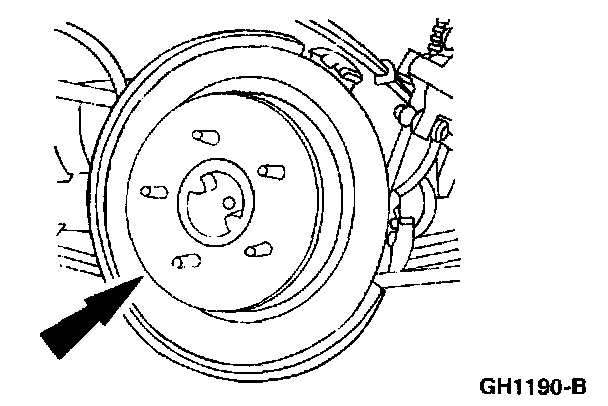

Remove the rear disc brake caliper.





2. Note: If the brake disc binds on the parking brake shoe and lining, remove the adjustment hole access plug and contract the parking brake shoe and lining.

Remove the brake disc.

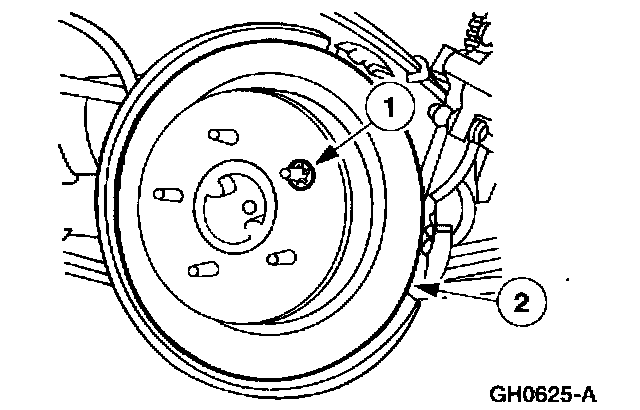

1. Remove the press-on keeper nuts, if so equipped.
2. Remove the brake disc.





3. Inspect the brake disc.
^ Install a new brake disc if not within specification.

Installation





1. Install the brake disc.
2. Install the rear disc brake caliper.
