Rear

Removal

1. Note: It is not necessary to remove the hydraulic brake line when performing this procedure.

Remove the rear disc brake caliper.





2. CAUTION: Do not allow grease, oil, brake fluid or other contaminants to contact the brake pads.

Remove the brake pads.

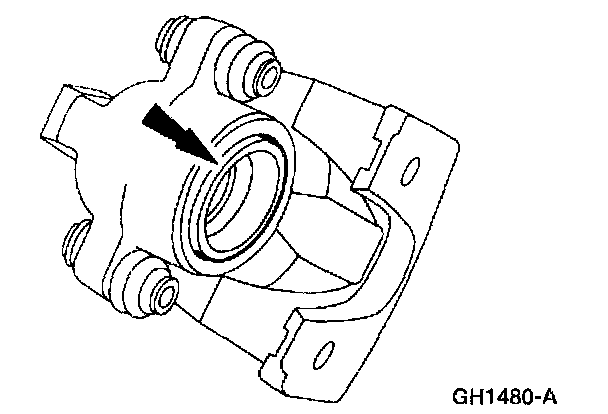

3. Retract the caliper piston into the rear disc brake caliper.





4. Remove the slippers.

Installation





1. Install the slippers.





2. CAUTION: New brake pads should be installed in full axle sets only. Do not install new brake pads on only one side of the vehicle.

Install the brake pads.
3. Install the rear disc brake caliper.
4. Verify correct brake operation.
