Brake Caliper Anchor Plate

Removal
1. Remove the pads.

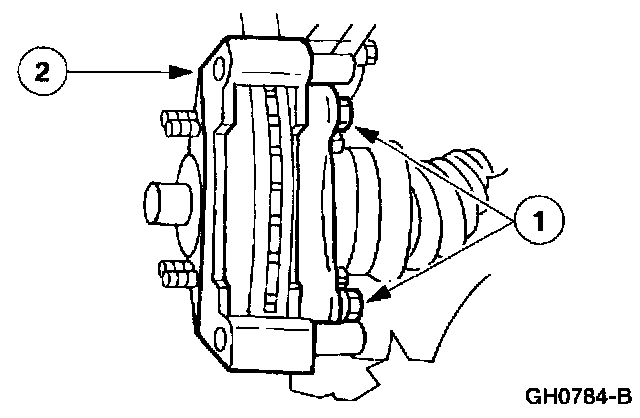

2. Remove the front disc brake caliper anchor plate.
1. Remove the two front disc brake caliper anchor plate bolts.
2. Remove the front disc brake caliper anchor plate.

Installation

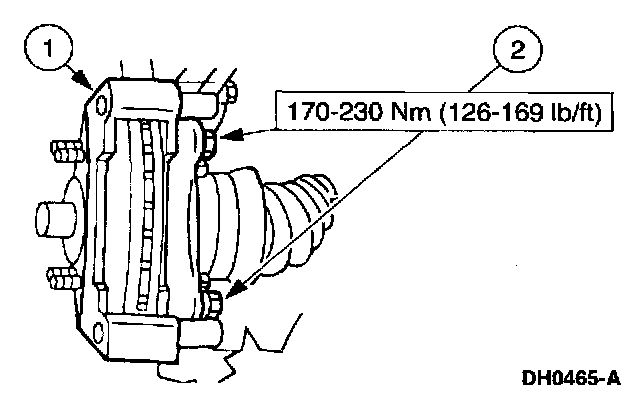

1. Install the front disc brake caliper anchor plate.
1. Position the front disc brake caliper anchor plate.
2. Install the front disc brake caliper anchor plate bolts.
2. Install the pads.
