Third Row

Safety Belt Bolt Bit:

SPECIAL SERVICE TOOL(S)

DISASSEMBLY
1. Disassemble the third row seat. For additional information, refer to Seat-Third Row.

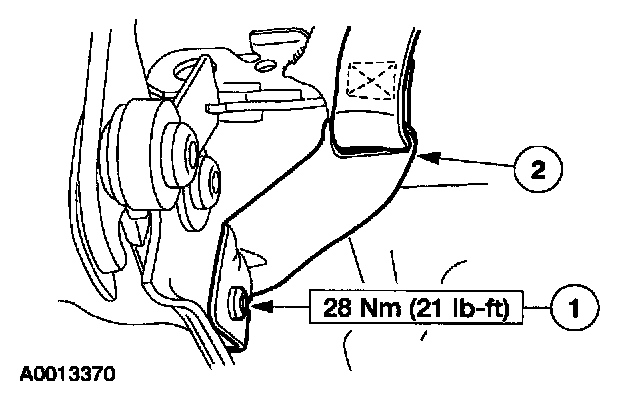

2. Remove the tether anchor.
1 Remove the bolt.
2 Remove the tether anchor.

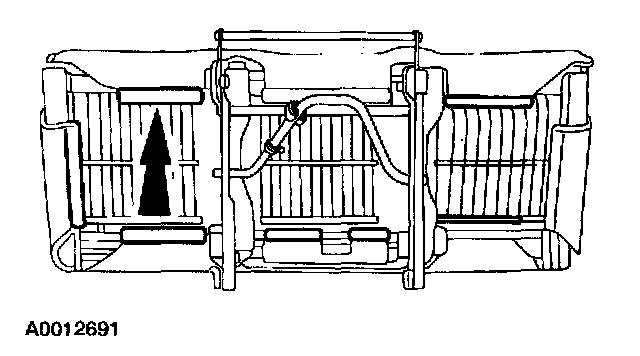

3. Remove the seat cushion trim cover and foam from the seat cushion frame.
^ Unhook the J-clips.

4. Remove the seat cushion trim cover from the seat cushion foam.

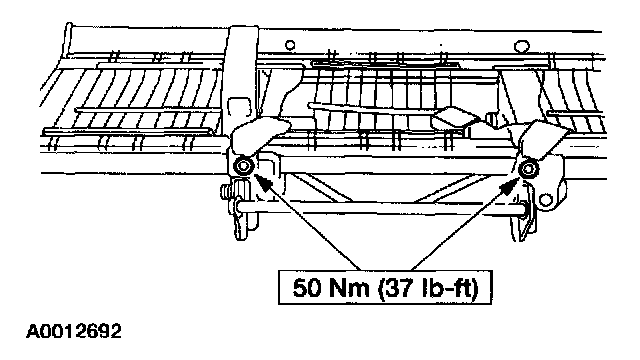

5. Remove the safety belts.
^ Using special tool 501-010 (T77L-2100-A), remove the two bolts.

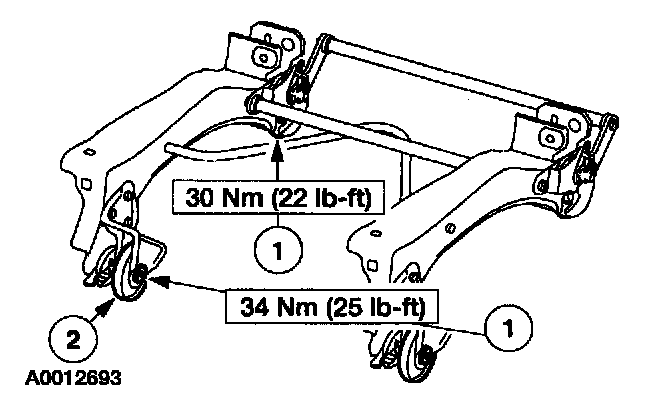

6. Remove the seat riser.
^ Remove the nuts.







7. Remove the four seat rollers.
1 Remove the four bolts.
2 Remove the four wheels.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
2. Check the restraint system for correct operation.
