Ford Truck
>>
2000
>>
Expedition 2WD V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Power Seat Switch
>>
Testing and Inspection
>>
Driver
>>
With Memory
With Memory

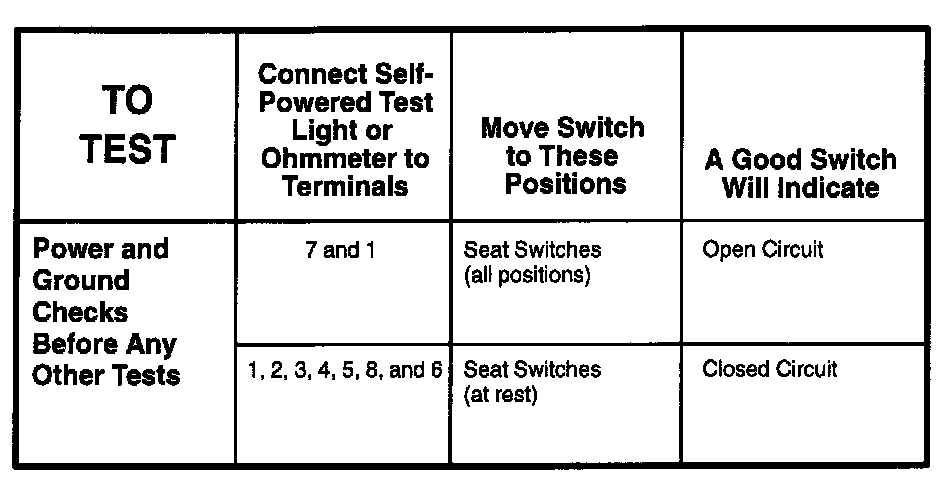

Component Testing Procedure (Part 1 Of 2):

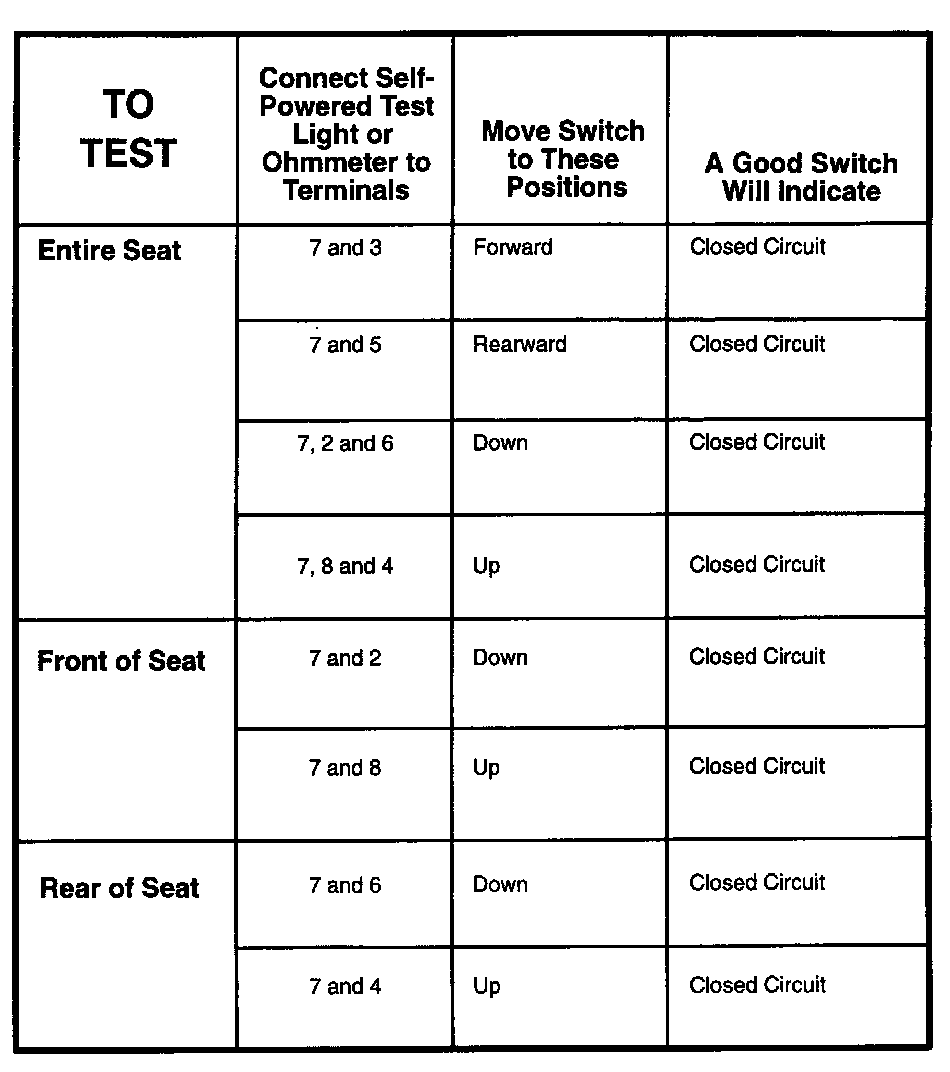

Component Testing Procedure (Part 2 Of 2):

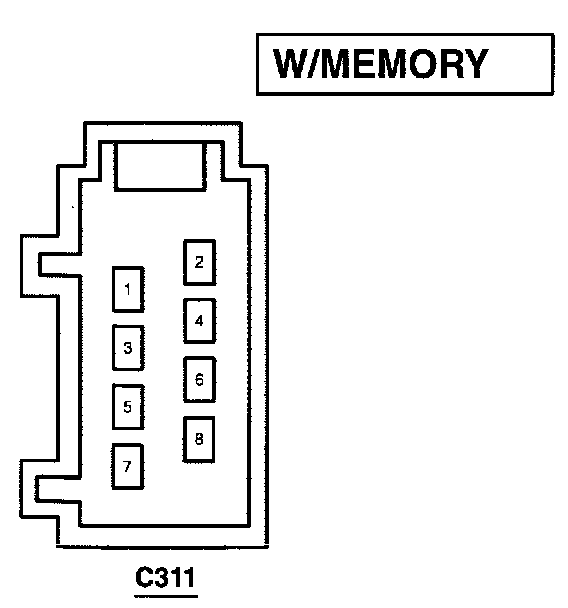

Terminals:

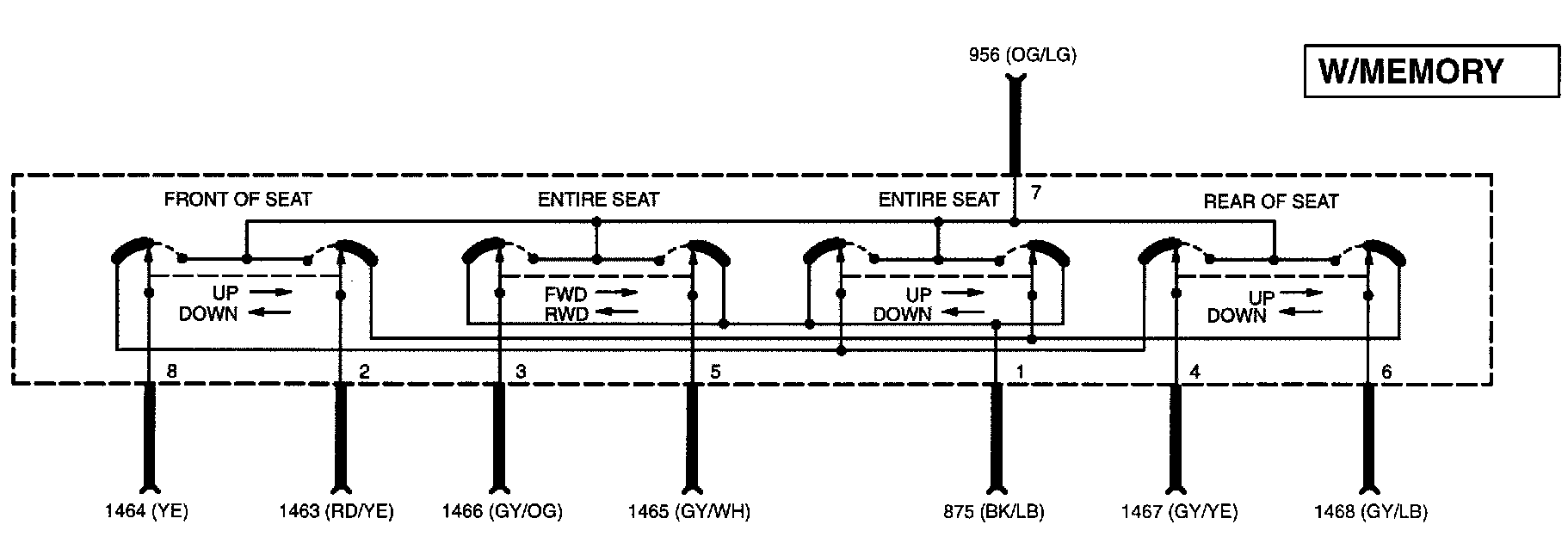

Schematic:
