Cluster Finish Panel

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.







2. Remove the instrument panel center finish panel.
1 Rotate the instrument panel center finish panel vents inward.
2 Through the vent openings, grasp the instrument panel center finish panel and pull outward.
3 Remove the instrument panel center finish panel.
^ Disconnect the electrical connectors.

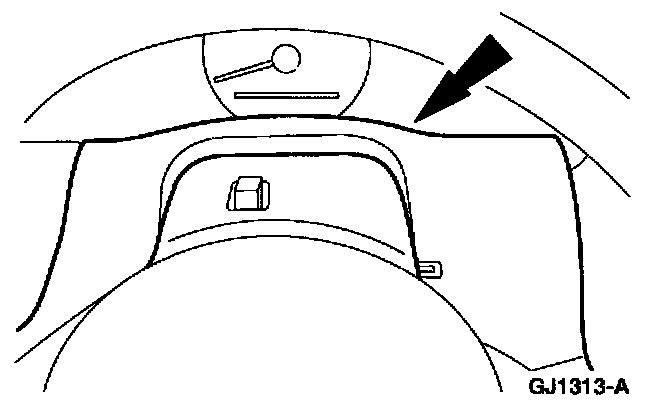

3. Remove the instrument panel upper steering column cover.

NOTE: On automatic transmissions, move the shift lever to the 1 position to make removal easier.

4. Remove the headlamp switch. For additional information, refer to Lighting and Horns.

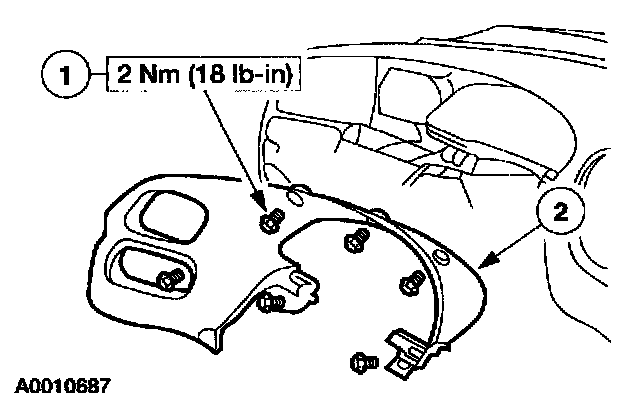

5. Remove the instrument panel cluster finish panel.
1 Remove the screws.
2 Remove the instrument panel cluster finish panel.
^ Disconnect the electrical connector(s).

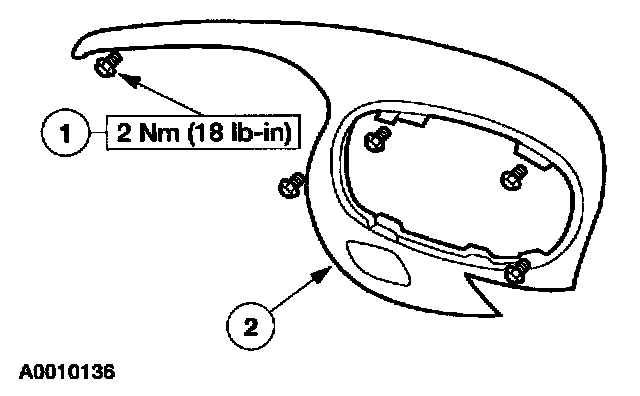

6. Remove the instrument cluster panel.
1 Remove the screws.
2 Remove the instrument cluster panel.
^ If equipped, disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
