Front

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

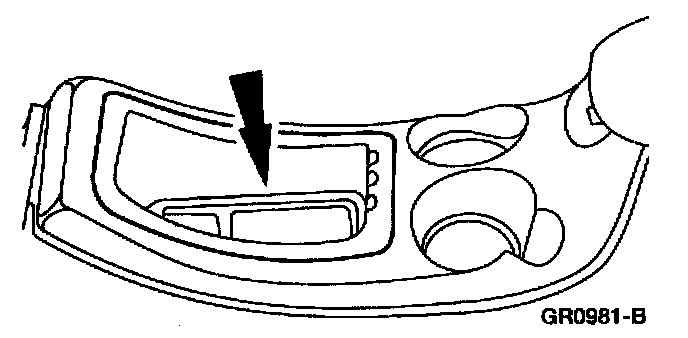

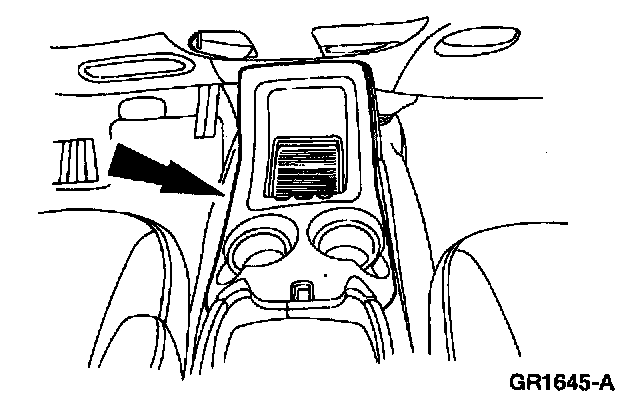

2. If equipped, remove the console finish panel mat.

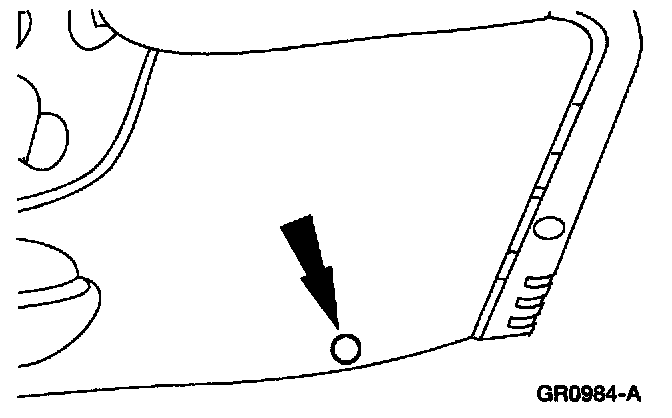

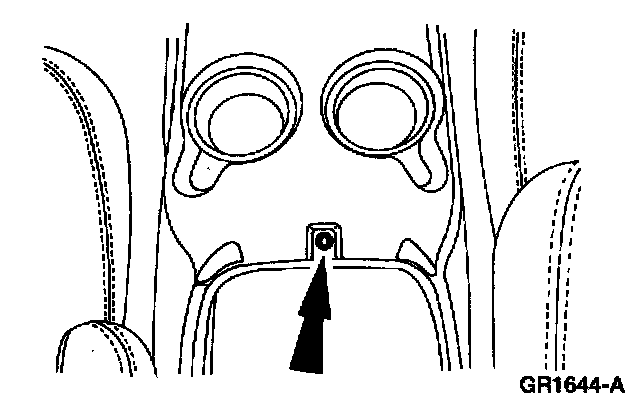

3. If equipped, remove the console finish panel front screw.

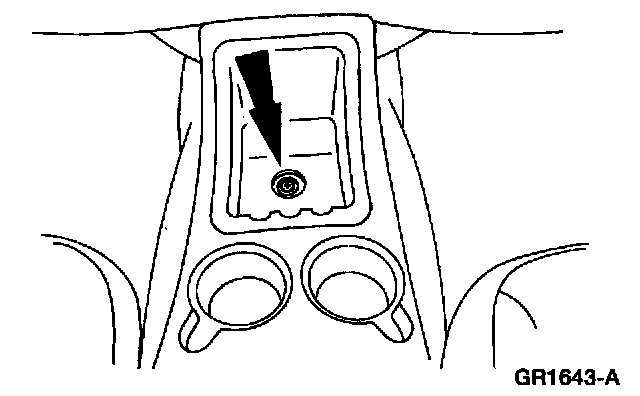

4. Remove the console finish panel rear screw.

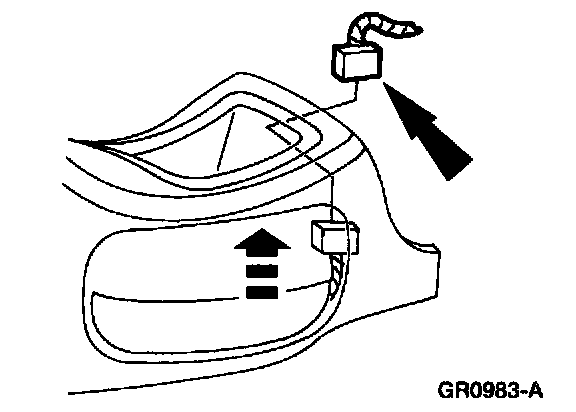

5. Remove the console finish panel.
^ If equipped, disconnect the parking aid switch electrical connector.
^ If equipped, disconnect the navigation display unit electrical connectors.
^ If equipped, disconnect the auxiliary A/C control electrical connectors.

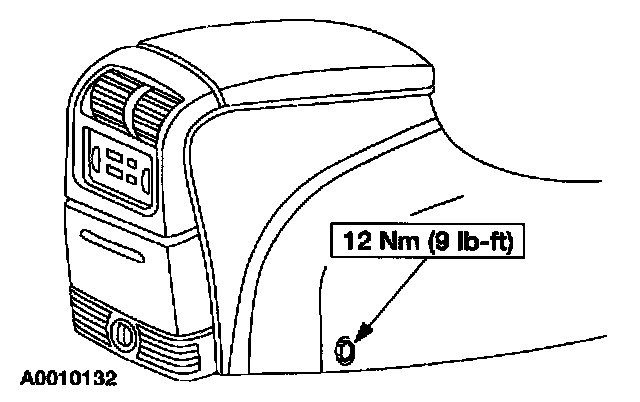

6. Remove the front floor console front bolts.







7. Disconnect the front floor console electrical connector.
^ If equipped, disconnect the cellular phone electrical connector.







8. Remove the two front floor console rear bolt covers.

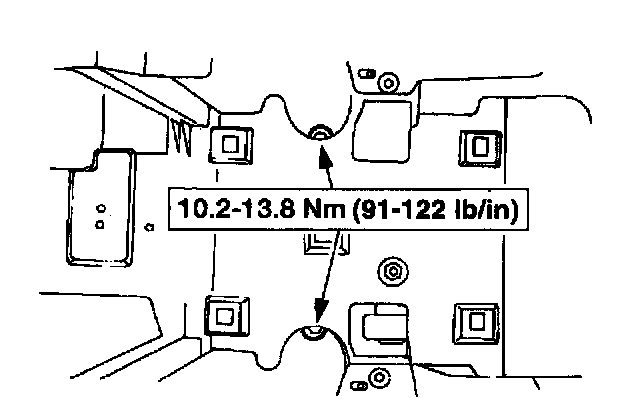

9. Remove the two front floor console rear bolts.

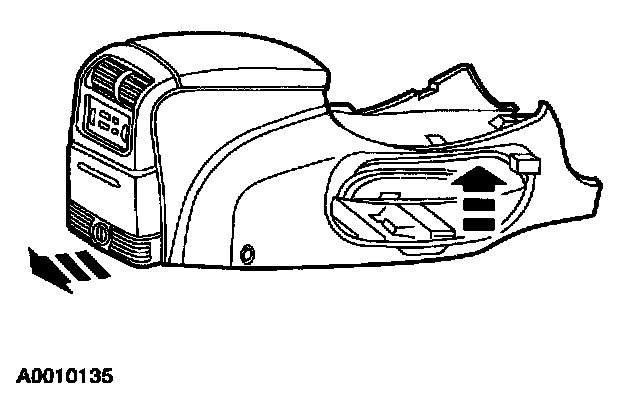

10. Remove the floor console.
^ Lift the front of the floor console and slide rearward to disengage the floor brackets.

INSTALLATION
1. To install, reverse the removal procedure.
