Remote Control: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

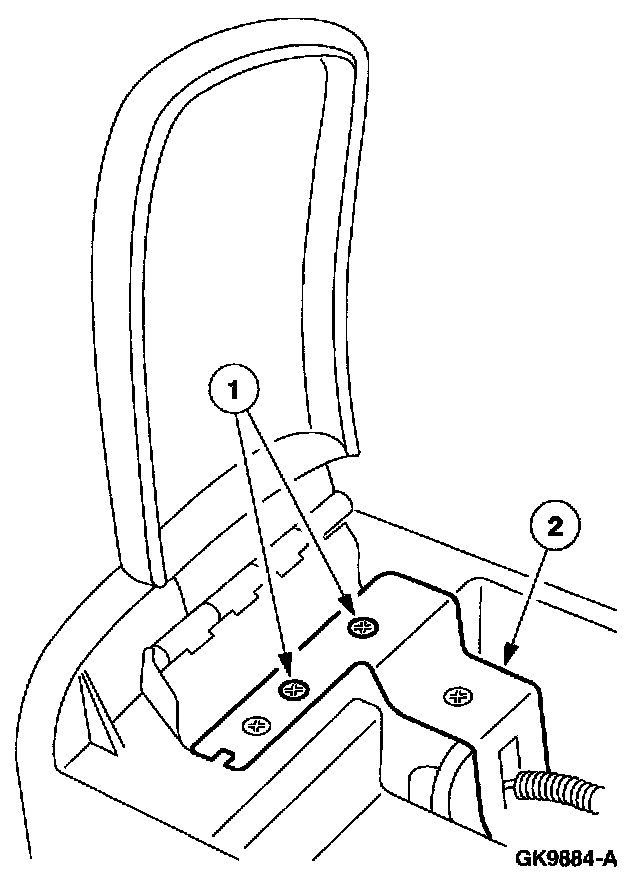

2. Remove the cellular phone holder (if equipped).
1 Remove the screws.
2 Remove the cellular phone holder.

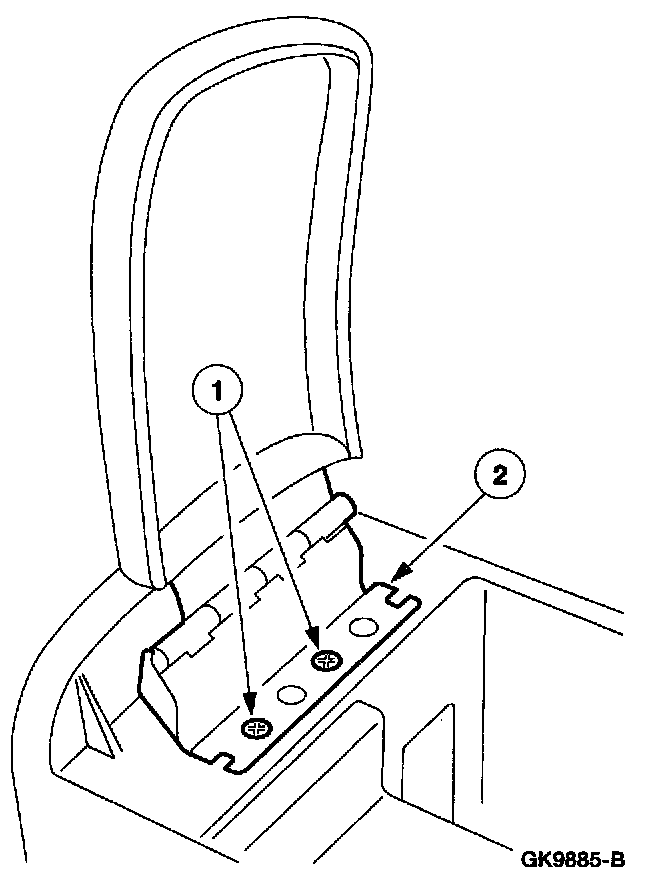

3. Remove the center console lid.
1 Remove the screws.
2 Remove the center console lid.







4. Disconnect the console rear panel.
1 Remove the upper screws.
2 Lower the cup holder.
3 Remove the four rear screws.

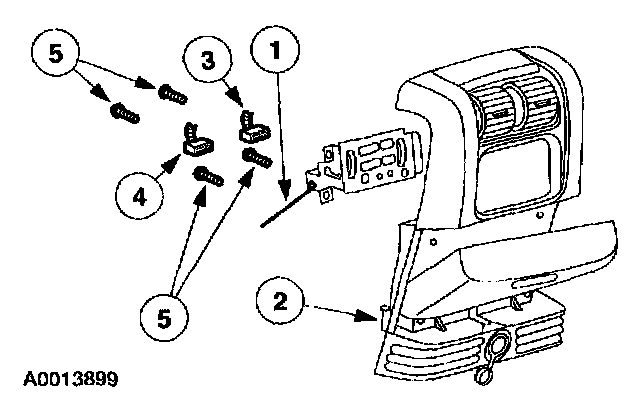

5. Remove the rear integrated control panel.
1 If equipped, disconnect the floor/panel control cable at the control head.
2 Disconnect the power point electrical connector.
3 If equipped, disconnect the blower motor control electrical connector.
4 Disconnect the radio control electrical connector.
5 Remove five screws.

INSTALLATION
1. To install, reverse the removal procedure.
