Ford Truck
>>
2000
>>
Excursion 4WD V8-5.4L SOHC VIN L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Window Control Switch
>>
Left
>>
Rear
Rear

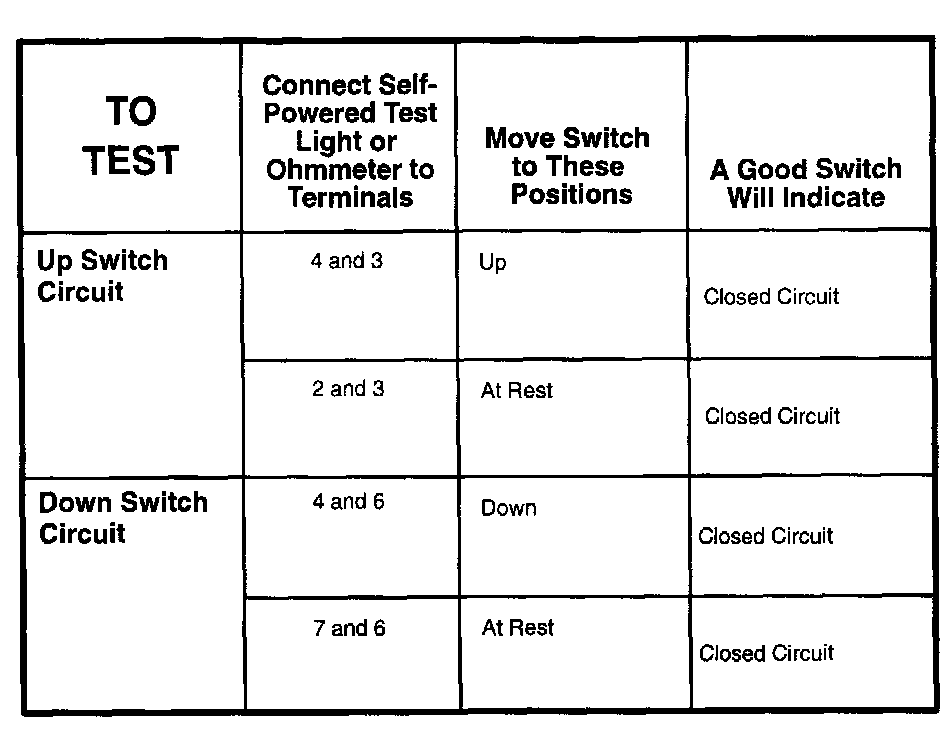

Component Testing Procedure:

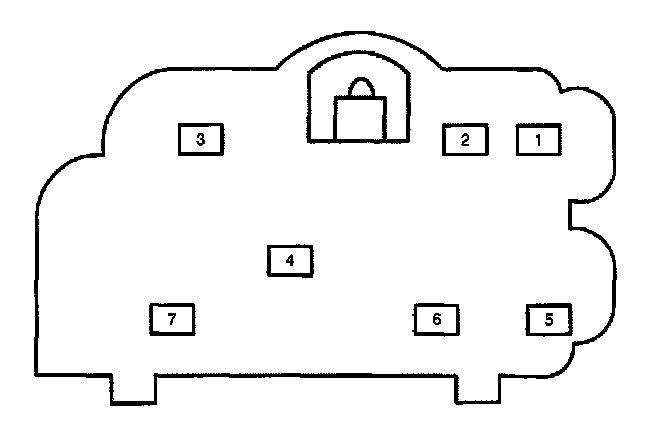

Terminals:

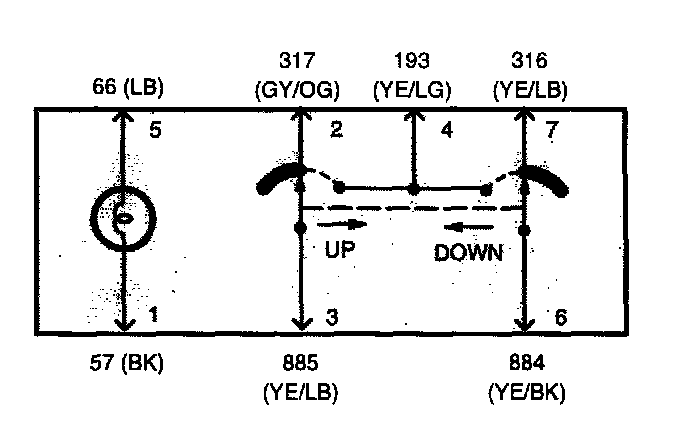

Schematic:
