Canister Purge Control Valve: Description and Operation

EVAP Canister Purge Valve

EVAP Canister Purge Valve:

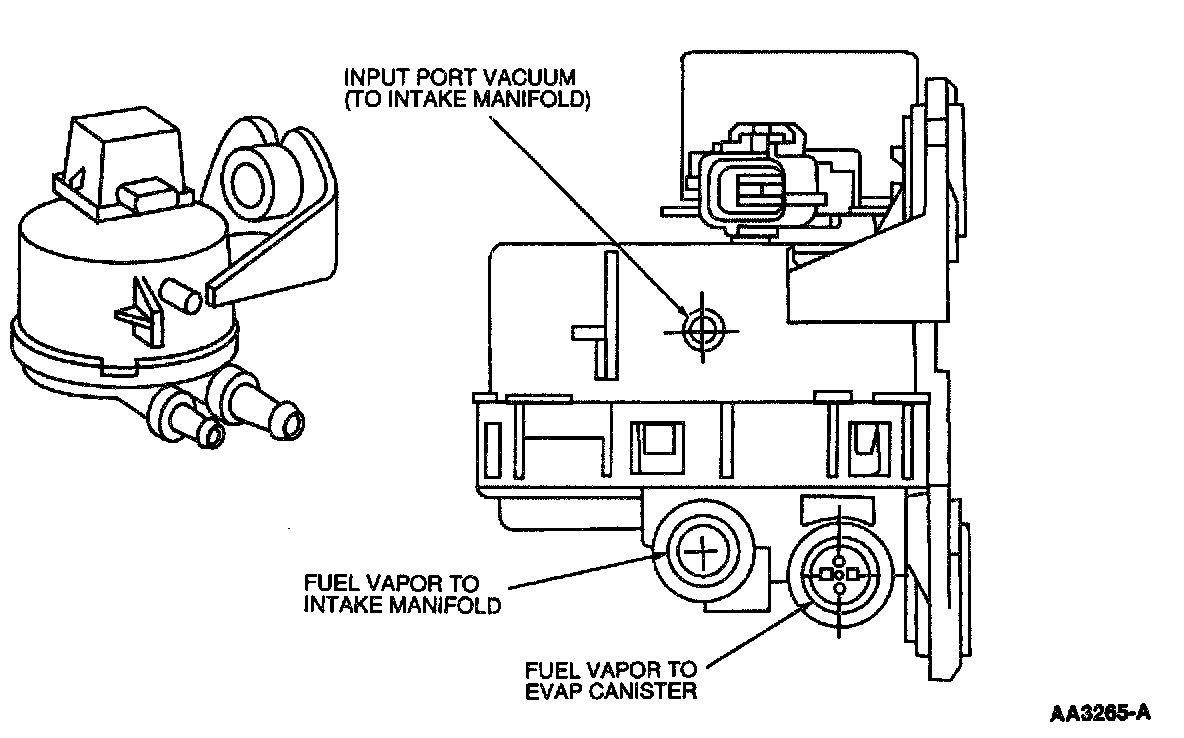

Focus, Escort, Taurus/Sable, Mustang, and LS6/LS8 (EVAP Canister Purge Valve):

The EVAP canister purge valve is the part of the Enhanced EVAP system that is controlled by the PCM. This valve controls the flow of vapors (purging) from the EVAP canister to the intake manifold during various engine operating modes.

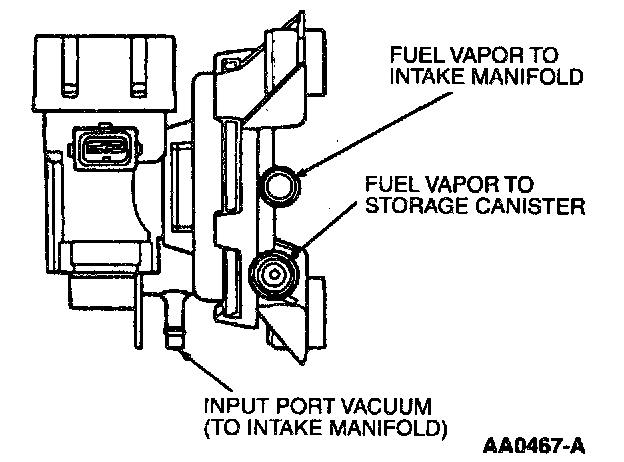

The evaporative emission canister purge valve:
^ is normally closed.
^ regulates the purging of the evaporative emissions (EVAP) canister.
^ is controlled by the Powertrain Control Module (PCM).
The EVAP canister purge valve is controlled by the Powertrain Control Module (PCM). The EVAP canister purge valve controls the flow of fuel vapors from the EVAP canister to the engine intake manifold during various engine operating modes.
