Ford

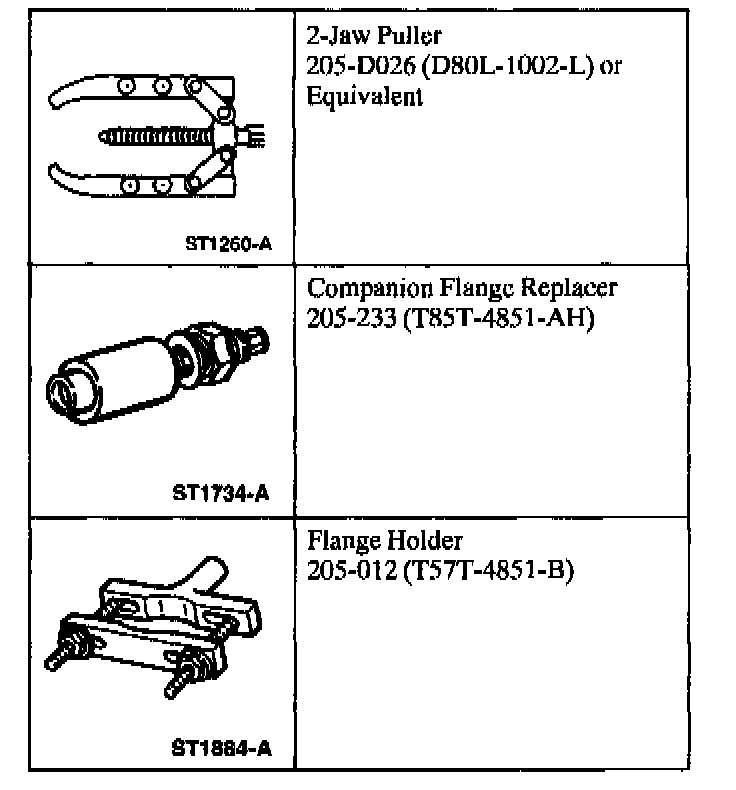

Special Tools:
Removal
1. Note: The rear wheels and brake calipers must be removed to prevent brake drag during drive pinion bearing preload adjustment.
Remove the rear brake calipers.
2. Remove the driveshaft.

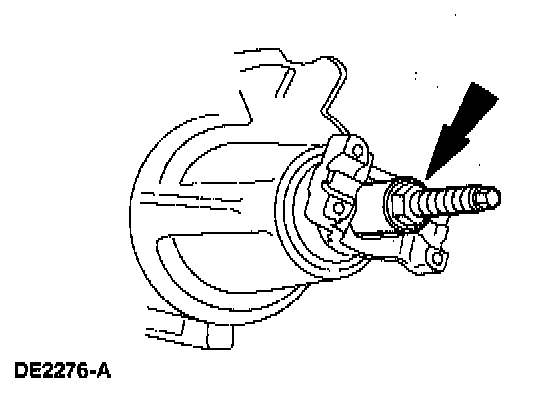

3. Install a Nm (inch-pound) torque wrench on the pinion nut, and record the rotational torque required to maintain rotation of the pinion through several revolutions.
4. CAUTION: After removal of the pinion nut, discard it. A new nut must be used for installation.
Use the Flange Holder to hold the pinion flange while removing the pinion nut.

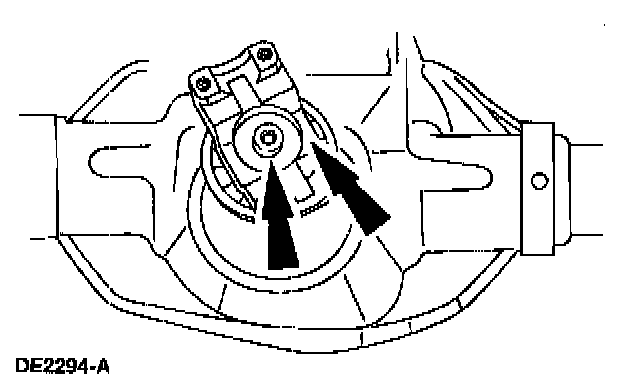

5. Mark the pinion flange in relation to the drive pinion stem to ensure proper alignment during installation.

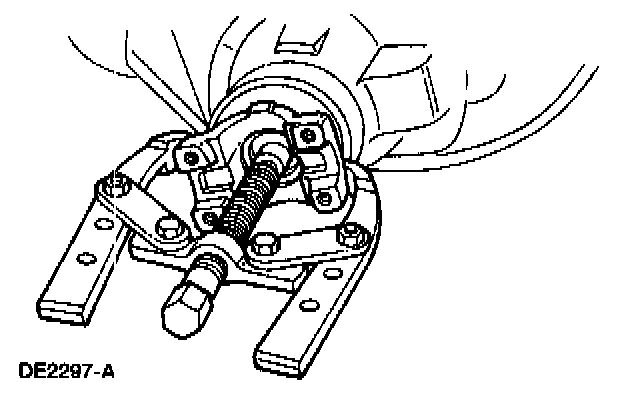

6. Use the 2-Jaw Puller to remove the pinion flange.
Installation
1. Lubricate the pinion flange splines.
^ Use SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.
2. Note: Disregard the scribe marks if a new pinion flange is being installed.

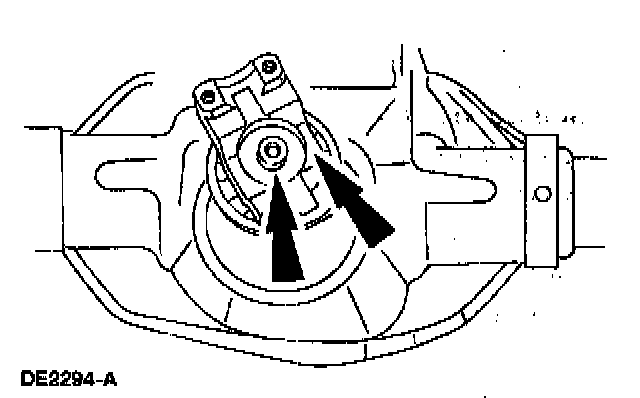

Align the pinion flange with the drive pinion shaft.

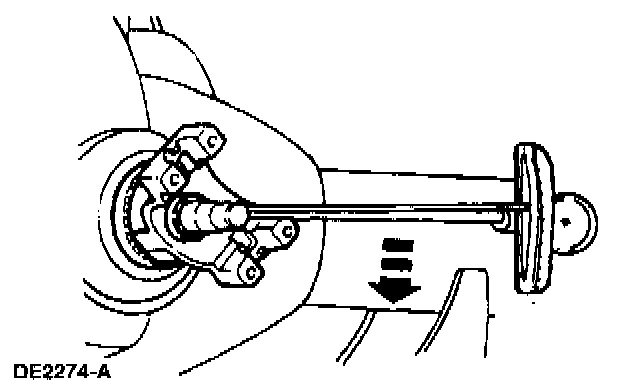

3. With the pinion flange in place in the rear axle housing, install the pinion flange using the Companion Flange Replacer.
4. Position the new pinion nut.
5. CAUTION: Under no circumstances is the pinion nut to be backed off to reduce preload. If reduced preload is required, a new collapsible spacer and pinion nut must be installed.

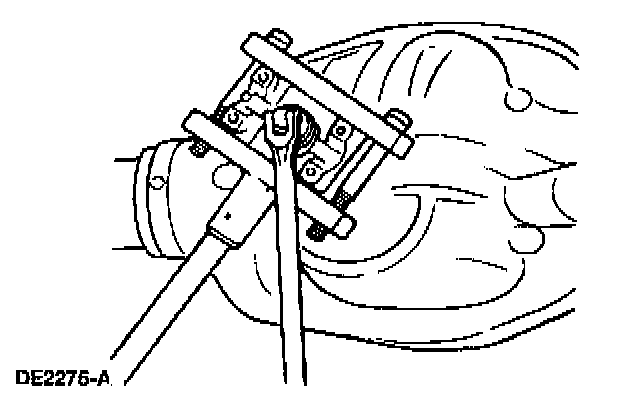

Use the Flange Holder to hold the pinion flange while tightening the pinion nut.
^ Tighten the pinion nut, rotating the pinion occasionally to make sure the cone and roller bearings are seating properly. Take frequent cone and roller bearing torque preload readings until the original recorded preload reading is obtained by rotating the pinion with a Nm (inch-pound) torque wrench.
^ If the original recorded preload is lower than specifications, tighten to the appropriate specification for used bearings. If the preload is higher than specification, tighten the nut to the original reading as recorded.
6. Install the driveshaft.
7. Install the brake calipers.
