Rear

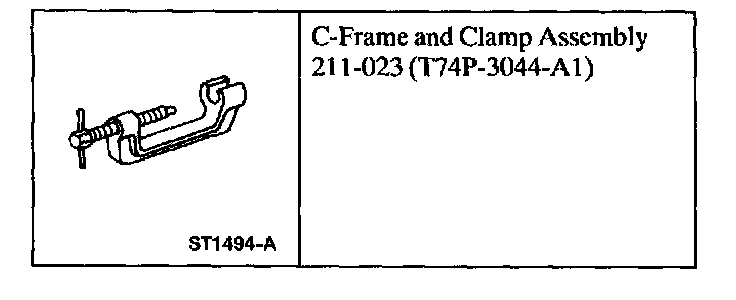

Special Tool(s):

Special Tool(s)

Removal
1. Raise and support the vehicle.
2. Remove the wheel and tire assembly.
3. On vehicles equipped with dual rear wheels, go to Step 7.
4. Remove the disc brake caliper and rotor.
5. Remove the rear wheel hub assembly.

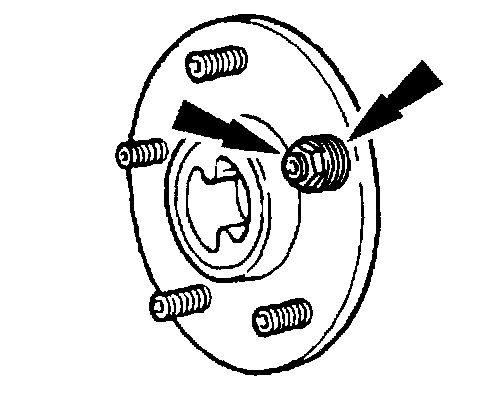

6. Using a suitable press, remove the lug bolt from the wheel hub and discard.

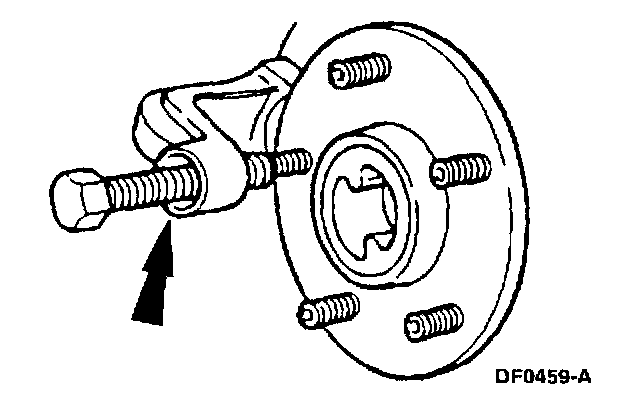

7. Note: For vehicles equipped with dual rear wheels, use the C-Frame and Clamp Assembly Tool to remove the lug bolt on the vehicle.

Remove the lug bolt from the wheel hub and discard.

Installation

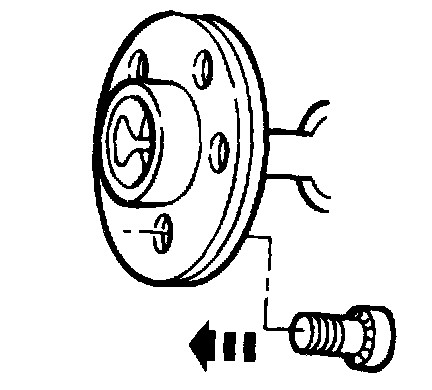

1. Using a suitable press, install the new lug bolt aligning the serrations in the wheel hub flange made by the original lug bolt.





2. On vehicles with dual rear wheels, install the new lug bolt aligning the serrations in the wheel hub flange made by the original lug bolt.
- Place four flat washers over the outside end of the lug bolt and thread a standard lug nut with the flat side against the washers.
- Tighten the lug nut until the lug bolt head seats against the back side of the hub flange.





3. Remove the lug nut and flat washers.
4. On vehicles with dual rear wheels, go to Step 7.
5. Install the rear wheel hub assembly.
6. Install the disc brake caliper and rotor.
7. Install the wheel and tire assembly.
8. Tower the vehicle.
