Home >> Ford Truck >> 2000 >> Excursion 2WD V10-6.8L VIN S >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures

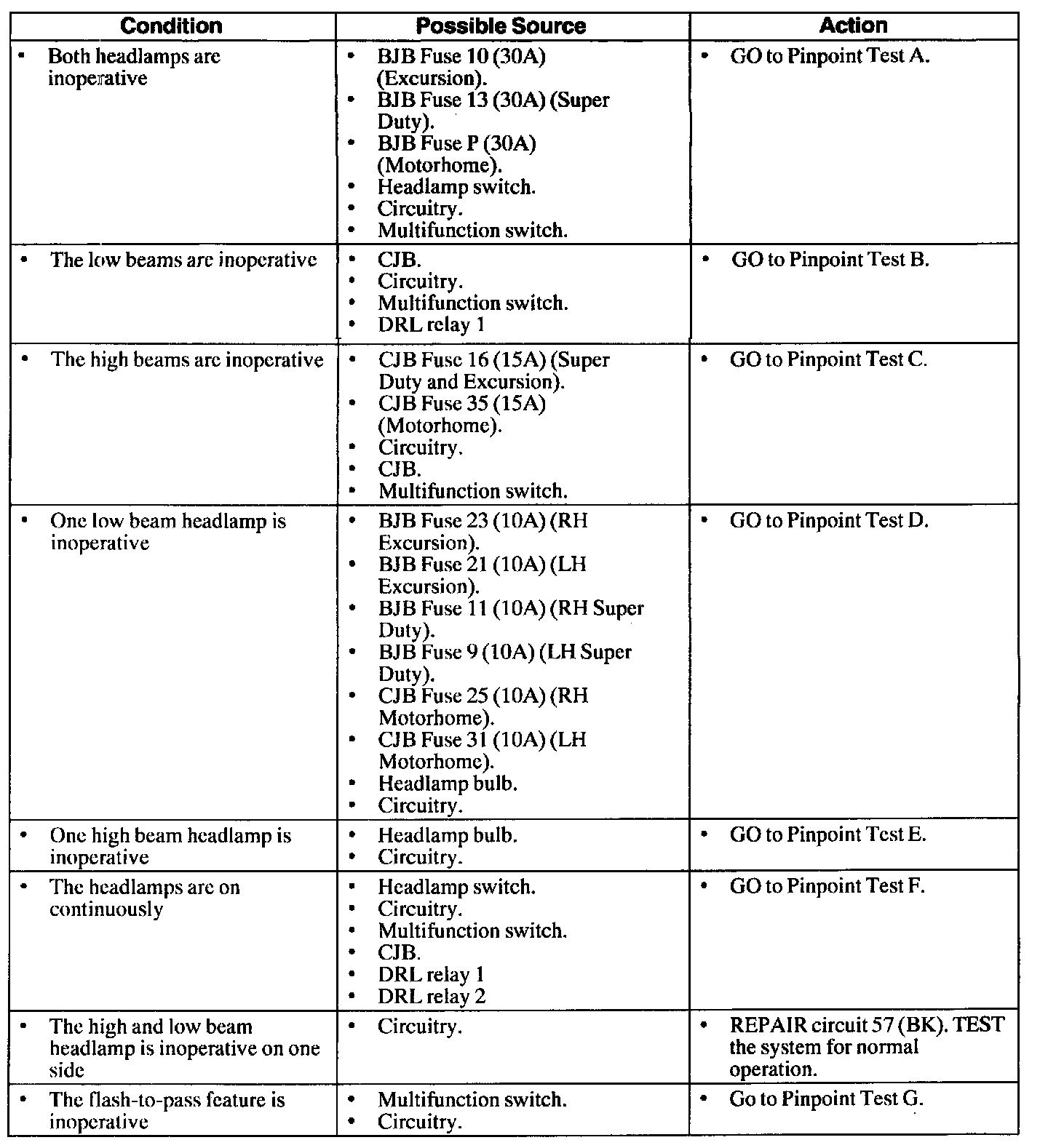

Symptom Related Diagnostic Procedures






NOTE: Refer Wiring Diagrams for the connector numbers stated in the pinpoint tests.
