Hazard Warning Flasher: Locations

G202

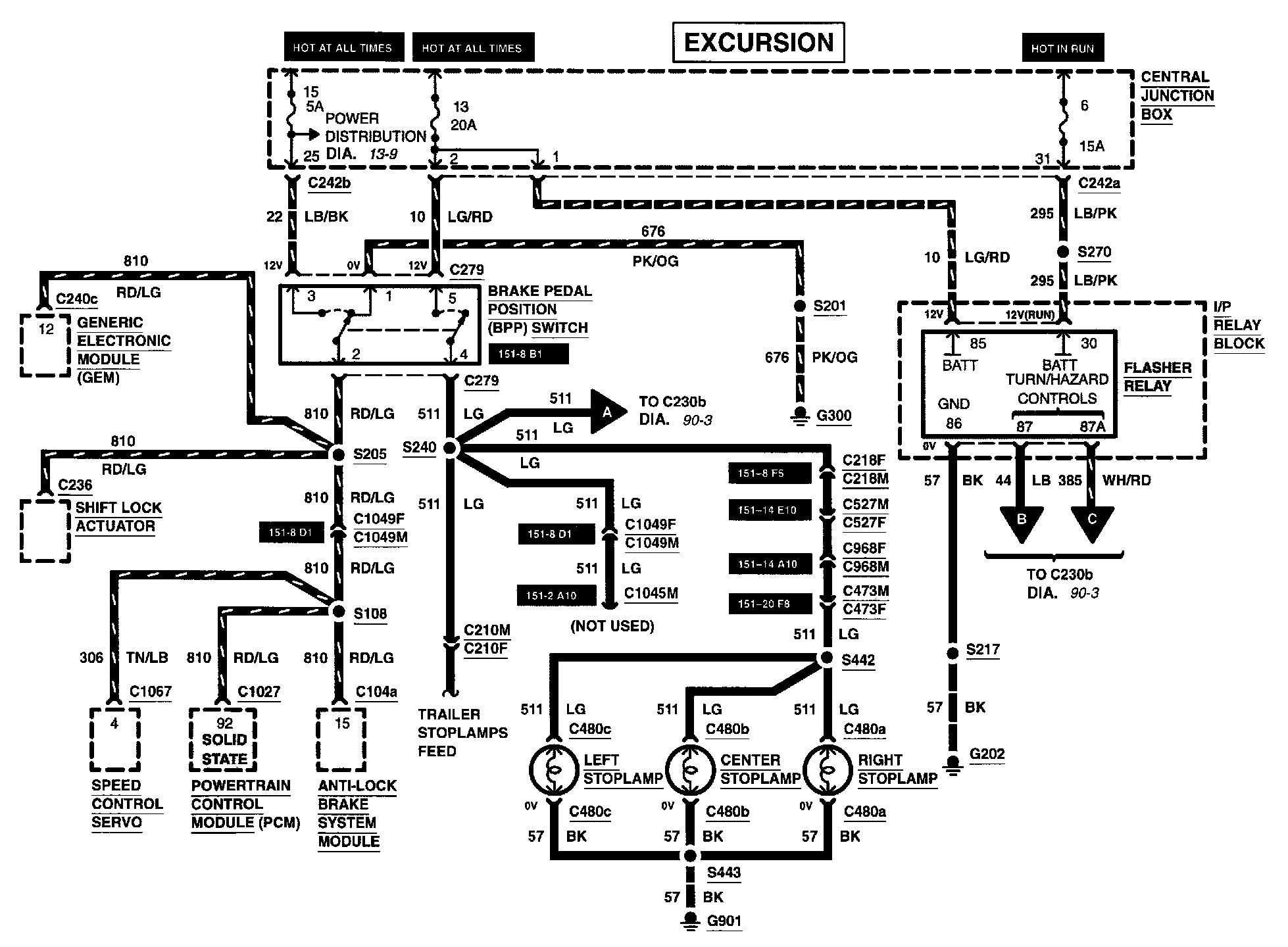

Diagram 90-1 (Excursion Only):

Excursion

Diagram 90-2 (Pickup Only):

Pickup

Near center of the Instrument Panel. Instrument panel relay box is grounded at G202. Wire color code is, RD/WH, WH/LB, WH/RD/ BLK and LB.
