Floor Duct

REMOVAL
1. Remove the plenum chamber; refer to Plenum Chamber. Refer to: Heating and Air Conditioning, Housing Assembly HVAC, Service and Repair, Plenum Chamber, Plenum Chamber

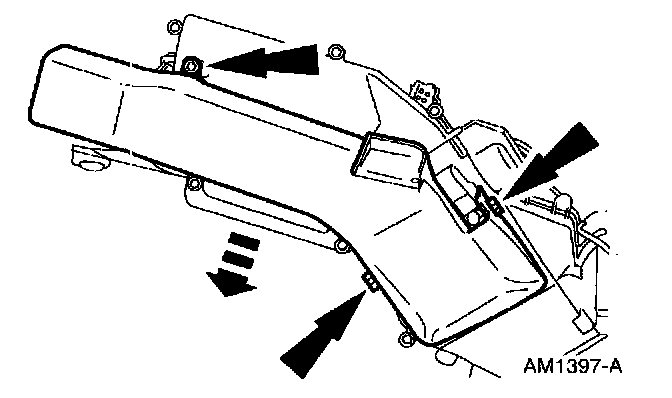

2. Remove the three screws and remove the heater outlet floor duct.


INSTALLATION







1. Follow the removal procedure in reverse order.
