Coolant Reservoir: Service and Repair

Degas Bottle - Pickup Chassis

Removal and Installation
1. Partially drain the cooling system.

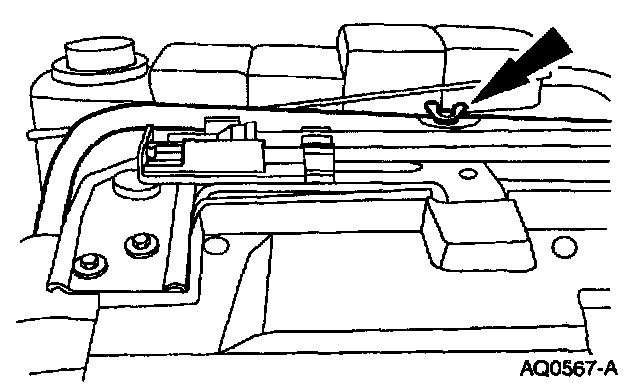

2. Remove the wing bolt and lug wrench.

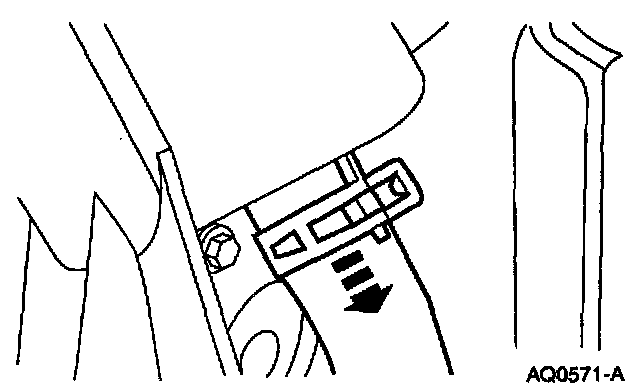

3. Squeeze the clamp and remove the overflow hose.

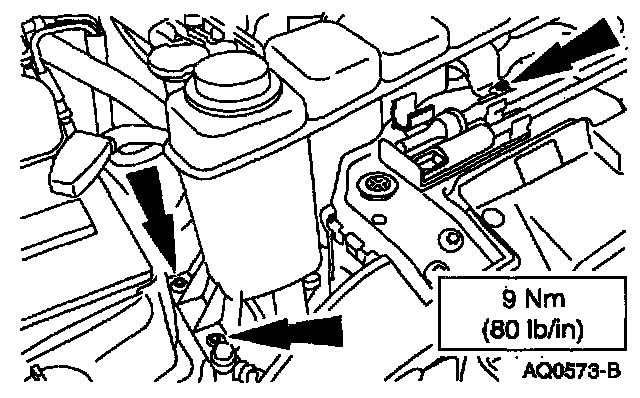

4. Remove the bolts.

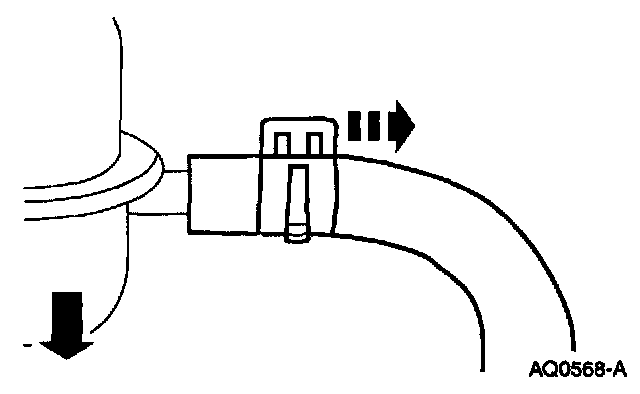

5. Squeeze the clamp and remove the degas bottle supply hose.





6. Remove the degas bottle.
