Removal and Installation

Removal
1. Disconnect the battery ground cable.
2. Remove the air cleaner housing.

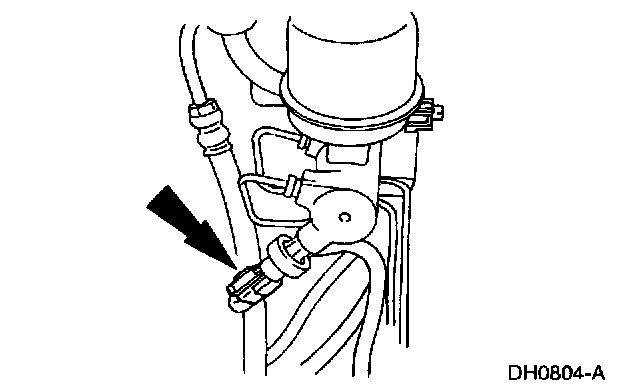

3. Disconnect the fluid level sensor connector.

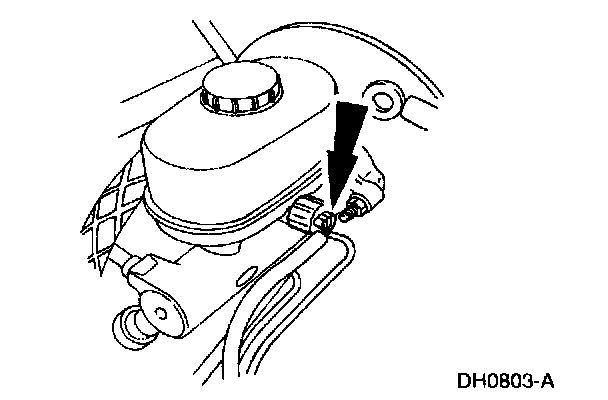

4. Disconnect the brake pressure switch connector, if so equipped.

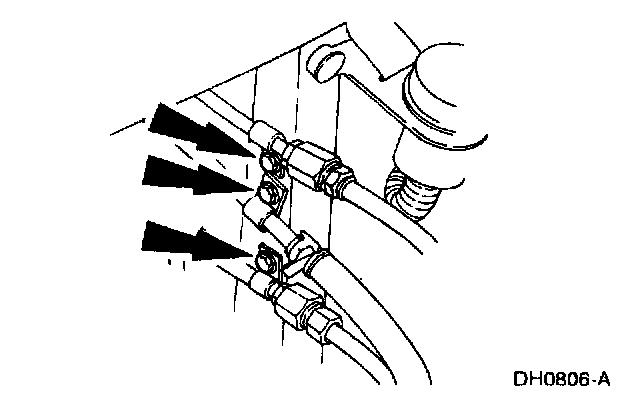

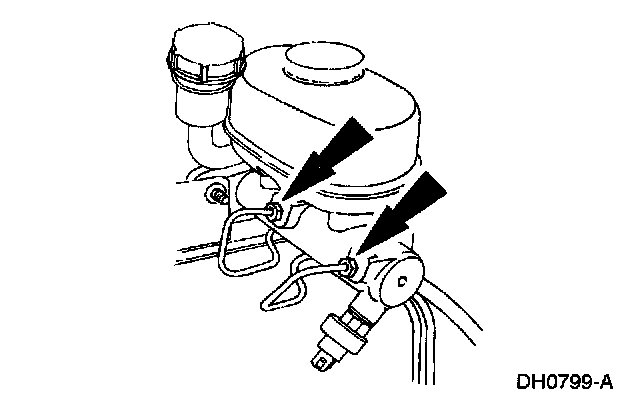

5. Disconnect the brake tubes.

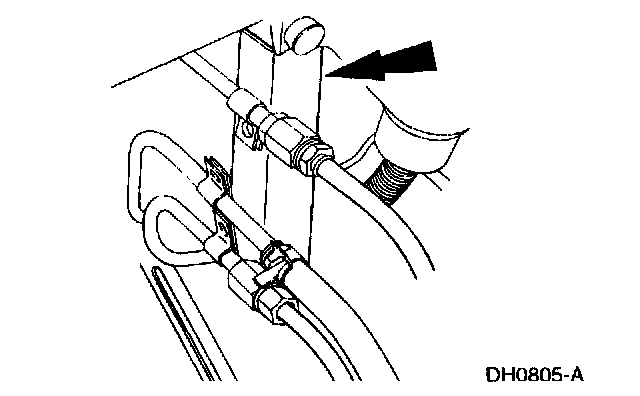

6. On vehicles with Hydro-Boost, remove the bolts retaining the power steering tubes to the bracket.

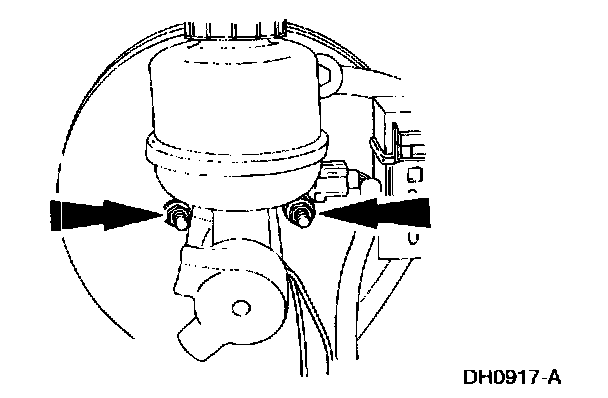

7. Remove the brake master cylinder nuts.





8. On vehicles with Hydro-Boost, remove the power steering tube retaining bracket.
9. Remove the brake master cylinder.

Installation

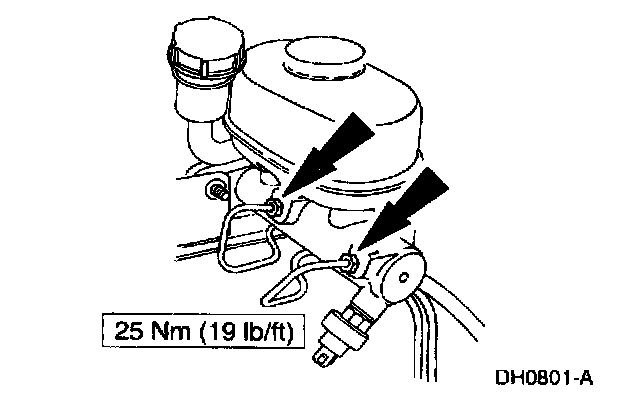

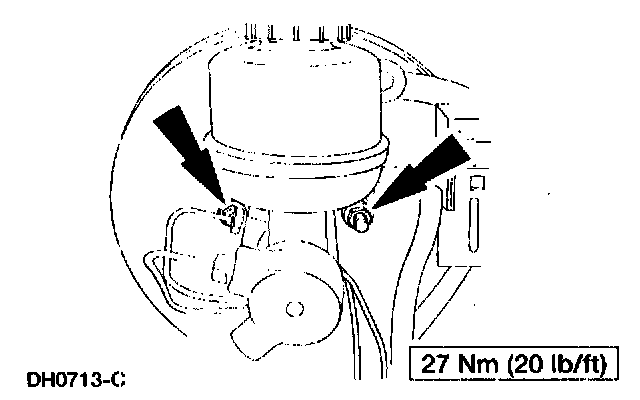

1. Follow the removal procedure in reverse order.
- Bleed the brake system.
