EGR Tube: Service and Repair
REMOVAL1. Remove the engine cover.

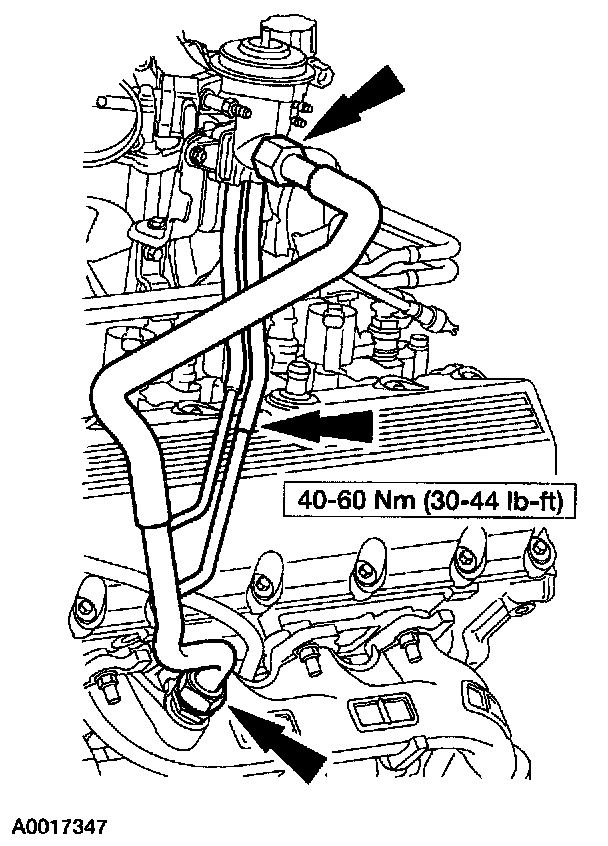

2. Remove the EGR valve tube.
^ Disconnect the upper and lower fittings.
^ Disconnect the two hoses.
^ Remove the tube.
INSTALLATION
1. To install, reverse the removal procedure.
1. Remove the engine cover.
2. Remove the EGR valve tube.
^ Disconnect the upper and lower fittings.
^ Disconnect the two hoses.
^ Remove the tube.
INSTALLATION
1. To install, reverse the removal procedure.
