Transmission Mount: Service and Repair

Special Tools:

Removal
1. Raise and support the vehicle.





2. Remove the nuts.





3. Secure the (A) High Lift Transmission Jack with the (B) E40D Transmission Jack Adapter to the (C) transmission.

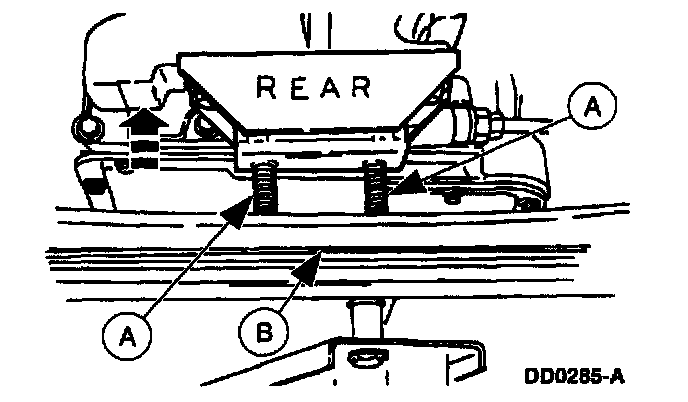

4. Raise the transmission jack until the (A) retainer studs are separated from the (B) transmission.





5. Remove the (A) bolts and the (B) retainer.

Installation





1. Install the (A) retainer and the (B) bolts.





2. Lower the transmission jack while aligning the (A) retainer studs with the holes in the (B) transmission support crossmember. Allow the full weight of the transmission to rest on the transmission support crossmember.





3. Install the nuts.





4. Remove the (A) High Lift Transmission Jack with the (B) E40D Transmission Jack Adapter from the (C) transmission.





5. Reinstall the transmission fluid pan-to-case retaining bolts removed to install the jack adapter. '
6. Remove the supports and lower the vehicle.
