EGR Tube: Service and Repair

REMOVAL
1. Remove the engine cover.
2. Remove the air cleaner outlet tube. For additional information, refer to Fuel Delivery and Air Induction.

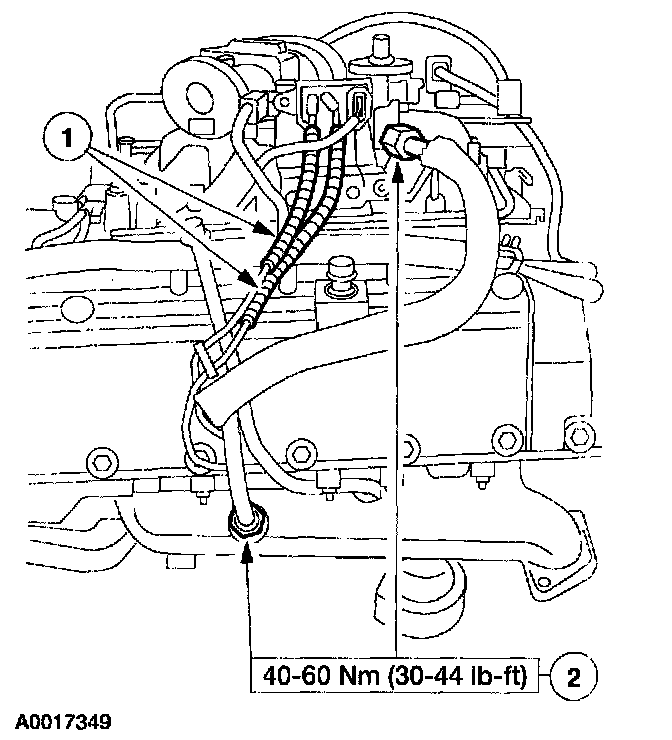

3. Remove the Exhaust Gas Recirculation (EGR) to exhaust manifold tube.
1. Remove the two differential pressure feedback EGR sensor hoses.
2. Disconnect the EGR valve tube fittings.

INSTALLATION
1. To install, reverse the removal procedure.
