Rear

Pads - E-350

Removal
1. Remove the brake master cylinder filler cap. Check brake fluid level in brake master cylinder reservoir. Remove fluid until brake master cylinder reservoir is half full.
2. Raise and support the vehicle.
3. Remove the wheel and tire assembly.

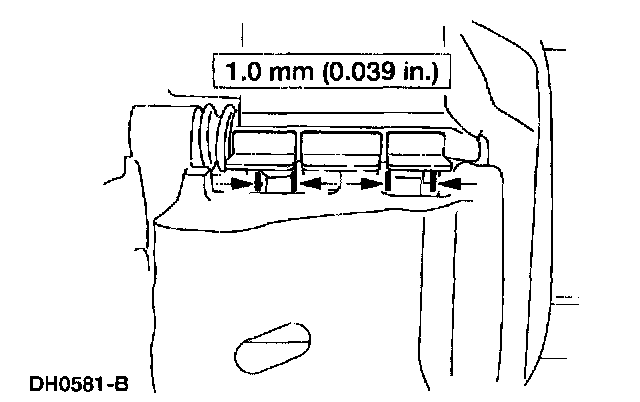

4. Inspect the brake pads for wear or contamination. If worn, damaged or past specification, install new components.

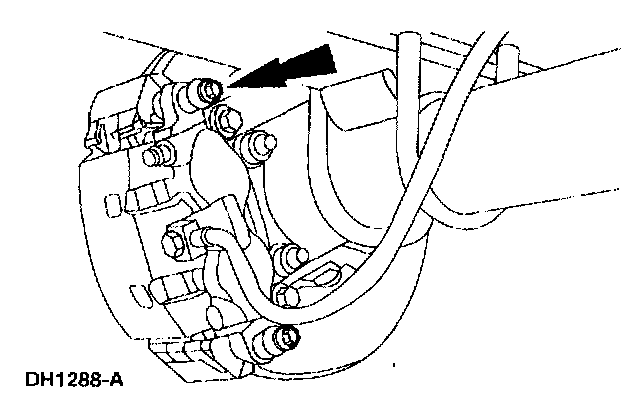

5. Remove the caliper pin bolts.





6. CAUTION: Never allow the rear disc brake caliper to hang from the brake hose. Provide suitable support.

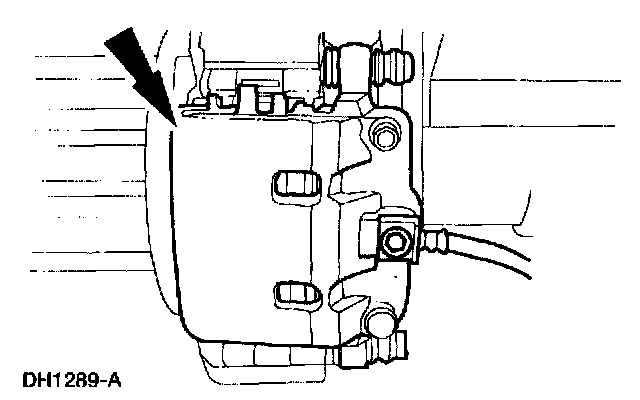

Remove the rear disc brake caliper.

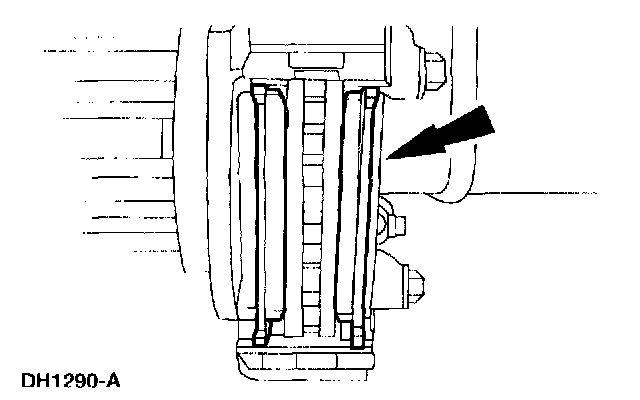

7. Remove the brake pads and rail clips.

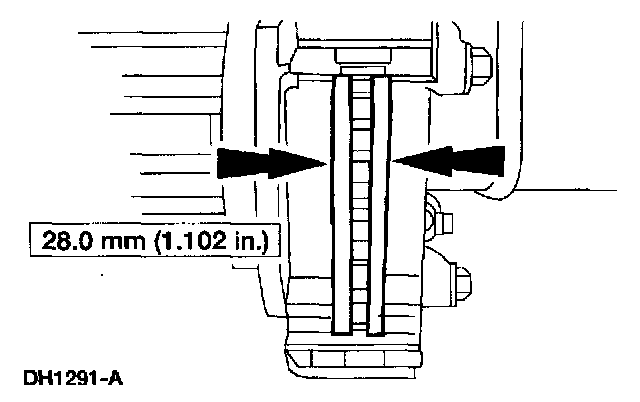

8. Measure the rear brake disc thickness.
- Install new rear brake disc if not within specification.





9. Inspect the disc brake caliper for leaks.
- If leaks are found, disassembly is required.

Installation

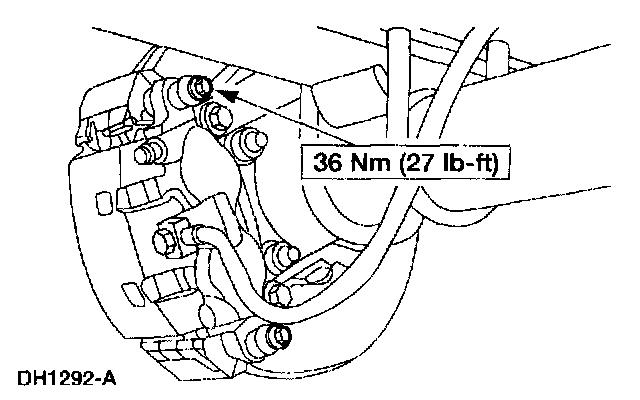

1. Follow the removal procedure in reverse order,
