Brake Caliper Support Bracket

Brake Caliper Support Bracket - E-350

Removal
1. Remove the rear disc brake caliper anchor plate.
2. Remove the brake disc and hub.
3. Remove the parking brake shoes and linings.

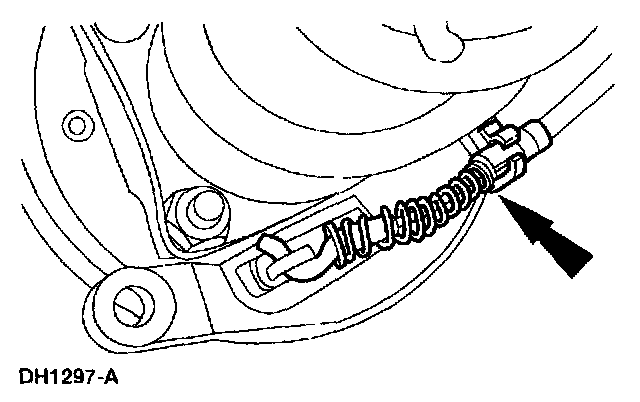

4. Disconnect the parking brake cable and conduit.

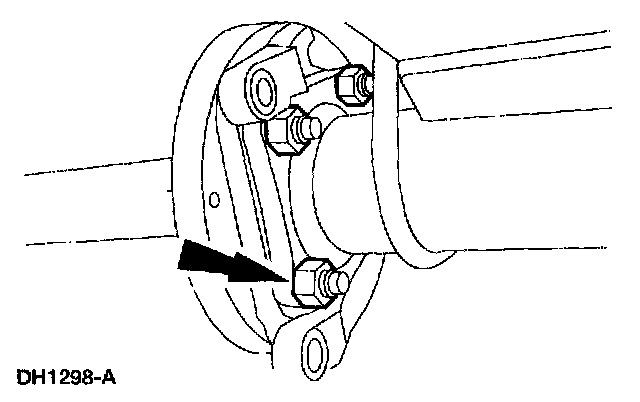

5. Remove the adapter nuts.

Installation

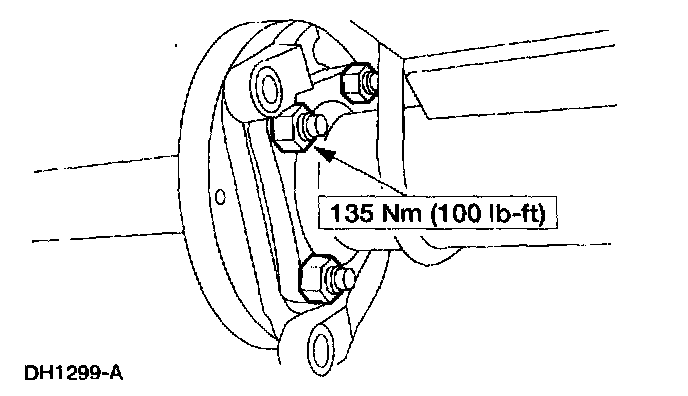

1. Follow the removal procedure in reverse order.
