Brake Caliper Anchor Plate

Brake Caliper Anchor Plate - E-350

Removal
1. Remove the brake pads.

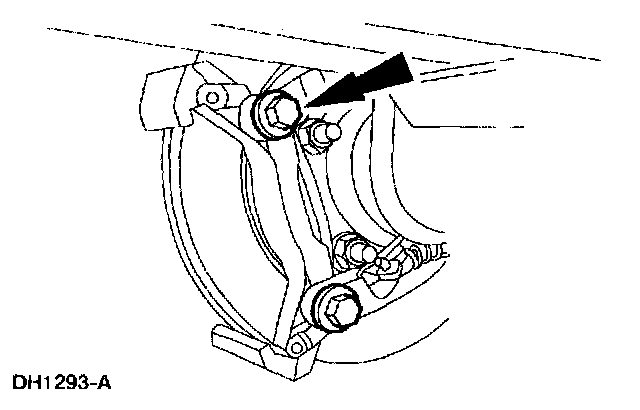

2. Remove the anchor plate bolts and remove the rear disc brake caliper anchor plate.

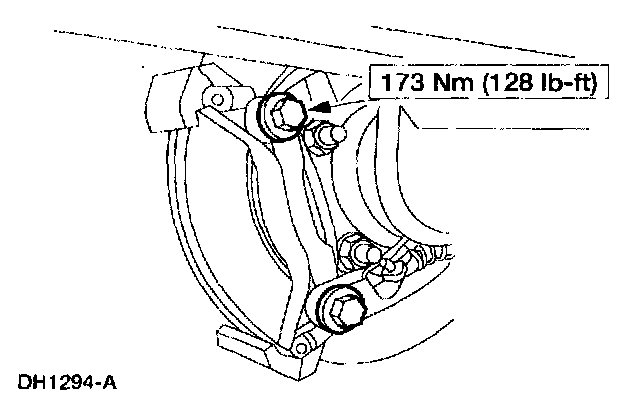

Installation





1. Follow the removal procedure in reverse order.
