EGR Tube: Service and Repair

REMOVAL
1. Remove the engine cover.

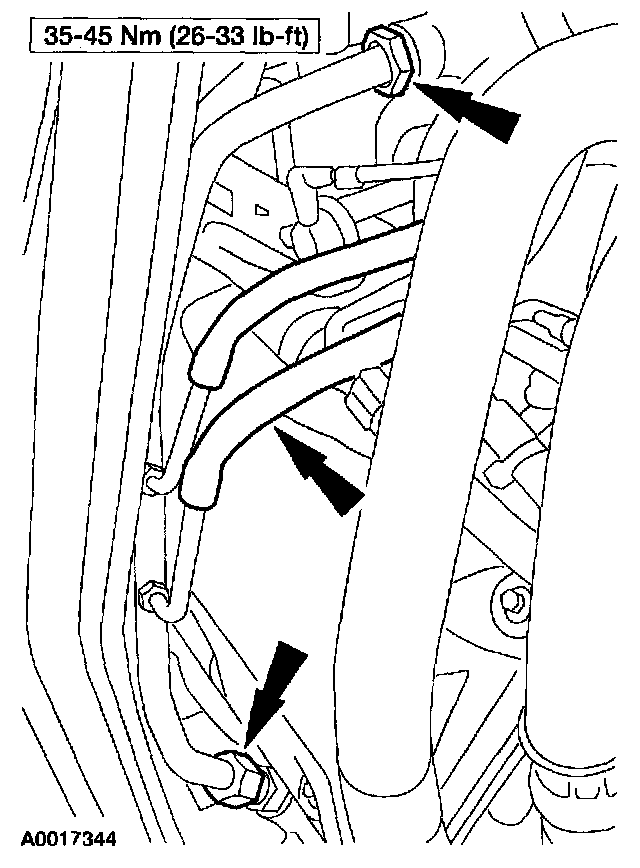

2. Remove the Exhaust Gas Recirculation (EGR) valve tube.
^ Disconnect the upper and lower fittings.
^ Disconnect the two hoses.
^ Remove the tube.

INSTALLATION
1. To install, reverse the removal procedure.
