2-3

Removal
1. Remove the main control valve body.

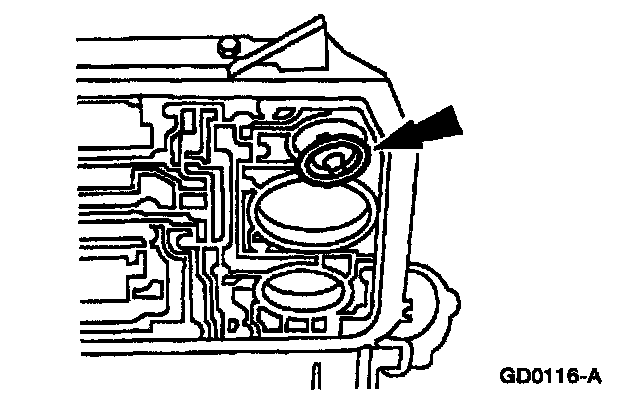

2. Remove the 2-3 accumulator piston retainer.





3. Remove the accumulator piston and spring.

Installation
1. Install the 2-3 accumulator assembly.





1 Install the accumulator piston.
2 Install the accumulator piston spring.
3 Install the accumulator spring retainer.

2. Install the main control valve body.
