Home >> Ford Truck >> 2000 >> Econoline E250 3/4 Ton V6-4.2L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Valve >> Locations

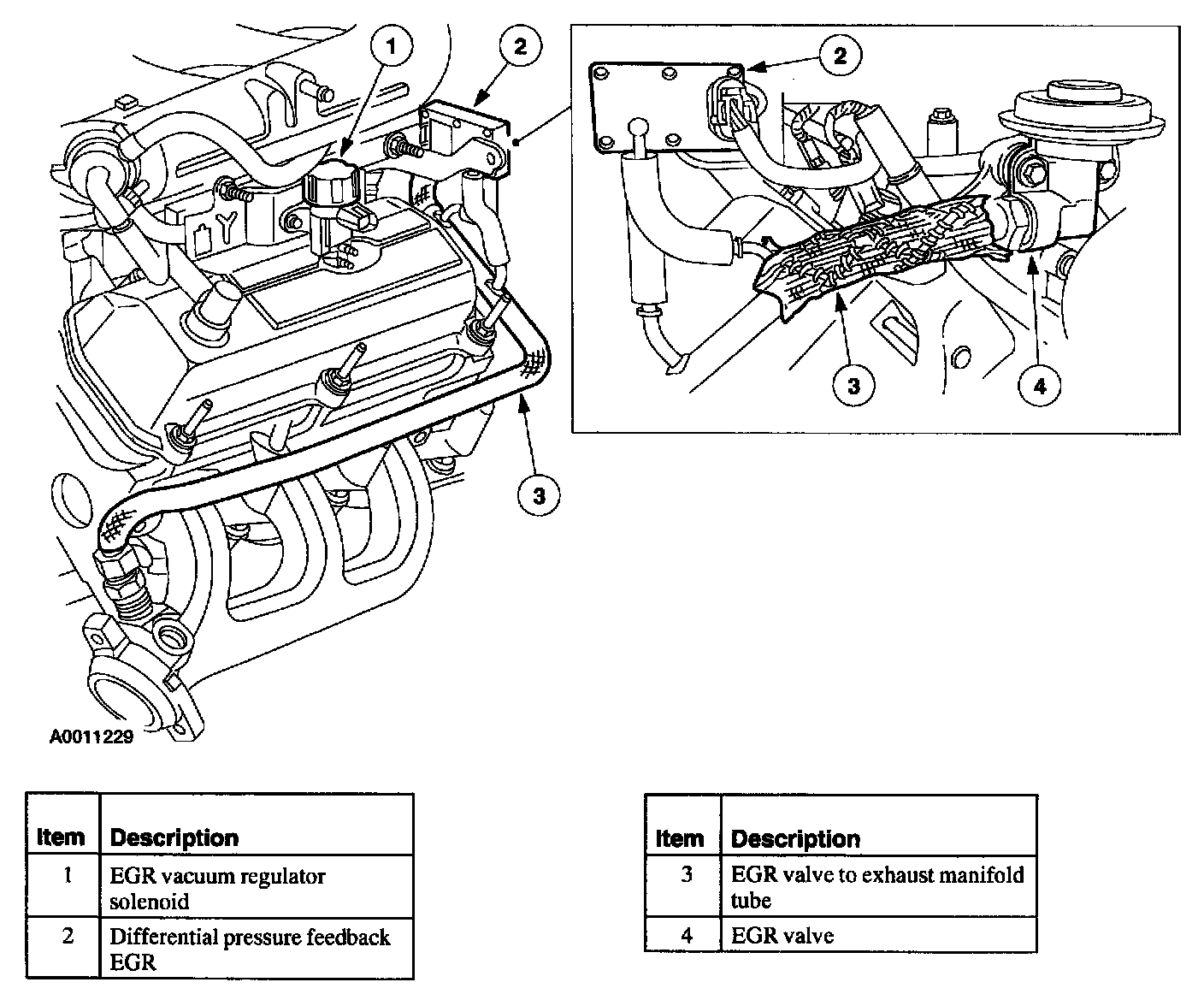

EGR Valve: Locations

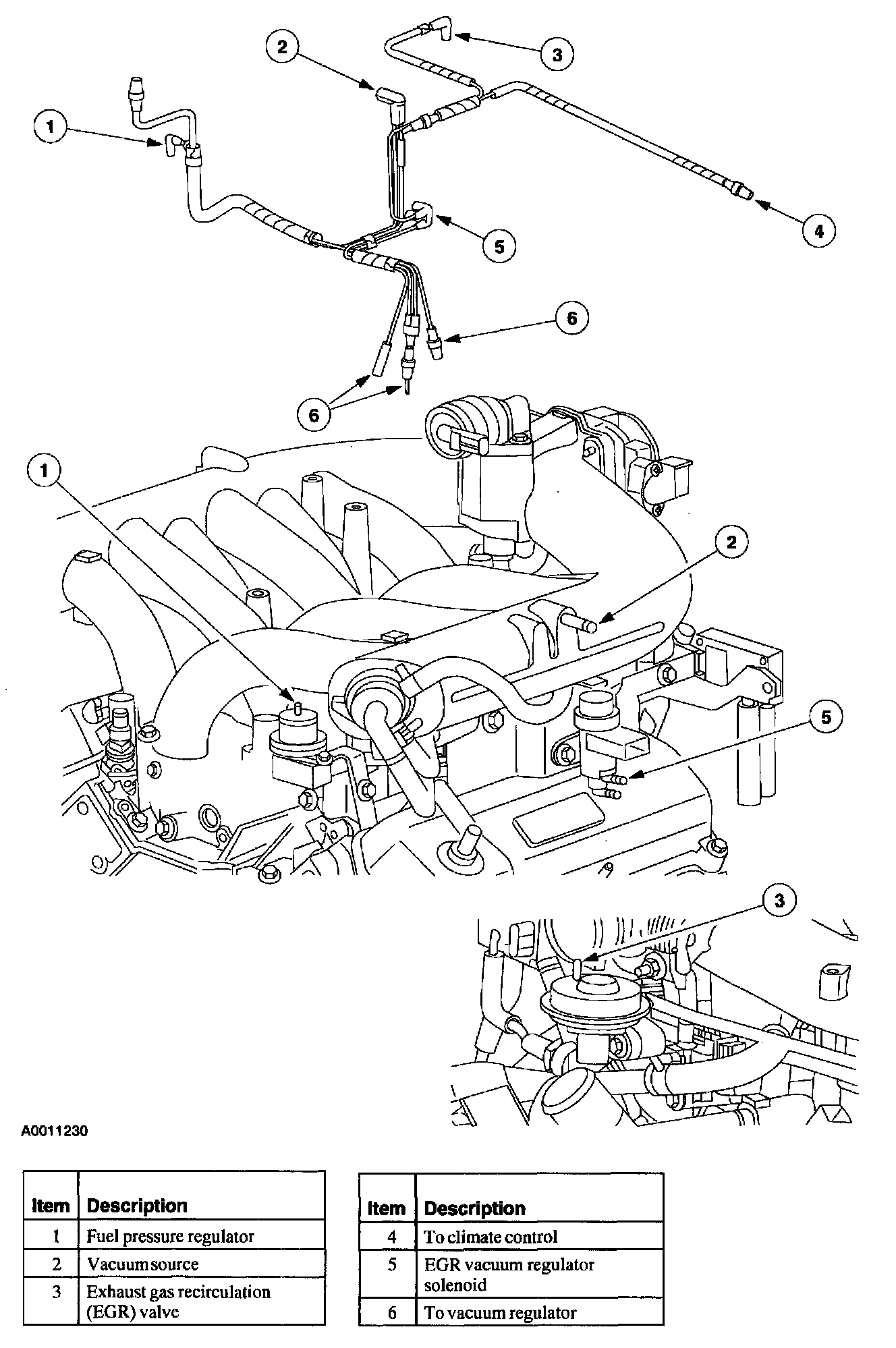

Emission System Vacuum Harness:
