Evaporative System Service Port: Service and Repair

REMOVAL

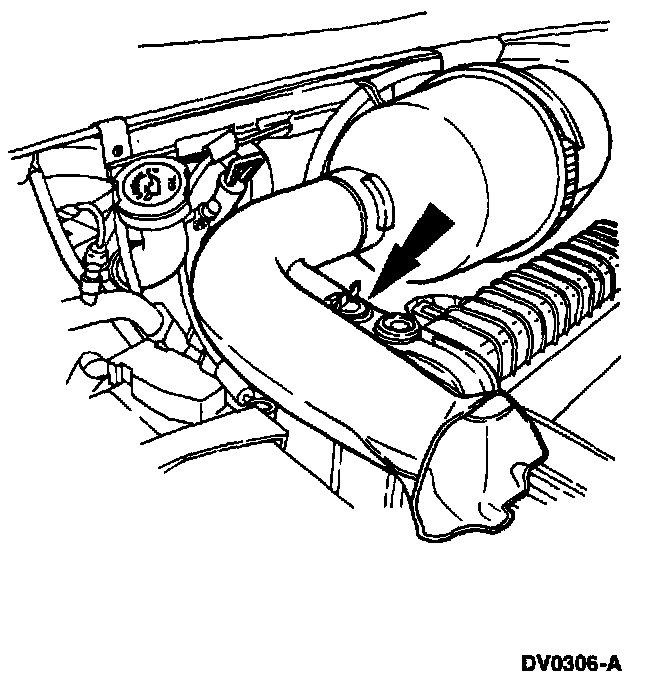

1. Remove the air cleaner inlet tube.

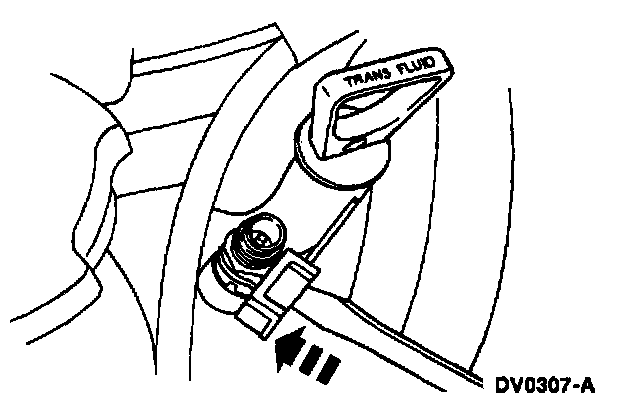

2. Insert a small screwdriver into the locking mechanism on the evaporative emission test port retainer (the protective cap can be removed for easier access).
3. Open the attaching clip and remove it from the transmission fluid level tube assembly.
4. Pull the evaporative emission test port tube loose from the clip.

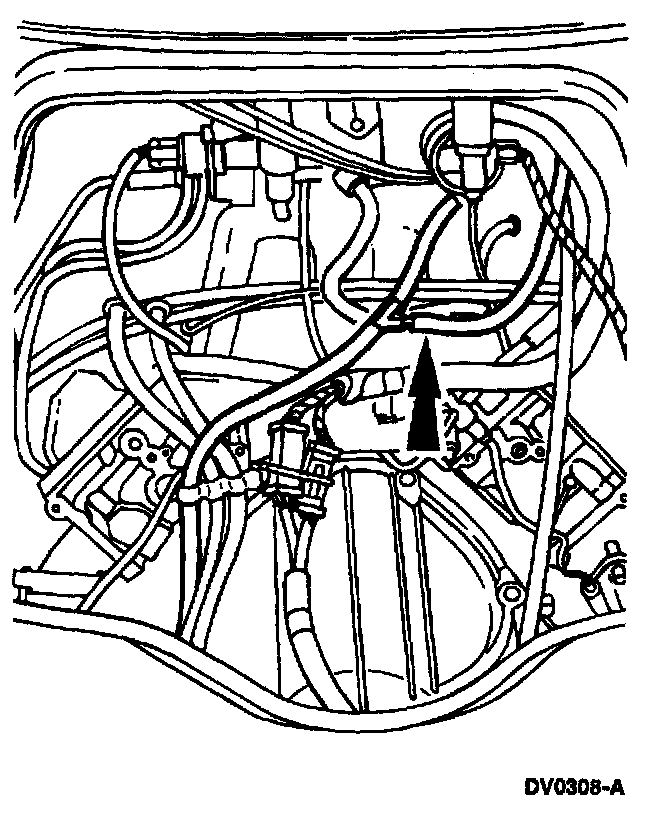

5. Remove the inside engine cover and disconnect the evaporative emission test port tube from the vacuum connection.

INSTALLATION
1. To install, reverse the removal procedure.
^ Carry out the evaporative emission system leak test. For additional information, refer to Evaporative Emission system Leak Test. Evaporative Emission System Leak Test
^ Carry out the evaporative emission repair verification drive cycle. For additional information, refer to Evaporative Emission Repair Verification Drive Cycle. Service and Repair
