Home >> Ford Truck >> 2000 >> Econoline E250 3/4 Ton V6-4.2L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Evaporative Check Valve >> Locations

Evaporative Check Valve: Locations

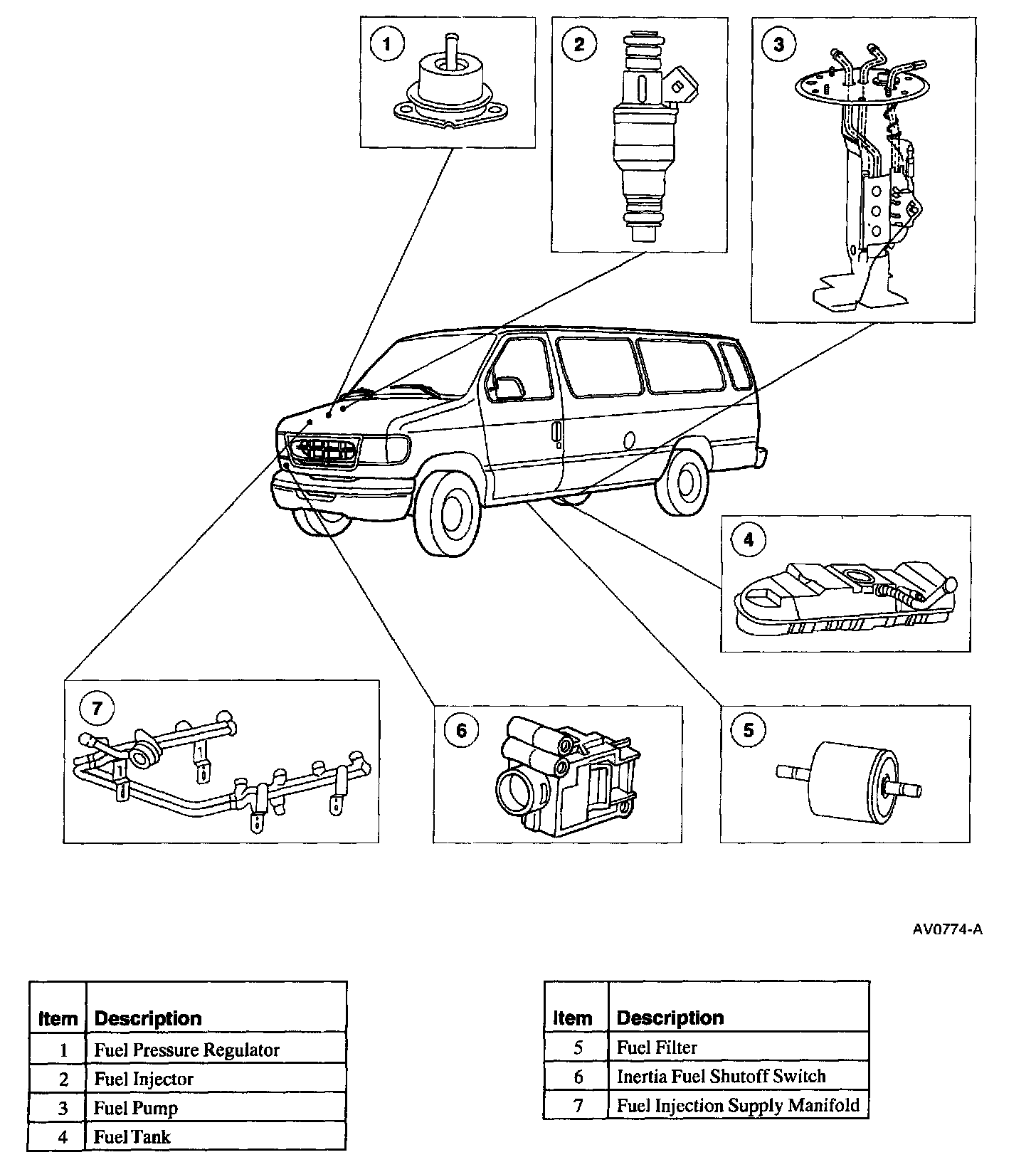

Fuel System Component Location - Midship Fuel Tank:



Component Location - Gasoline:
