Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the air cleaner assembly. For additional information, refer to Fuel Delivery and Air Induction.
3. Remove the accelerator control snow shield.

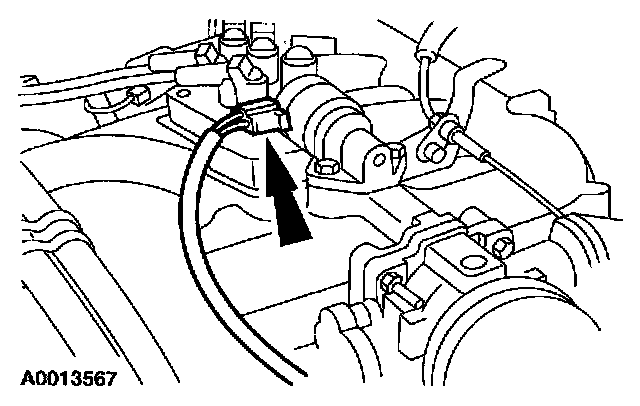

4. Disconnect the Idle Air Control (IAC) Valve electrical connector.







5. Remove the two bolts and the IAC valve.

INSTALLATION
1. To install, reverse the removal procedure.
