Tail Lamp: Service and Repair

REMOVAL

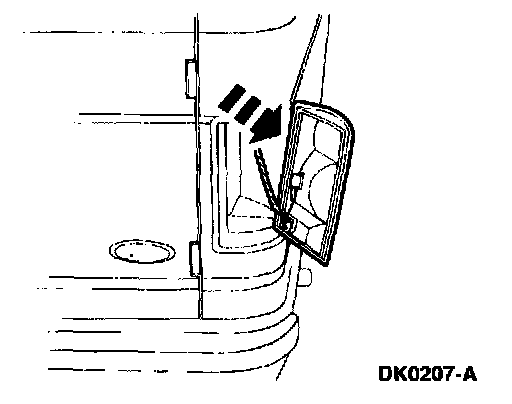

NOTE: RH shown; LH similar.







1. Remove the rear lamp screws.







2. Pull the rear lamp forward.
3. Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
