Blower Motor Resistor: Service and Repair

REMOVAL
1. If equipped, remove the third, fourth, and fifth bench seats as necessary; refer to: Seats.
2. If equipped, remove the trim panels. [1][2]Blower Motor Resistor Service and Repair.
^ Remove the left center bolster trim panel.
^ Remove the quarter trim rear upper panel.
^ Remove the lower rear body side trim panel.







3. Disconnect the heater blower motor switch resistor connector.

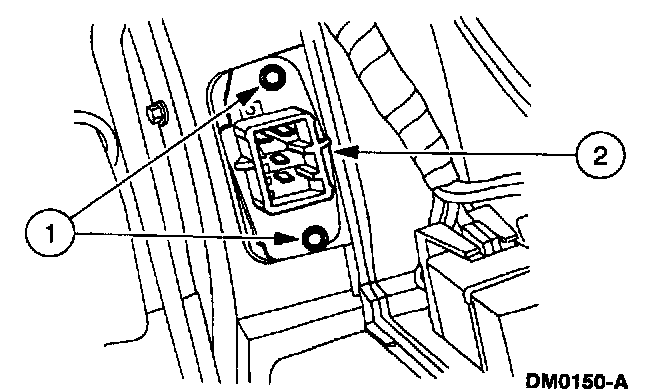

4. Remove the heater blower motor switch resistor.
1 Remove the screws.
2 Remove the heater blower motor switch resistor.

INSTALLATION
1. To install, reverse the removal procedure.
