Power Door Lock Switch: Testing and Inspection

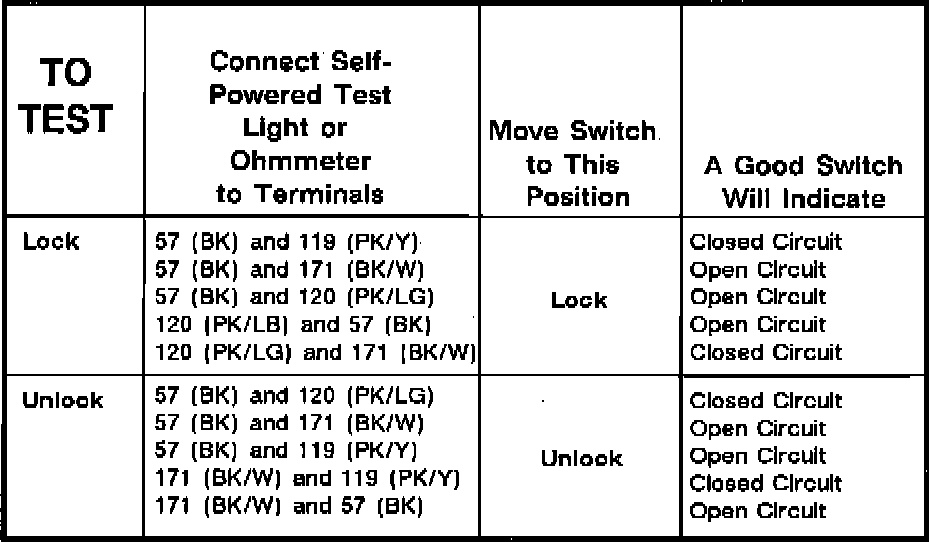

Component Testing Procedure:

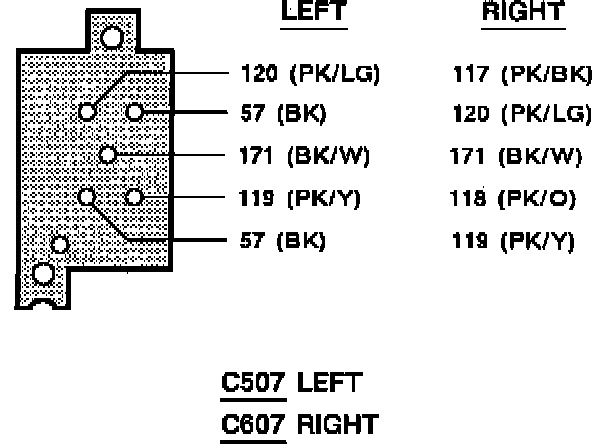

Switch Pinout Views:

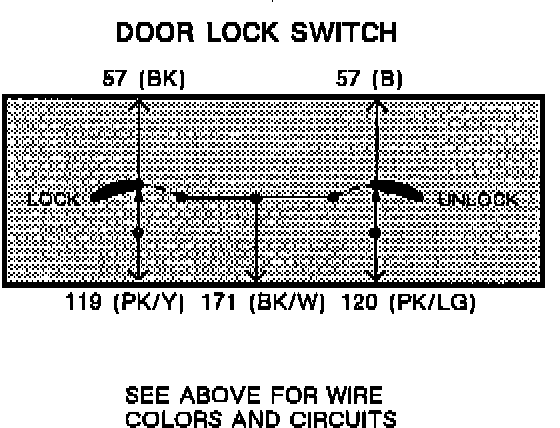

Schematic:
